Cap 09390245410 HARTING Content: 1 pc(s) Protective cap
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Protective cap
Type
09 39 024 5410
Manufacturer part #
09390245410
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Type of locking: Screw lock
- Temperature limit: -40 ... +120 °C
- Standards IEC 60664-1; IEC 61984
- Net weight: 1 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Material locking: Stainless steel
- Protection class according to IEC 60529 IP66
- Accessory type: Cover cap
- Accessories description: For device side;with mounting cord
- Design size 24 B
- Housing series: HAN® HP Direct B
- Material housing: Polycarbonate (PC)
- Colour of housing: RAL 7037 (dust gray)
- Material sealing: NBR
- Tightening torque screw locking: 4 Nm
- Packaging type
Piece
- Type
09 39 024 5410
- Product type
Protective cap
- Manufacturer part #
09390245410
- Content
1 pc(s)
- Material
Polycarbonate (PC)
- Max. temperature
120 °C
Grey
Other
Gland nut
-40-120 °C
Other
TRUE
IP66
TRUE
Documents & Downloads
Datasheet
Datasheet 3005499 Cap 09390245410 HARTING Content: 1 pc(s) Protective cap
Datasheet 3005499 Cap 09390245410 HARTING Content: 1 pc(s) Protective cap
User & Safety Instructions
User & Safety Instructions 3005499 Cap 09390245410 HARTING Content: 1 pc(s) Protective cap
Description

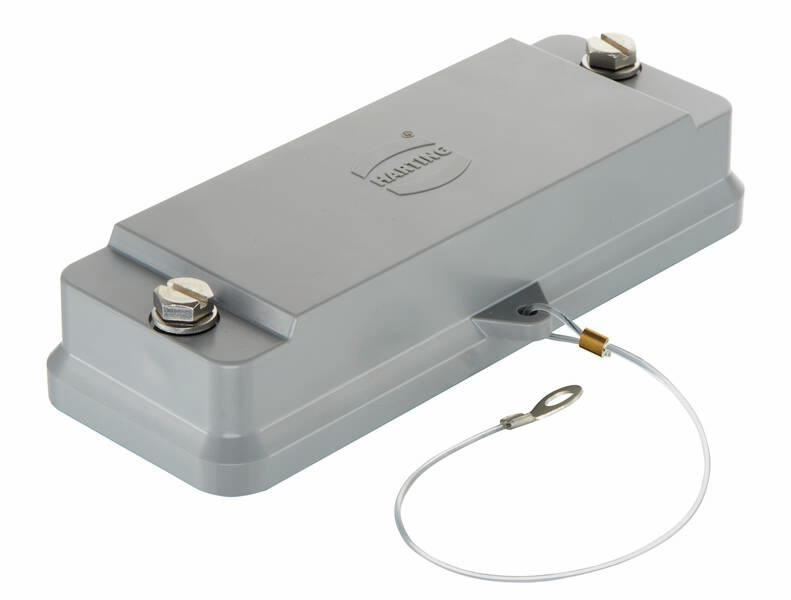

Cover cap, for device side, with fixing cord, size: 24 B, screw locking, Stainless steel, material housing: polycarbonate (PC)
