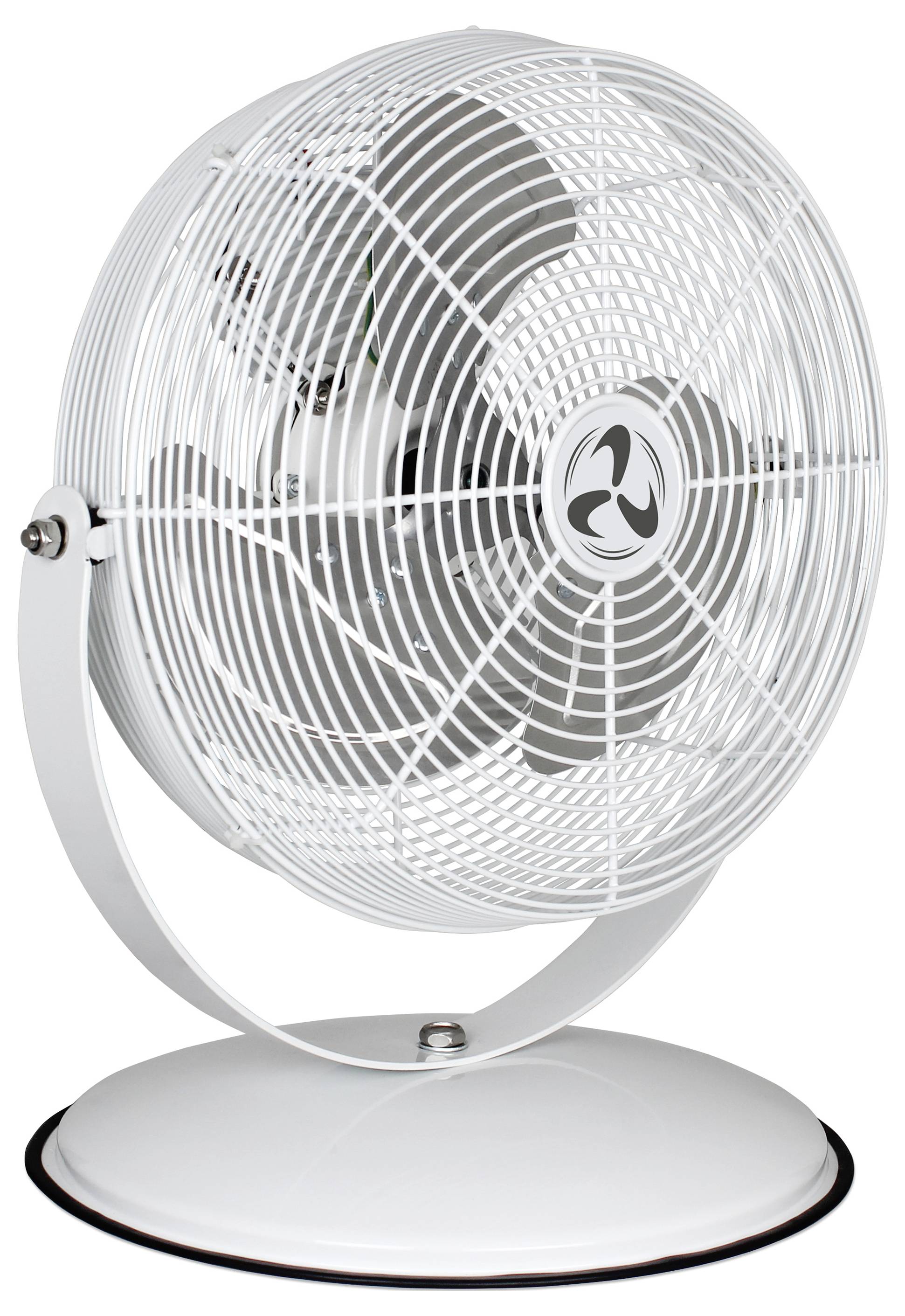

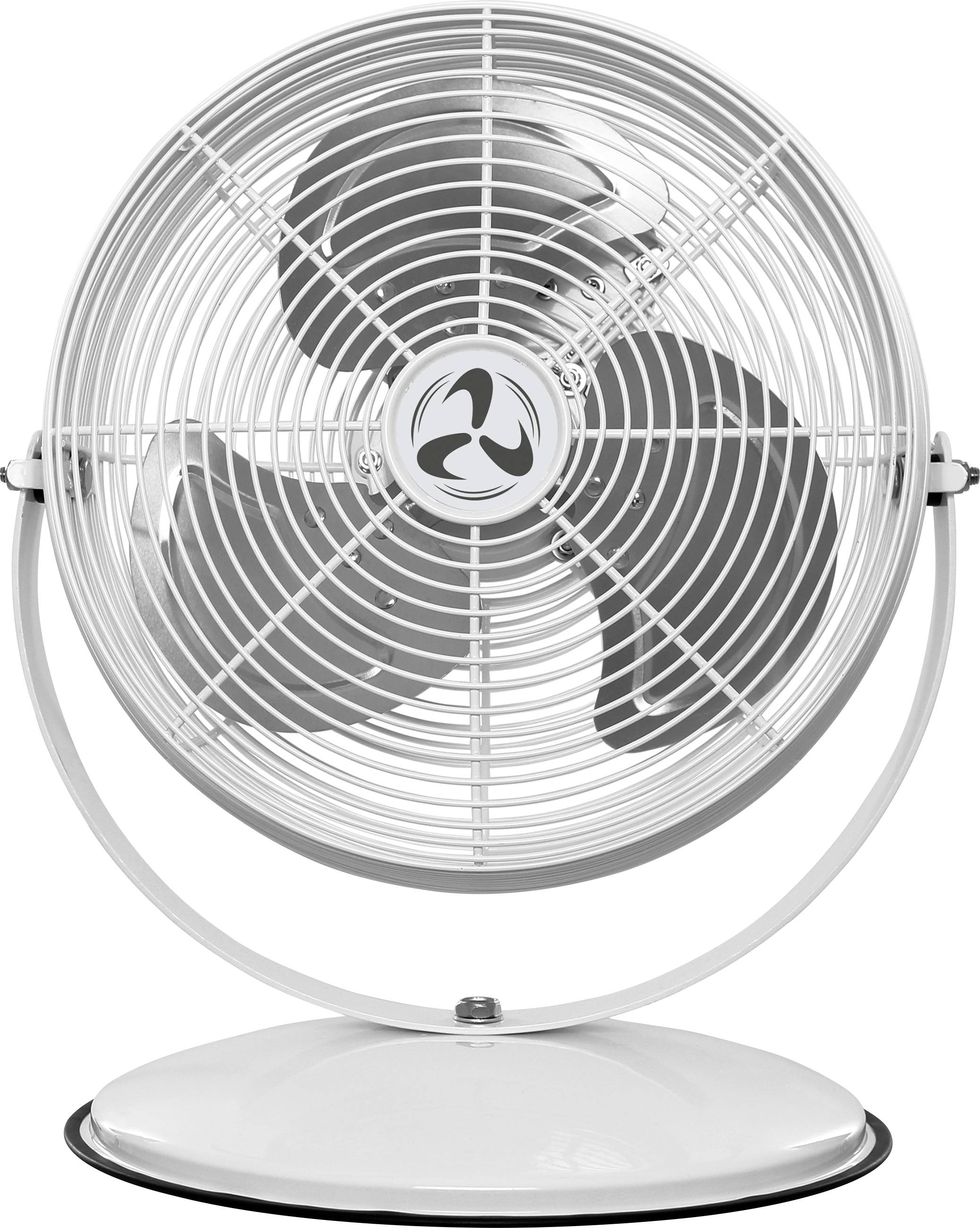

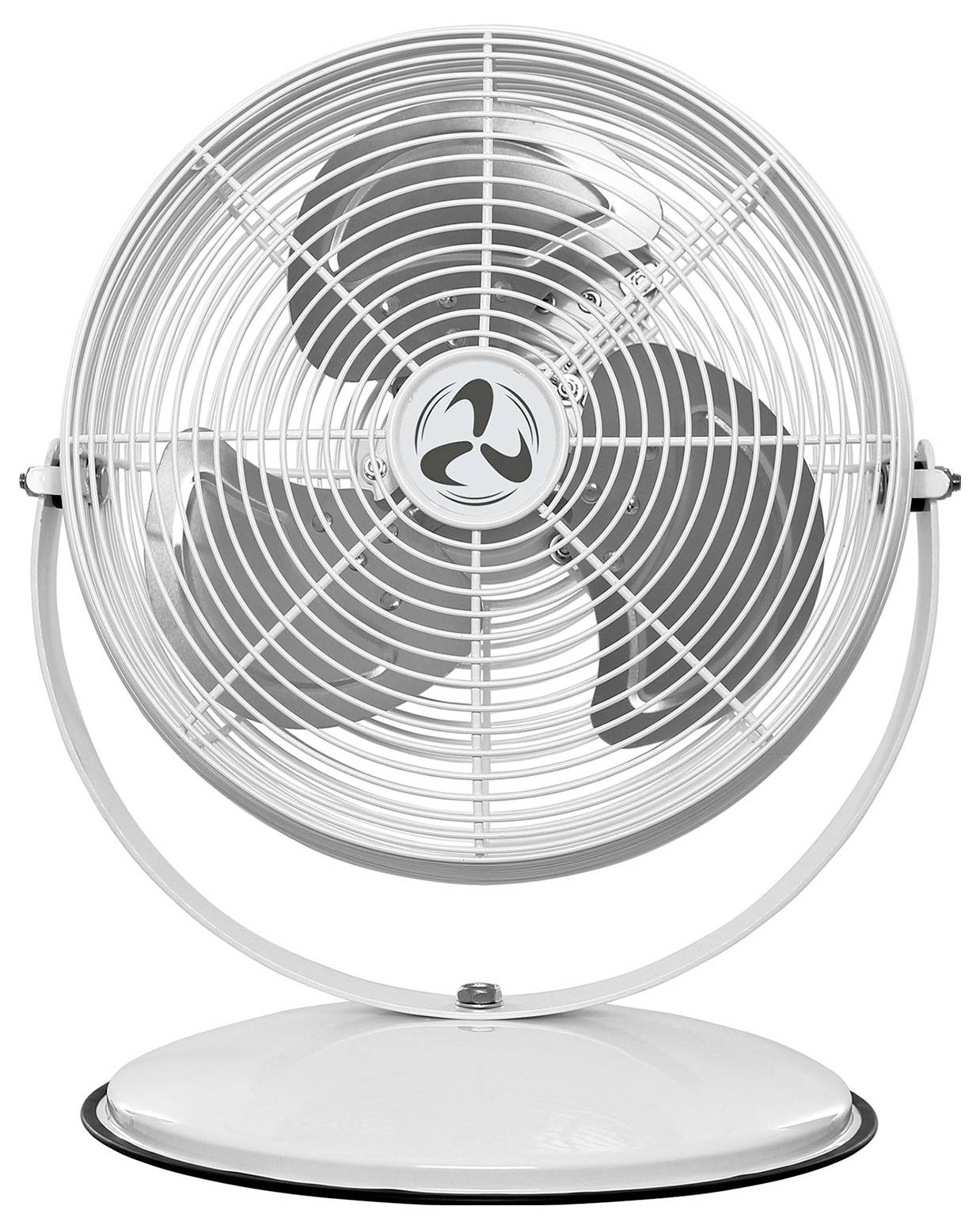

CasaFan DESK2PROTECT IP54 SL Desk fan 43 W (Ø x H) 350 mm x 445 mm White Height-adjustable
EAN:
Part number:
Item no:
Highlights & Details
CasaFan DESK2PROTECT SL white
- ´- High air flow fan with 3 speed levels.
- - Flexible adjustable: Adjustable height with vertical tilt.
- - Protection class IP54 Ideal for demanding applications.
- - Robust design with 2.5 m lead (H07RN-F G 3×1.0 mm²) and safety plug.
Technical specifications

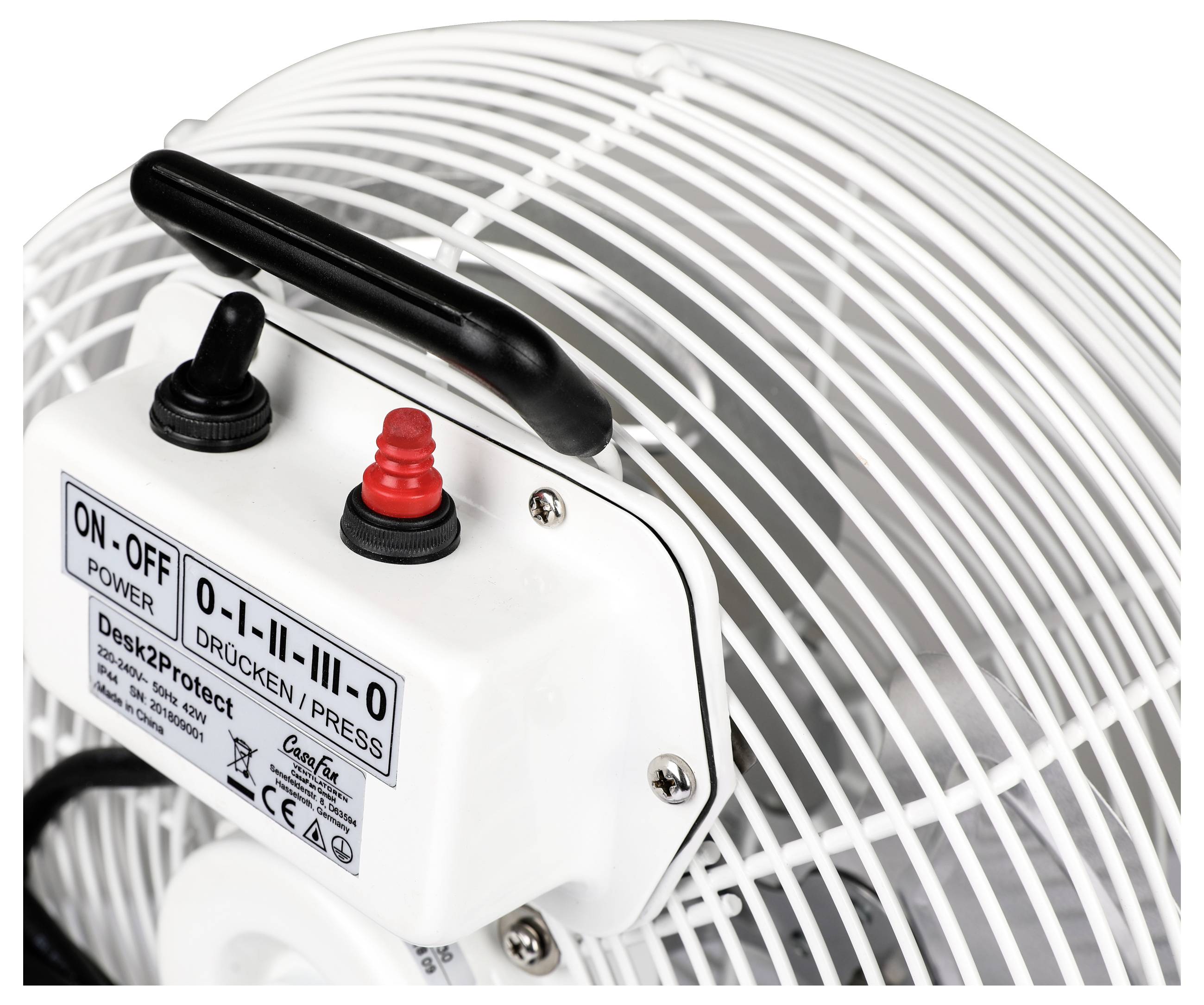

- With 2-pin power switch
- Product type
Desk fan
- Operating voltage
230 V
- Switching stages
3
- (Ø)
350 mm
43 W
- Air flow rate
2.250 m³/h
- Noise emission
40.8 dBa
- Grid diameter
32.5 cm
- Wing colour
Aluminium
- Case colour
White
- Fan features
Height-adjustable
- Dim
(Ø x H) 350 mm x 445 mm
- Weight
4952 g
- Feed length
2.5 m
n.rel.
- Rotational speed (max.)
1360 U/min
- Speed levels
3
- Factory colour
White
- Max. power consumption
43 W
- Air discharge
2250 m³/h
- Material
Steel
Aluminium
- Inclination
130°
- Height
445 mm
- Length
350 mm
- Depth
160 mm
- Service value
1.00 (m³/min)/W
- Height-adjustable
No
- Width
325 mm
IP44
- Material (details)
Metal
- Type
Household lamellae fans
- Power consumption (ON)
43 W
- Power supply (details)
220–240 V
- UKCA
not relevant
- Height adjustment
no
- Number of speeds
3
- Handle(s)
yes
- Number of fan blades
3
- Tilt angle
130°
- Cord length
2.5 m
- Tilt adjustment
yes
- Auto oscillating
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3450959 CasaFan DESK2PROTECT IP54 SL Desk fan 43 W (Ø x H) 350 mm x 445 mm White Height-adjustable
Description
DESK2PROTECT SL; CasaFan Safeline high performance table/top-mounted fan for commercial use, 43 W, 220-240 V~50 Hz, Basket 350 mm, Protection type IP44, 2,420 m³/h gem EN 60879, protective grille, housing, frame and pedestal steel with double anti-corrosion paint, color white, 2-pin mains switch, 3 stages by means of encapsulated pressure switch, vertical inclination of 130° adjustable, stable design with carry handle, encapsulated, ball-bearing motor, cable 2.5m rubber hose cable for high mechanical load H07RN-F 3 x 1.0 mm² with safety plug, Certified according to Machinery Directive 2006/42/EC Part 1 for use in the commercial sector
This text is machine translated.
This text is machine translated.
Scope of delivery
- - Table fan
- - Mounting hardware
- - Installation and operating instructions
