Name: CasaFan ECO PLANO II 132 WE-WE WiFi Ceiling fan 28 W (Ø x H) 132 cm x 160 mm White incl. remote control, Timer, Winter-p
Brand: CasaFan
SKU: 3450944

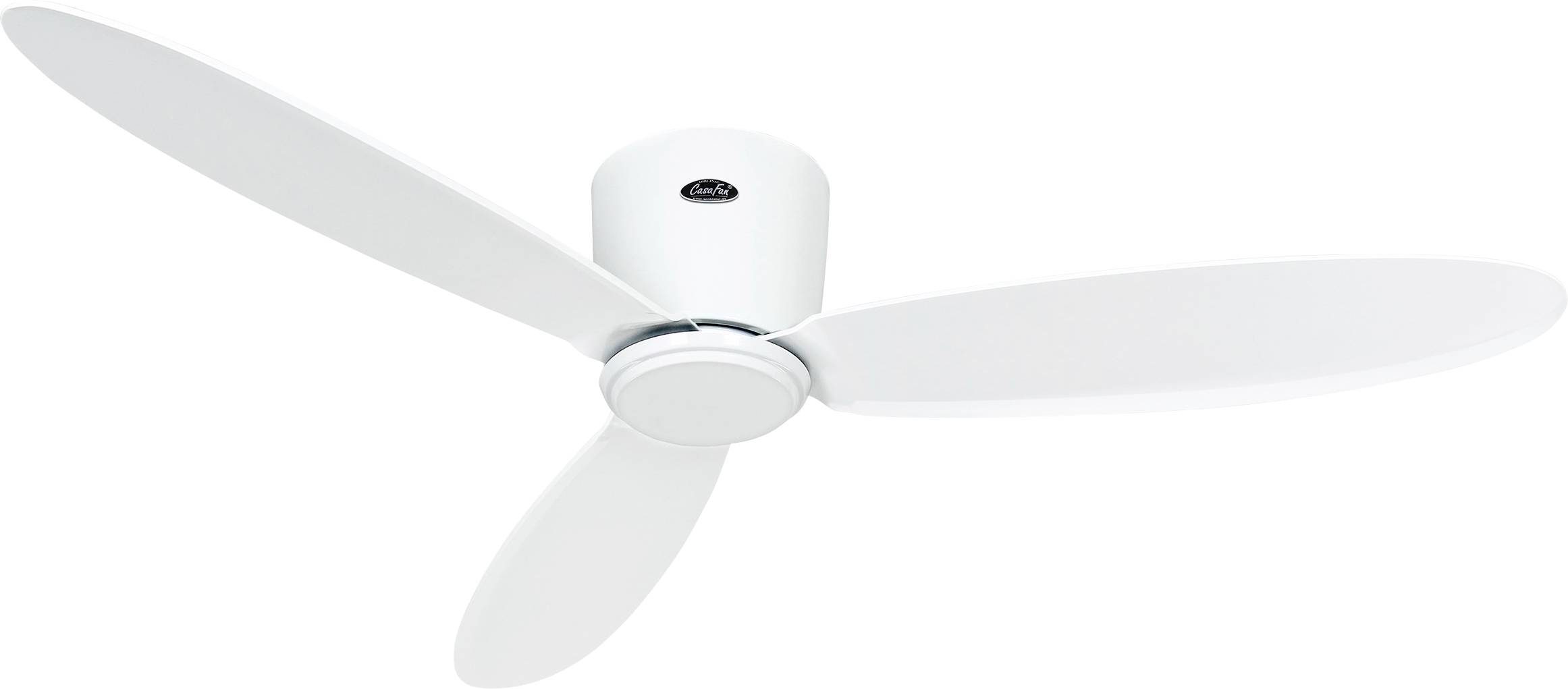

A white three-blade ceiling fan mounted on the ceiling, showing a modern design with a simple, sleek appearance.

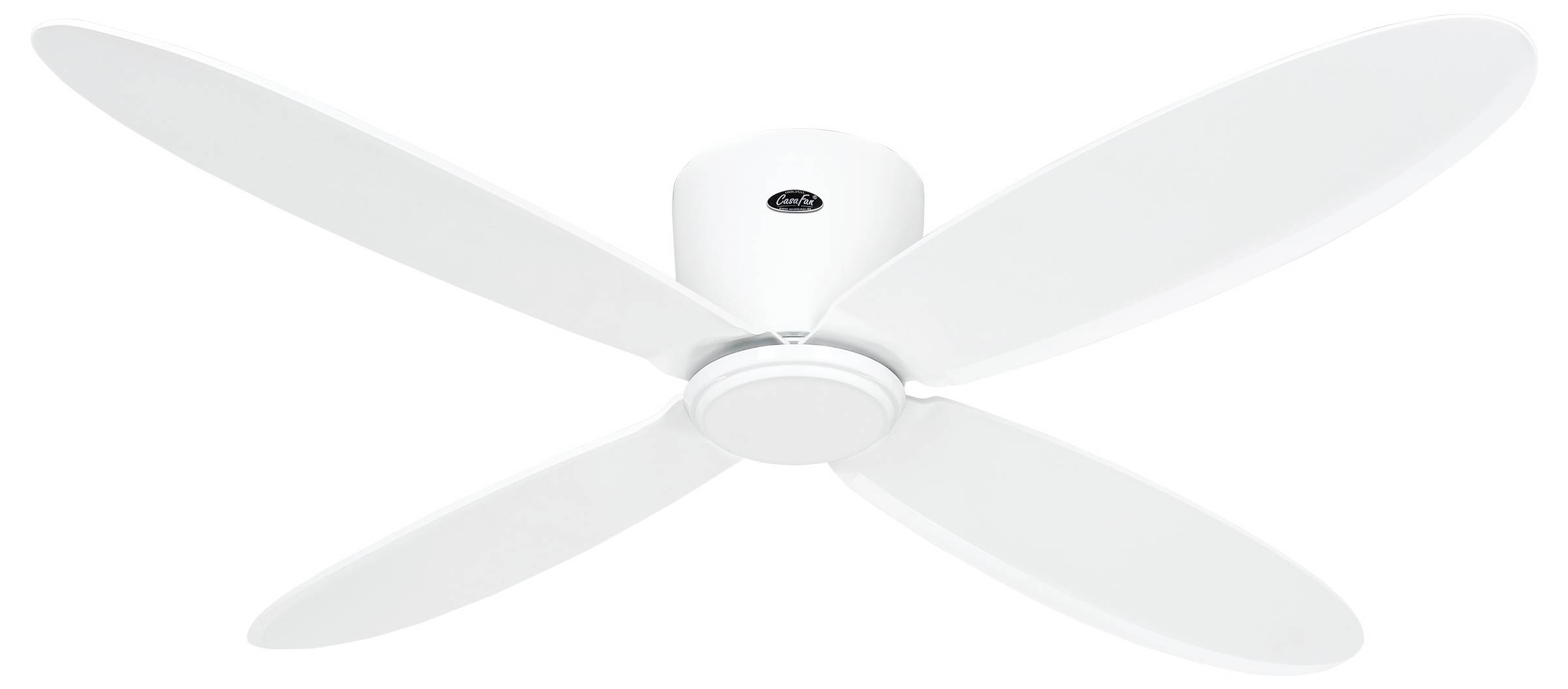

A white ceiling fan with four blades, mounted on a white ceiling.

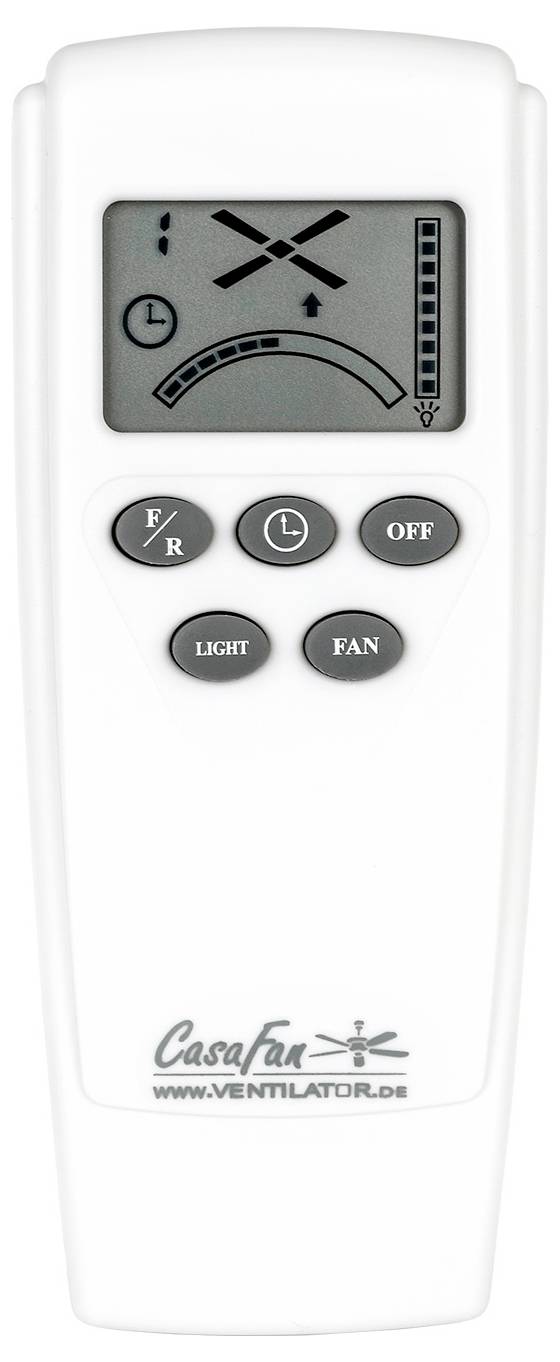

Remote control for a ceiling fan with buttons including 'F/R', 'LIGHT', 'FAN', 'OFF', and a digital display showing fan settings.

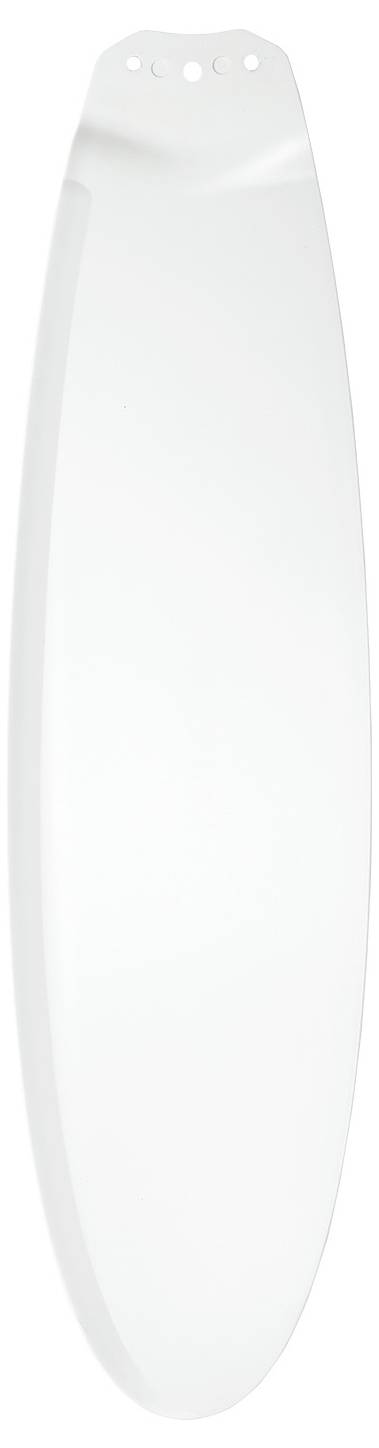

A sleek, white ceiling fan blade with a smooth surface and rounded edges, featuring two mounting holes at the top.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

CasaFan ECO Plano II 132 WE-WE WiFi blade colored white

´- Extra flat design also for low and straight ceilings
- Energy-saving EC/DC motor technology.
- Comfortable operation by remote control or Wi-Fi - 6 levels. An optional 0-10V controller is available as an accessory.
- Can also be used as a single light source with optional lamp.

Technical specifications

For rooms up to 22 m²

Product type: Ceiling fan

Operating voltage: 230 V

Switching stages: 6

(Ø): 132 cm

: 28 W

Air flow rate: 7.594 m³/h

Rotational speed: 207 U/min

Noise emission: 30.6 dBa

Grid diameter: 132 cm

Wing colour: White

Case colour: White

Fan features: incl. remote control
Timer
Winter-proof
App-controlled

Dim: (Ø x H) 132 cm x 160 mm

Weight: 6361 g

: n.rel.

Rotor blades: 4

Reversible rotation direction: Yes

Rotational speed (max.): 207 U/min

Speed levels: 6

Max. power consumption: 28 W

Air discharge: 7594 m³/h

Material: Steel
Plastic

Compatible with: CasaFan

Height: 160 mm

Length: 1320 mm

Depth: 1320 mm

Service value: 4.5 (m³/min)/W

Power supply (LOV): mains-powered

Height-adjustable: No

Width: 1320 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3450944 CasaFan ECO PLANO II 132 WE-WE WiFi Ceiling fan 28 W (Ø x H) 132 cm x 160 mm White incl. remote control, Timer, Winter-p

Description

With its extra-flat design the CasaFan Eco Plano II Ideal is for rooms with low, straight ceilings. It blends in harmoniously with modern and classic furnishings. Classic wooden wings or plastic wings in different colors and designs enable an individual design. The quiet, energy-efficient motor provides for a pleasant air circulation. Control via remote control or APP offers highest comfort - perfect for home or office.

This text is machine translated.
