CasaFan FLAT 103-III MG-EA/BU Flügel Eiche antik/Buche Ceiling fan 65 W (Ø x H) 103 cm x 164 mm Brass (brushed) Reversib
EAN:
Part number:
Item no:
Highlights & Details

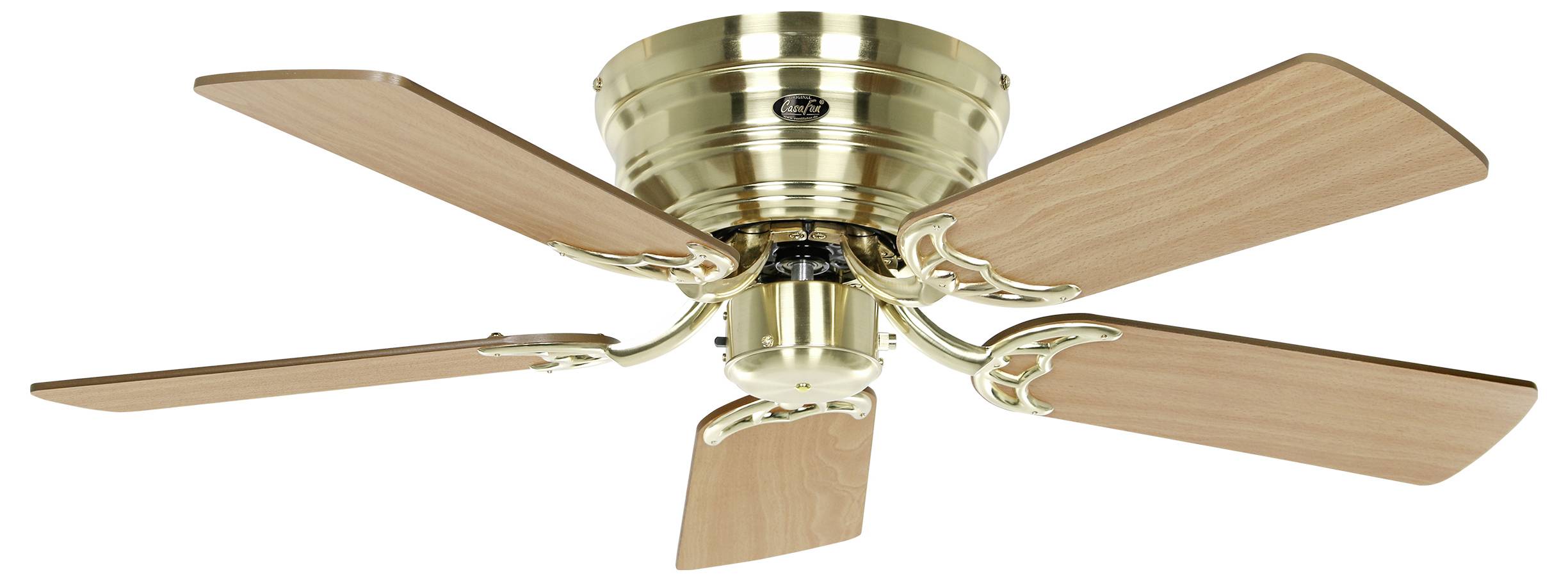

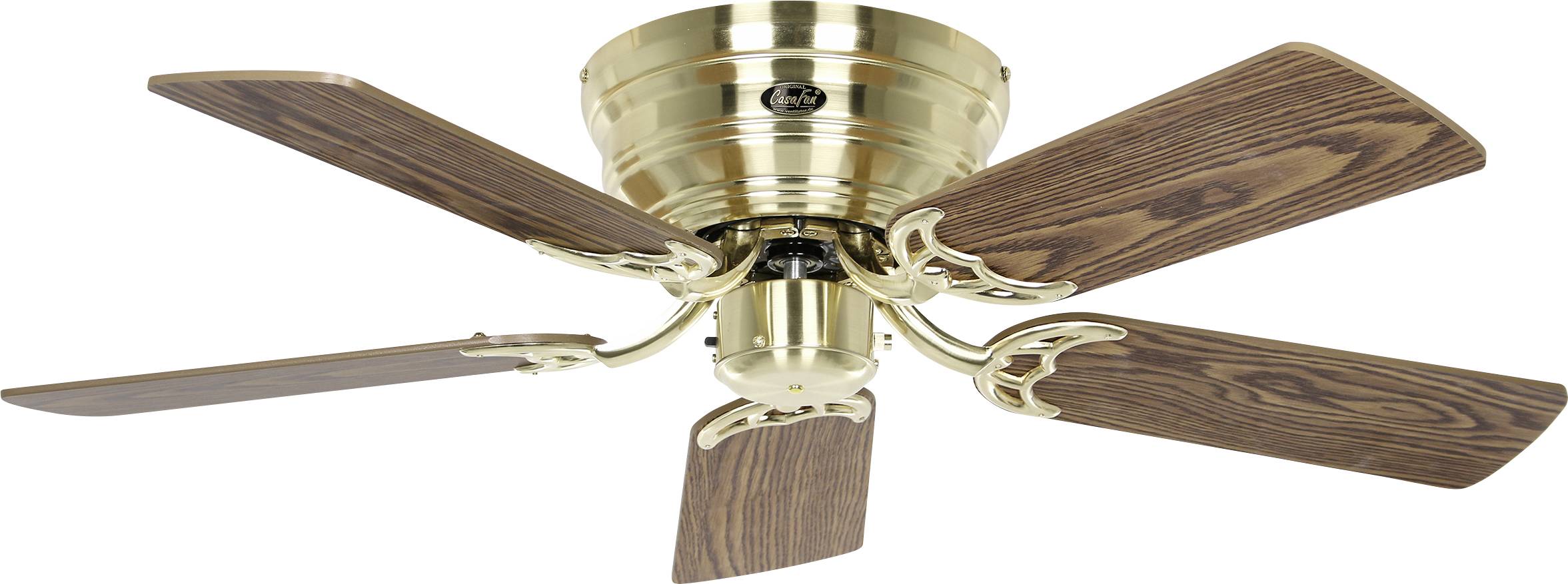

CasaFan FLAT 103-III MG-EA/BU wings Oak antique/beech

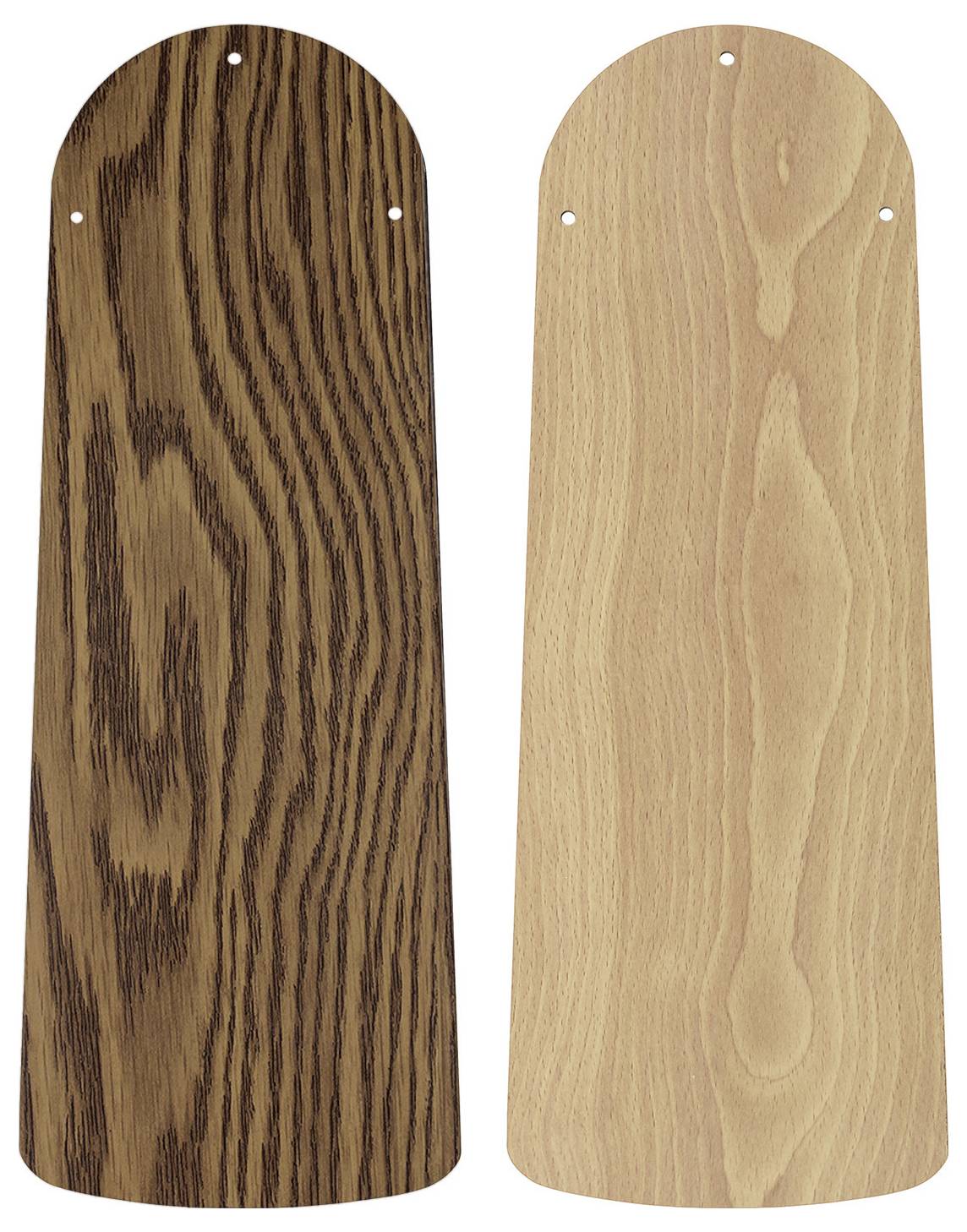

- ´- 5 reversible wings of wood with two different decorations.
- - Flat design perfect for rooms with low, straight ceilings
- - 3-stage AC motor with summer/winter operation.
- - Ideal for living, sleeping or working spaces.
Technical specifications
- For rooms up to 11 m²
- Product type
Ceiling fan
- Operating voltage
230 V
- Switching stages
3
- (Ø)
103 cm
65 W
- Air flow rate
7.492 m³/h
- Rotational speed
225 U/min
- Noise emission
31.7 dBa
- Grid diameter
103 cm
- Wing colour
Antique oak
Beech
- Case colour
Brass (brushed)
- Fan features
Reversible blades
Winter-proof
- Dim
(Ø x H) 103 cm x 164 mm
- Weight
5986 g
n.rel.
- Rotor blades
5
- Reversible rotation direction
Yes
- Rotational speed (max.)
225 U/min
- Speed levels
3
- Max. power consumption
63 W
- Air discharge
7492 m³/h
- Material
Steel
Wood
- Compatible with
CasaFan Classic Flat
- Height
164 mm
- Length
1030 mm
- Depth
1030 mm
- Service value
2 (m³/min)/W
- Power supply (LOV)
mains-powered
- Height-adjustable
No
- Width
1030 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3450913 CasaFan FLAT 103-III MG-EA/BU Flügel Eiche antik/Buche Ceiling fan 65 W (Ø x H) 103 cm x 164 mm Brass (brushed) Reversib
Description
The CasaFan classic flat III is a compact, classic and functional ceiling fan that harmoniously combines design and function. With its flat design and high quality materials, it fits seamlessly into living rooms, bedrooms or work rooms up to 20 m². The smooth running AC-motor offers three speeds as well as a practical summer-/winter function via a slide switch. It is operated conveniently via a pull switch.Ideal for rooms with even ceilings.
This text is machine translated.
This text is machine translated.
Scope of delivery
- - Ceiling fan
- - Pull switch
- - Mounting hardware
- - Installation and operating instructions
