CasaFan FLAT 132-III MG-EA/BU Flügel Eiche antik/Buche Ceiling fan 69 W (Ø x H) 132 cm x 164 mm Brass (brushed) Reversib
EAN:
Part number:
Item no:
Highlights & Details

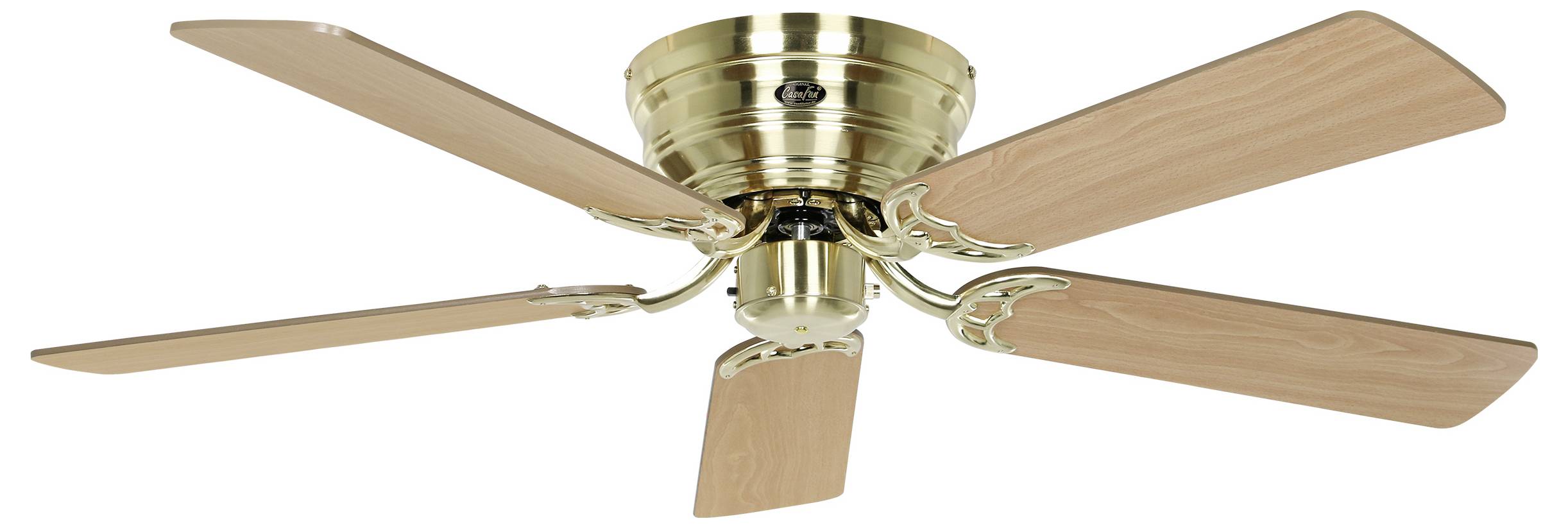

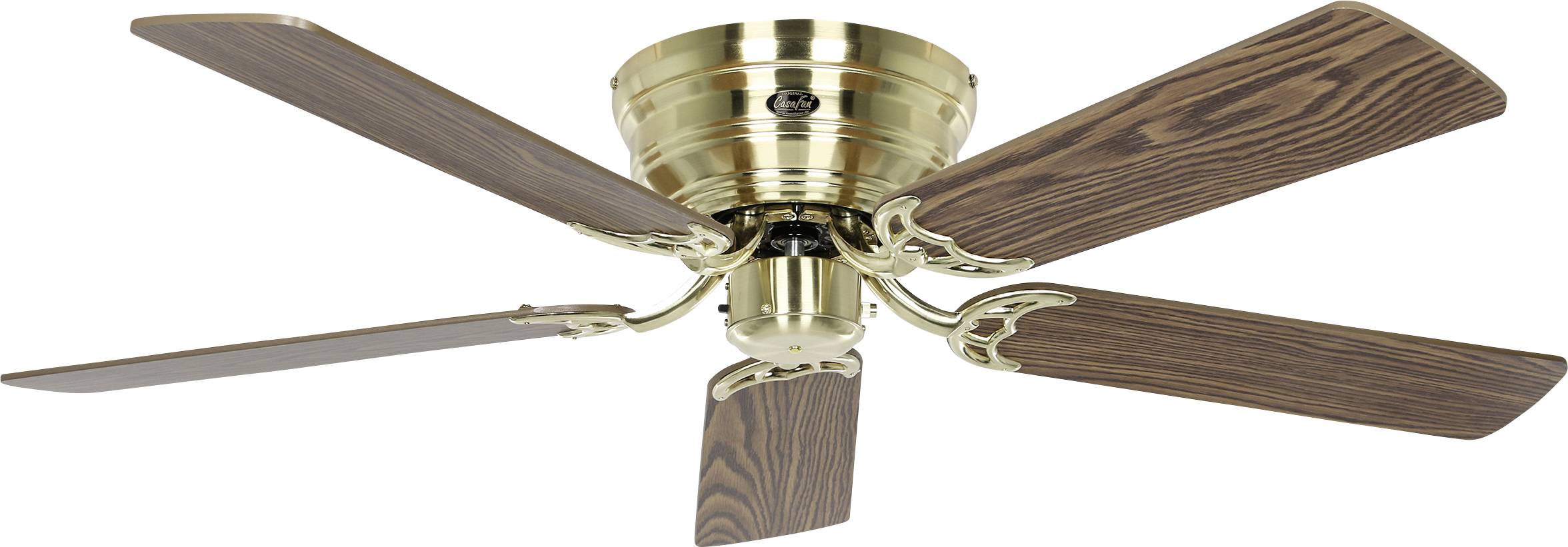

CasaFan FLAT 132-III MG-EA/BU wings Oak antique/beech

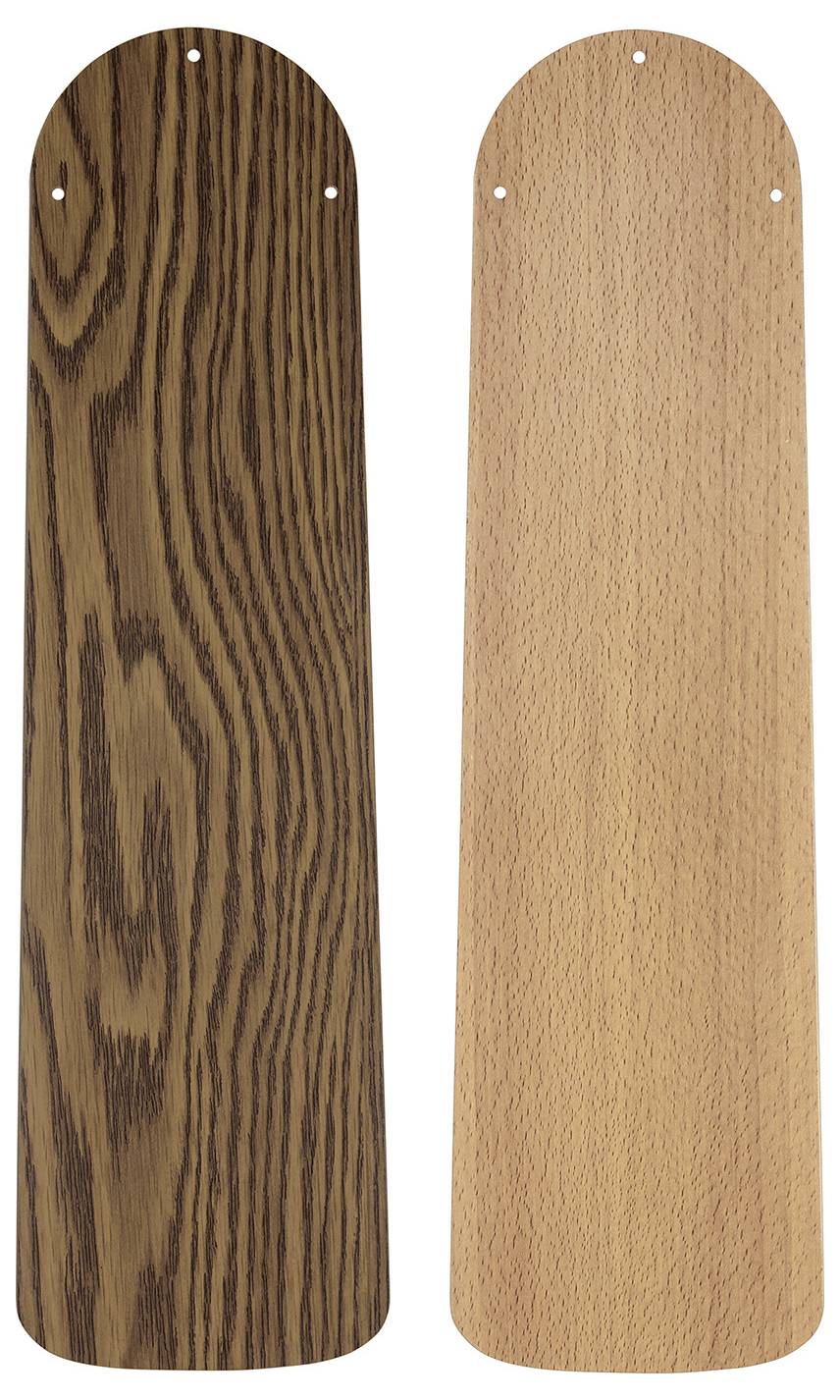

- ´- 5 reversible wings of wood with two different decorations.
- - Flat design perfect for rooms with low, straight ceilings
- - 3-stage AC motor with summer/winter operation.
- - Ideal for living, sleeping or working spaces.
Technical specifications
- For rooms up to 20 m²
- Product type
Ceiling fan
- Operating voltage
230 V
- Switching stages
3
- (Ø)
132 cm
69 W
- Air flow rate
9.382 m³/h
- Rotational speed
172 U/min
- Noise emission
29.5 dBa
- Grid diameter
132 cm
- Wing colour
Antique oak
Beech
- Case colour
Brass (brushed)
- Fan features
Reversible blades
Winter-proof
- Dim
(Ø x H) 132 cm x 164 mm
- Weight
6232 g
n.rel.
- Rotor blades
5
- Reversible rotation direction
Yes
- Rotational speed (max.)
172 U/min
- Speed levels
3
- Max. power consumption
68 W
- Air discharge
9382 m³/h
- Material
Steel
Wood
- Compatible with
CasaFan Flat
- Height
164 mm
- Length
1320 mm
- Depth
1320 mm
- Service value
2.3 (m³/min)/W
- Power supply (LOV)
mains-powered
- Height-adjustable
No
- Width
1320 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3450915 CasaFan FLAT 132-III MG-EA/BU Flügel Eiche antik/Buche Ceiling fan 69 W (Ø x H) 132 cm x 164 mm Brass (brushed) Reversib
Description
The CasaFan classic flat III is a compact, classic and functional ceiling fan that harmoniously combines design and function. With its flat design and high quality materials, it fits seamlessly into living rooms, bedrooms or work rooms up to 20 m². The smooth running AC-motor offers three speeds as well as a practical summer-/winter function via a slide switch. It is operated conveniently via a pull switch.Ideal for rooms with even ceilings.
This text is machine translated.
This text is machine translated.
Scope of delivery
- - Ceiling fan
- - Pull switch
- - Mounting hardware
- - Installation and operating instructions
