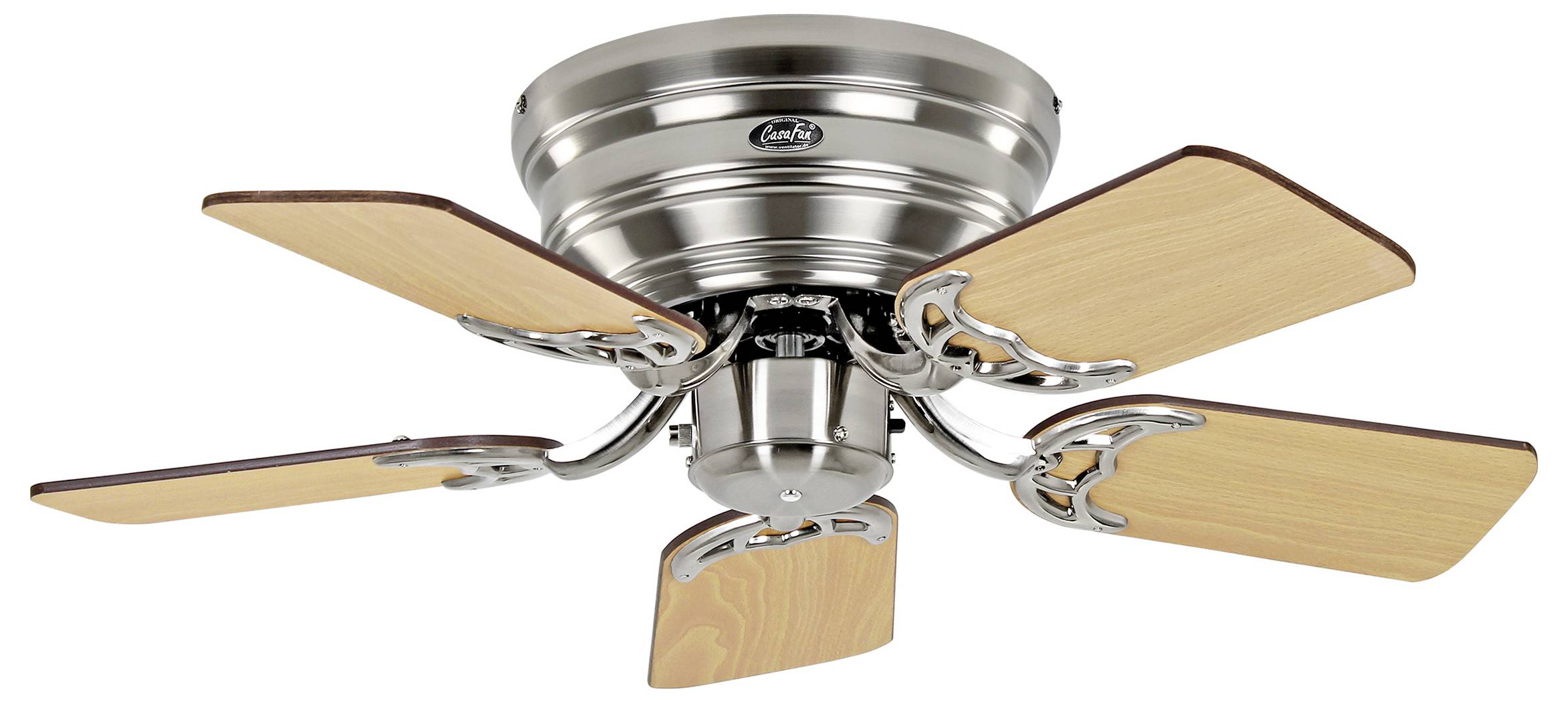

CasaFan FLAT 75-III BN-NB/BU Flügel Nussbaum/Buche Ceiling fan 61 W (Ø x H) 79 cm x 164 mm Chrome (brushed) Reversible b
EAN:
Part number:
Item no:
Highlights & Details
CasaFan FLAT 75-III BN-NB/BU/Blended walnut/beech

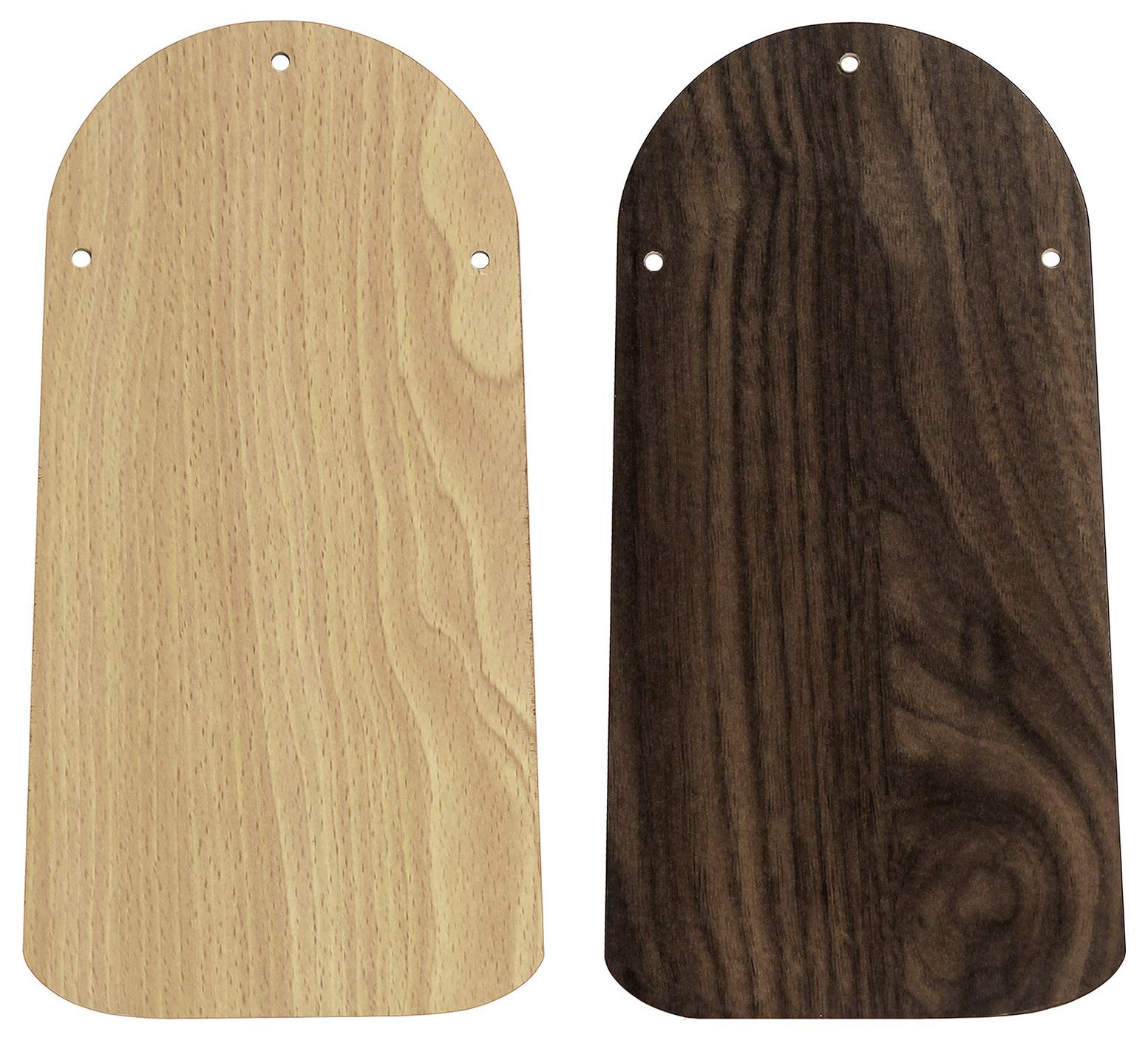

- ´- 5 reversible wings of wood with two different decorations.
- - Flat design perfect for rooms with low, straight ceilings
- - 3-stage AC motor with summer/winter operation.
- - Ideal for living, sleeping or working spaces.
Technical specifications
- For rooms up to 6 m²
- Product type
Ceiling fan
- Operating voltage
230 V
- Switching stages
3
- (Ø)
79 cm
61 W
- Air flow rate
3.431 m³/h
- Rotational speed
315 U/min
- Noise emission
27.8 dBa
- Grid diameter
79.2 cm
- Wing colour
Walnut
Beech
- Case colour
Chrome (brushed)
- Fan features
Reversible blades
Winter-proof
- Dim
(Ø x H) 79 cm x 164 mm
- Weight
5590 g
n.rel.
- Rotor blades
5
- Reversible rotation direction
Yes
- Rotational speed (max.)
315 U/min
- Speed levels
3
- Max. power consumption
63 W
- Air discharge
3431 m³/h
- Material
Steel
Wood
- Compatible with
CasaFan Classic Flat
- Height
164 mm
- Length
792 mm
- Depth
792 mm
- Service value
0.9 (m³/min)/W
- Power supply (LOV)
mains-powered
- Height-adjustable
No
- Width
792 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3450907 CasaFan FLAT 75-III BN-NB/BU Flügel Nussbaum/Buche Ceiling fan 61 W (Ø x H) 79 cm x 164 mm Chrome (brushed) Reversible b
Description
The CasaFan classic flat III is a compact, classic and functional ceiling fan that harmoniously combines design and function. With its flat design and high quality materials, it fits seamlessly into living rooms, bedrooms or work rooms up to 20 m². The smooth running AC-motor offers three speeds as well as a practical summer-/winter function via a slide switch. It is operated conveniently via a pull switch.Ideal for rooms with even ceilings.
This text is machine translated.
This text is machine translated.
Scope of delivery
- - Ceiling fan
- - Pull switch
- - Mounting hardware
- - Installation and operating instructions
