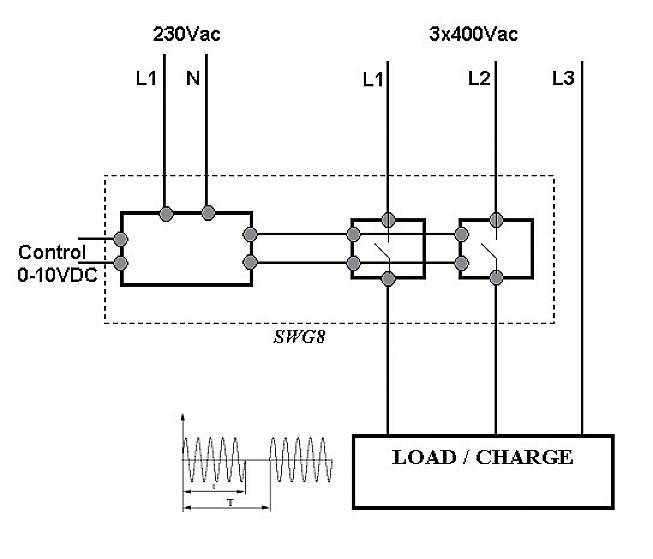

Stroke drawing/circuit diagram
Celduc SSR SWG84210 Zero crossing 1 pc(s)
Packaging type
Piece
Product type
SSR
Control voltage (min.)
0 V DC
Control voltage (max.)
10 V DC
Type
SWG84210
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Electrostatic discharge sensitivity: No.
- Mounting housing: DIN rail
- Number of switched phases: 2 phase - 1 control
- Packaging type
Piece
- Product type
SSR
- Type
SWG84210
- Switching type
Zero crossing
- Connection
Screws
- Control voltage (min.)
0 V DC
- Control voltage (max.)
10 V DC
- Control voltage range
0 - 10 V DC
- Contact type
1 maker
- Width
330 mm
- Height
110 mm
- Length
147 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2436271 Celduc SSR SWG84210 Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2436271 Celduc SSR SWG84210 Zero crossing 1 pc(s)
