CellPack 124294 M1/EG Cable sleeve Cable Ø range: 22 mm (max) Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable sleeve
Cable Ø (max.)
22 mm
Min. cross section
0.75 mm²
max. cross section
95 mm²
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details

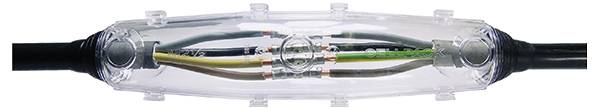

Cast-resin straight-through joint for plastic cables and control and signal cables M 1/EG
- Compact dimensions
- Splice position visible in front of casting
- High-quality, transparent, impact-resistant plastic molded recesses
- Resistant to chemical influences
- Stabilised against UV rays
- Resistant to alkaline earth
- Longitudinal and transverse water-tightness
- High electrical insulation value
- High mechanical strength
- Ready for immediate operation.
- Fast, simple and safe mounting
Technical specifications
- Product type
Cable sleeve
- Cable Ø (max.)
22 mm
- Min. cross section
0.75 mm²
- max. cross section
95 mm²
- Content
1 pc(s)
- Manufacturer part #
124294
- Dim
(Ø x L) 40 mm x 240 mm
- Factory colour
Transparent
- Cable Ø range
22 mm (max)
- Width
45 mm
- Length
240 mm
- (Ø)
40 mm
- Max. temperature
35 °C
- Min. temperature
15 °C
- Type
M1/EG
- Standards
Test standard EN 50393
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3742060 CellPack 124294 M1/EG Cable sleeve Cable Ø range: 22 mm (max) Content: 1 pc(s)
Security datasheet
Security datasheet 3742060 CellPack 124294 M1/EG Cable sleeve Cable Ø range: 22 mm (max) Content: 1 pc(s)
Security datasheet 3742060 CellPack 124294 M1/EG Cable sleeve Cable Ø range: 22 mm (max) Content: 1 pc(s)
Signal word
Danger
GHS / H Statements
- H 315: Causes skin irritation
- H 317: May cause an allergic skin reaction
- H 319: Causes serious eye irritation
- H 332: Harmful if inhaled
- H 334: May cause allergies or asthma symptoms or breathing difficulties if inhaled
- H 335: May cause respiratory irritation
- H 351: Suspected of causing cancer(state type of exposure only if proven that no other exposure type may cause these defects)
- H 373: May cause damage to organs (name all organs affected if known) through prolonged or repeated exposure (name exposure type if there is compelling evidence that no other exposure type has the same effect)
GHS / P Statements
- P 201: Obtain special instructions before use
- P 260: Do not inhale dust/fume/gas/mist/vapours/spray
- P 264: Rinse … thoroughly after use
- P 280: Wear protective gloves/protective clothing/eye protection/face protection
- P 304+340: IF INHALED: Take person into fresh air and keep at rest in a position comfortable for breathing
- P 308+313: IF EXPOSED TO/CONCERNED: Seek medical advice
Description
Can be used universally to connect plastic cables with insulation made of PVC, PE, VPE and EPR (e.g. N(A)YY, NYM, TT). With hydrolysis resistant PUR-cast resin EG. Suitable for press or screw connectors on copper and aluminum cables.
This text is machine translated.
This text is machine translated.
Features
- Transparent plastic molded recess
- Hydrolysis resistant PUR-cast resin EG (ready to mix in practical two chamber mixing bag)
- Filling and bleeding funnel
- PVC insulation tape
- Safety Gloves
- Installation guide
