CellPack 425491 M1/EG/V/WAGO Epoxy resin sleeve Cable Ø range: 22 mm (max) Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Epoxy resin sleeve
Cable Ø (max.)
22 mm
Min. cross section
0.5 mm²
max. cross section
4 mm²
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details

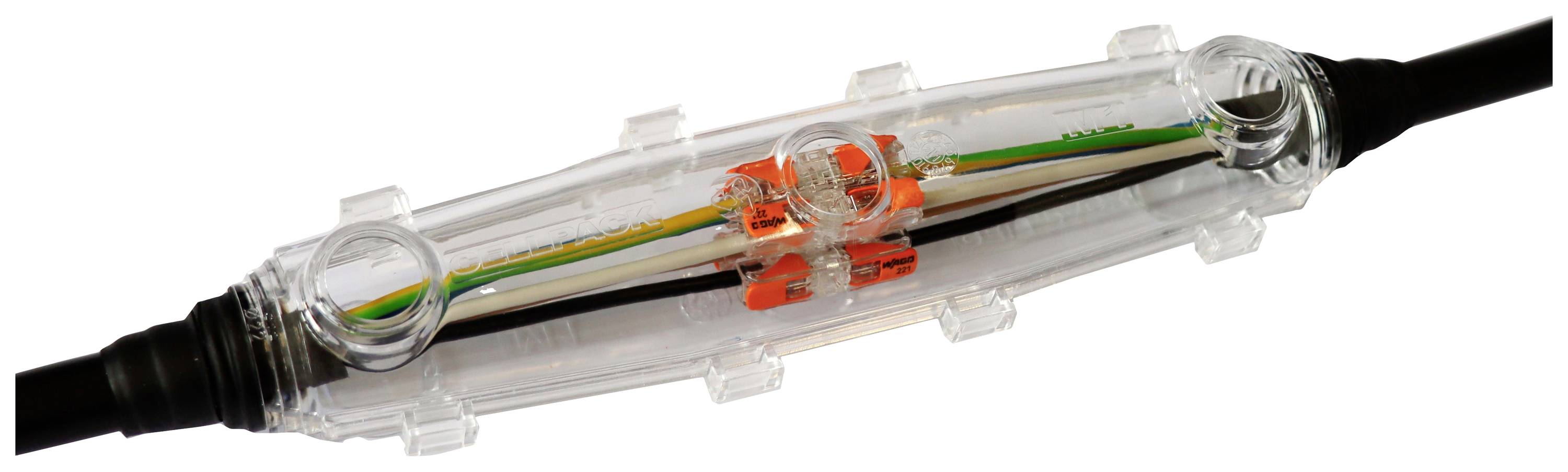

Cast resin connecting sleeve M/1 EG/V/WAGO
Technical specifications
- Product type
Epoxy resin sleeve
- Cable Ø (max.)
22 mm
- Min. cross section
0.5 mm²
- max. cross section
4 mm²
- Content
1 pc(s)
- Manufacturer part #
425491
- Dim
(L x W) 240 mm x 45 mm
- Cable Ø range
22 mm (max)
- Width
45 mm
- Length
240 mm
- Type
M1/EG/V/WAGO
- Standards
EN 50393
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3164783 CellPack 425491 M1/EG/V/WAGO Epoxy resin sleeve Cable Ø range: 22 mm (max) Content: 1 pc(s)
Security datasheet
Security datasheet 3164783 CellPack 425491 M1/EG/V/WAGO Epoxy resin sleeve Cable Ø range: 22 mm (max) Content: 1 pc(s)
Security datasheet 3164783 CellPack 425491 M1/EG/V/WAGO Epoxy resin sleeve Cable Ø range: 22 mm (max) Content: 1 pc(s)
Signal word
Danger
GHS / H Statements
- H 315: Causes skin irritation
- H 317: May cause an allergic skin reaction
- H 319: Causes serious eye irritation
- H 332: Harmful if inhaled
- H 334: May cause allergies or asthma symptoms or breathing difficulties if inhaled
- H 335: May cause respiratory irritation
- H 351: Suspected of causing cancer(state type of exposure only if proven that no other exposure type may cause these defects)
- H 373: May cause damage to organs (name all organs affected if known) through prolonged or repeated exposure (name exposure type if there is compelling evidence that no other exposure type has the same effect)
GHS / P Statements
- P 201: Obtain special instructions before use
- P 260: Do not inhale dust/fume/gas/mist/vapours/spray
- P 264: Rinse … thoroughly after use
- P 280: Wear protective gloves/protective clothing/eye protection/face protection
- P 304+340: IF INHALED: Take person into fresh air and keep at rest in a position comfortable for breathing
- P 308+313: IF EXPOSED TO/CONCERNED: Seek medical advice
Description
Can be used universally to connect plastic cables with insulation made of PVC, PE, VPE and EPR (e.g. N(A)YY, NYM, TT). With hydrolysis resistant PUR-cast resin EG. With screw connectors, suitable for copper and aluminum cables.
