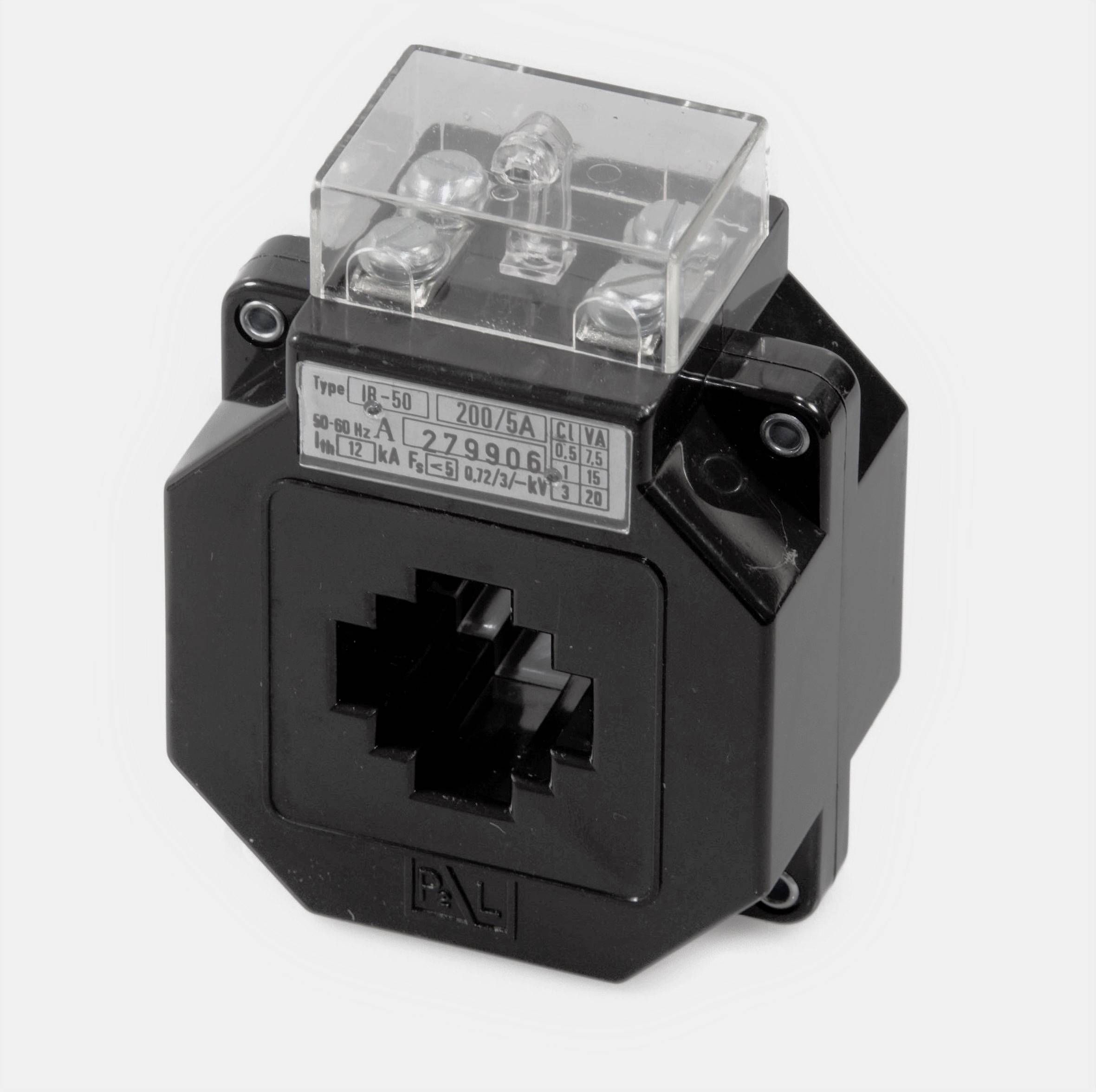

Celsa IB-50 150/5A 3.75VA Kl. 10P5 70030-2642 Single-phase current converter Primary current 150 A Secondary current 5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Current transformer IB-50 150/5A 3.75VA Cl. 10P5
- Input current (current) 150 A
- Output current 5 A
- Line feed-through diameter 23 mm
Technical specifications
- Product type
Single-phase current converter
- Primary current
150 A
- Secondary current
5 A
3.75 VA
- Line feed-through diameter
23 mm
- Accuracy class
others
- Type
IB-50 150/5A 3.75VA Kl. 10P5
- Output current
5 A
- Input current
150 A

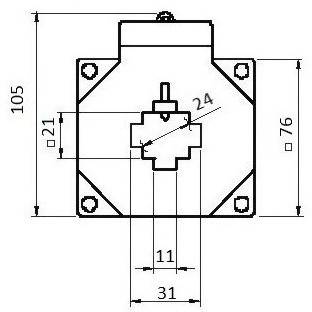

- Line feed-through (W)
31 mm
- Line feed-through (H x W)
21 x 31 mm
- Line feed-through (H)
21 mm
Single-phase current converter
23 mm
1
FALSE
150 A
FALSE
375 VA
5 A
FS 5
TRUE
FALSE
Other
11-21 mm
21-31 mm
Screw connection
Documents & Downloads
Datasheet
Datasheet 3131675 Celsa IB-50 150/5A 3.75VA Kl. 10P5 70030-2642 Single-phase current converter Primary current 150 A Secondary current 5 A
Description
This protective current transformer is used for plant protection in connection with the appropriate switching devices
Available in numerous protection classes
Lead-sealable secondary terminal covers made of transparent polycarbonate
Double secondary terminals on all versions to short-circuit the secondary windings before opening the secondary circuit
This text is machine translated.
Available in numerous protection classes
Lead-sealable secondary terminal covers made of transparent polycarbonate
Double secondary terminals on all versions to short-circuit the secondary windings before opening the secondary circuit
