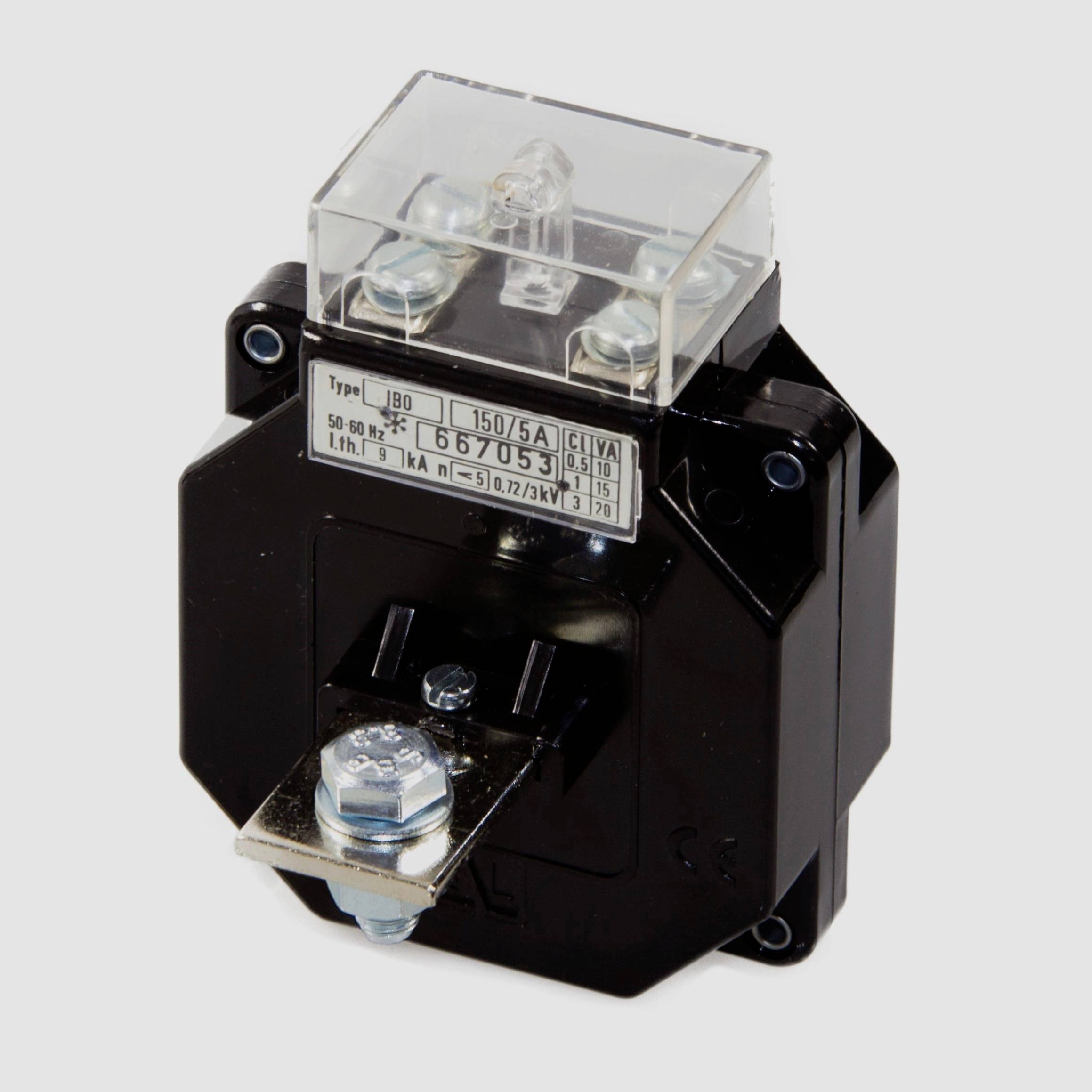

Celsa IBO Form B 30/5A 10VA Kl. 1 70097-2026-1000 Current transformer attachment Primary current 30 A Secondary current
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
IBO type B 30/5A 10VA Cl. 1 current transformer
- Input current (current) 30 A
- Output current 5 A
- Line feed-through diameter 0 mm
Technical specifications
- Product type
Current transformer attachment
- Fitting type
Push-fit
- Primary current
30 A
- Secondary current
5 A
10 VA
- Line feed-through diameter
0 mm
- Accuracy class
1
- Type
IBO Form B 30/5A 10VA Kl. 1
- Output current
5 A
- Input current
30 A
- Line feed-through (W)
0 mm
- Line feed-through (H)
0 mm
Attachable current transformer
0 mm
1
FALSE
30 A
FALSE
10 VA
5 A
FS 5
TRUE
FALSE
1
0-0 mm
0-0 mm
Screw connection
Documents & Downloads
Datasheet
Datasheet 3128039 Celsa IBO Form B 30/5A 10VA Kl. 1 70097-2026-1000 Current transformer attachment Primary current 30 A Secondary current
User & Safety Instructions
User & Safety Instructions 3128039 Celsa IBO Form B 30/5A 10VA Kl. 1 70097-2026-1000 Current transformer attachment Primary current 30 A Secondary current
Description
This current transformer is usually used in equipment reconstructions, since the electric circuit has to be interrupted here
Most cost-effective and most common version
Simply connect the converter to the primary conductor (do not need to be wired in a complicated way)
Currently the most compact design on the market, it is wonderfully suitable for the control cabinet
Further areas of application are the mechanical and plant engineering
