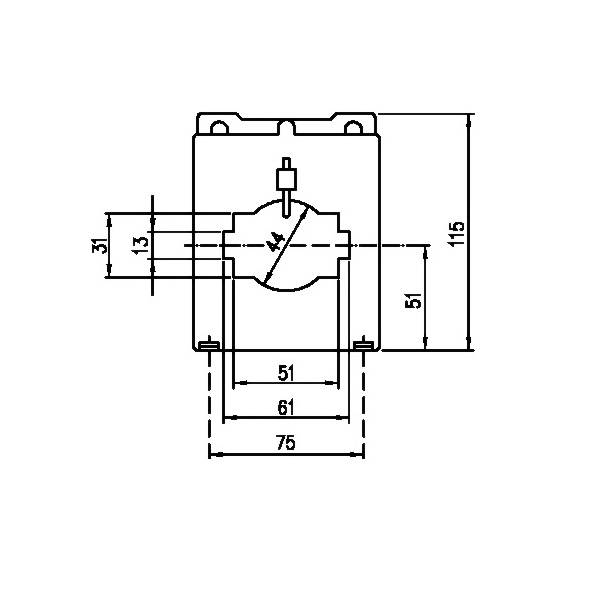

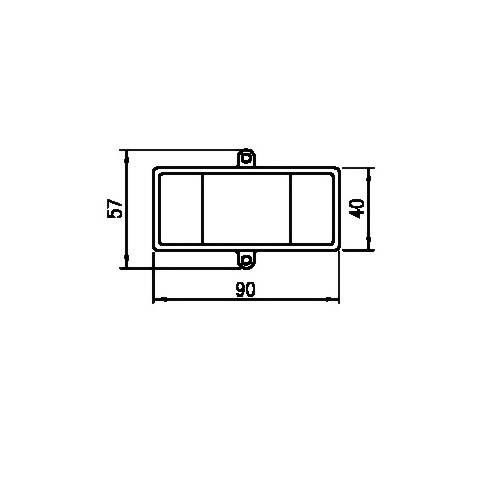

Stroke drawing/circuit diagram
Celsa IBR/1 600/1A 2.5VA Kl. 5P5 70030-2909 Single-phase current converter Primary current 600 A Secondary current 1 A L
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Protected against IBR/1 600/1A 2.5VA cl. 5P5
- Input current (current) 600 A
- Output current 1 A
- Line feed-through diameter 44 mm
Technical specifications
- Product type
Single-phase current converter
- Primary current
600 A
- Secondary current
1 A
2.5 VA
- Line feed-through diameter
44 mm
- Accuracy class
others
- Type
IBR/1 600/1A 2.5VA Kl. 5P5
- Output current
1 A
- Input current
600 A
- Line feed-through (W)
61 mm
- Line feed-through (H x W)
31 x 61 mm
- Line feed-through (H)
31 mm
Single-phase current converter
44 mm
1
FALSE
600 A
FALSE
25 VA
1 A
FS 5
TRUE
FALSE
Other
13-31 mm
51-61 mm
Screw connection
Documents & Downloads
Datasheet
Datasheet 3131790 Celsa IBR/1 600/1A 2.5VA Kl. 5P5 70030-2909 Single-phase current converter Primary current 600 A Secondary current 1 A L
Description
This protective current transformer is used for plant protection in connection with the appropriate switching devices
Available in numerous protection classes
Lead-sealable secondary terminal covers made of transparent polycarbonate
Double secondary terminals on all versions to short-circuit the secondary windings before opening the secondary circuit
This text is machine translated.
Available in numerous protection classes
Lead-sealable secondary terminal covers made of transparent polycarbonate
Double secondary terminals on all versions to short-circuit the secondary windings before opening the secondary circuit
This text is machine translated.
