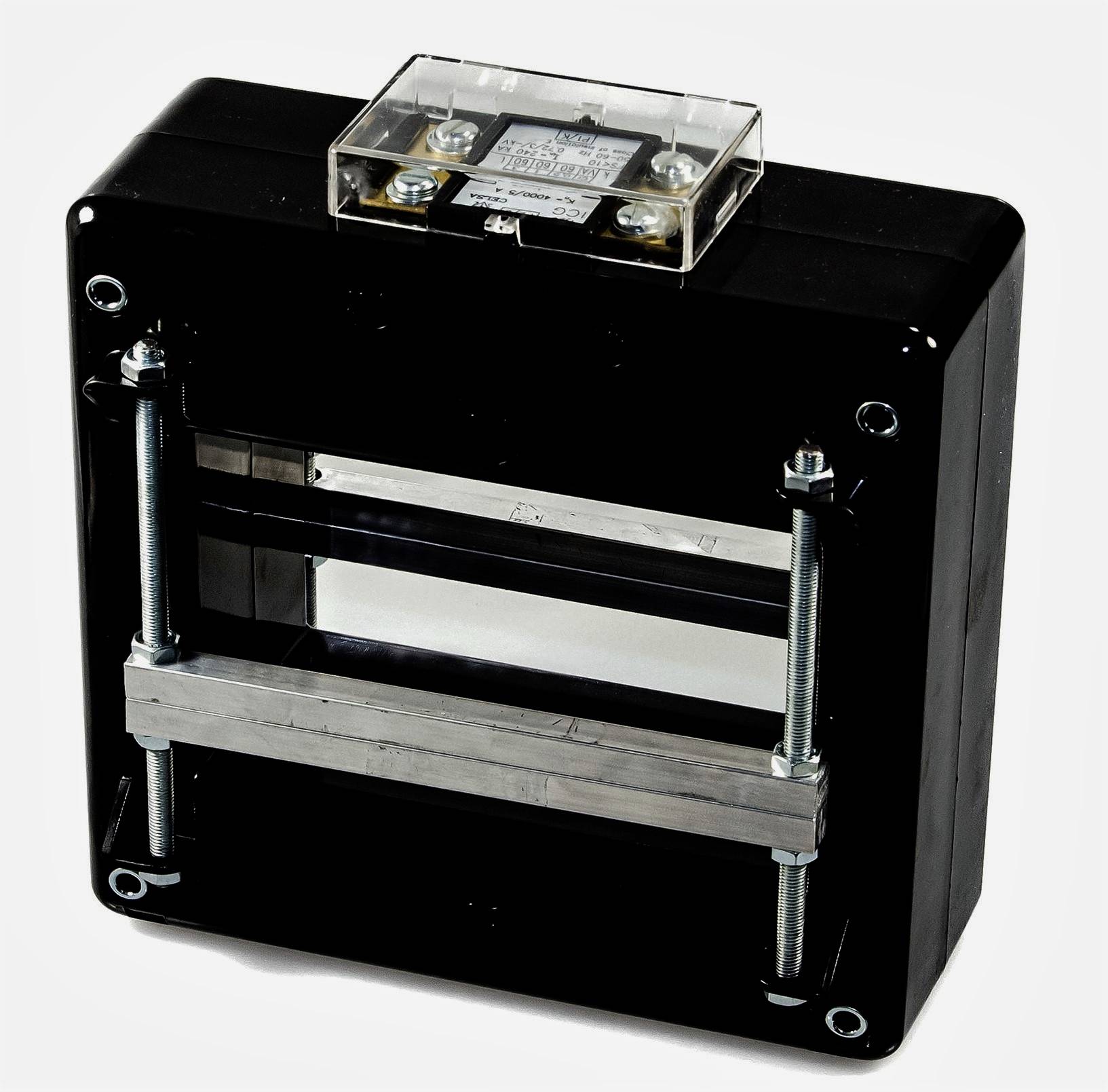

Celsa ICG 6000/5A 60VA Kl. 0.5 70030-4642 Current transformer attachment Primary current 6000 A Secondary current 5 A Li
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
IKG 6000/5A 60VA class 0.5
- Input current (current) 6000 A
- Output current 5 A
- Line feed-through diameter 0 mm
Technical specifications
- Product type
Current transformer attachment
- Fitting type
Push-fit
- Primary current
6000 A
- Secondary current
5 A
60 VA
- Line feed-through diameter
0 mm
- Accuracy class
0.5
- Type
ICG 6000/5A 60VA Kl. 0.5
- Output current
5 A
- Input current
6000 A
- Line feed-through (W)
132 mm

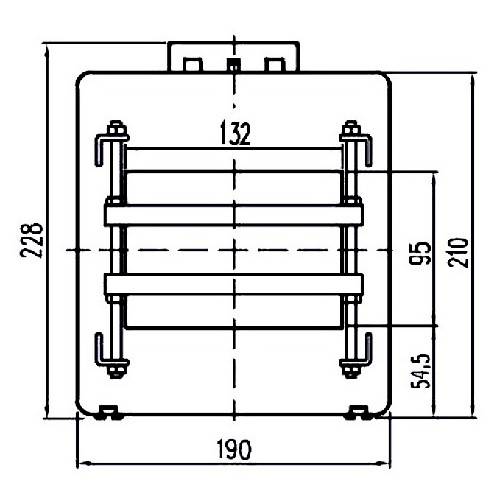

- Line feed-through (H x W)
95 x 132 mm
- Line feed-through (H)
95 mm
Attachable current transformer
0 mm
1
FALSE
6000 A
FALSE
60 VA
5 A
FS 5
TRUE
FALSE
0.5
95-95 mm
132-132 mm
Screw connection
Documents & Downloads
Datasheet
Datasheet 3128156 Celsa ICG 6000/5A 60VA Kl. 0.5 70030-4642 Current transformer attachment Primary current 6000 A Secondary current 5 A Li
User & Safety Instructions
User & Safety Instructions 3128156 Celsa ICG 6000/5A 60VA Kl. 0.5 70030-4642 Current transformer attachment Primary current 6000 A Secondary current 5 A Li
Description
This current transformer is usually used in equipment reconstructions, since the electric circuit has to be interrupted here
Most cost-effective and most common version
Simply connect the converter to the primary conductor (do not need to be wired in a complicated way)
Currently the most compact design on the market, it is wonderfully suitable for the control cabinet
Further areas of application are the mechanical and plant engineering
This text is machine translated.
Most cost-effective and most common version
Simply connect the converter to the primary conductor (do not need to be wired in a complicated way)
Currently the most compact design on the market, it is wonderfully suitable for the control cabinet
Further areas of application are the mechanical and plant engineering
