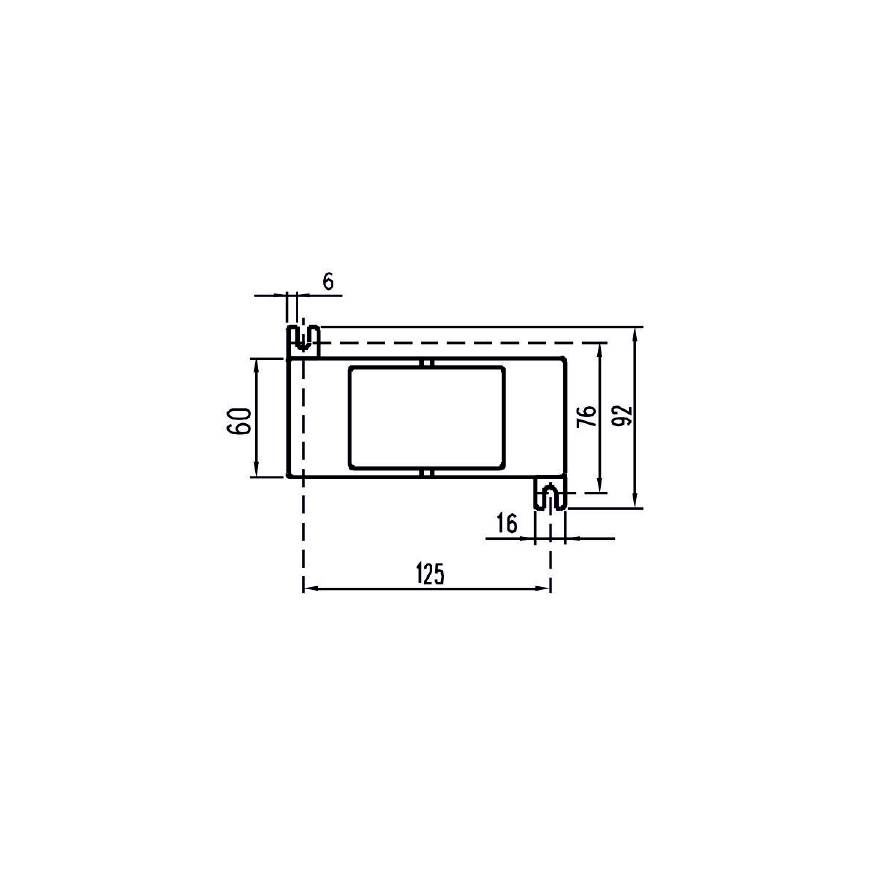

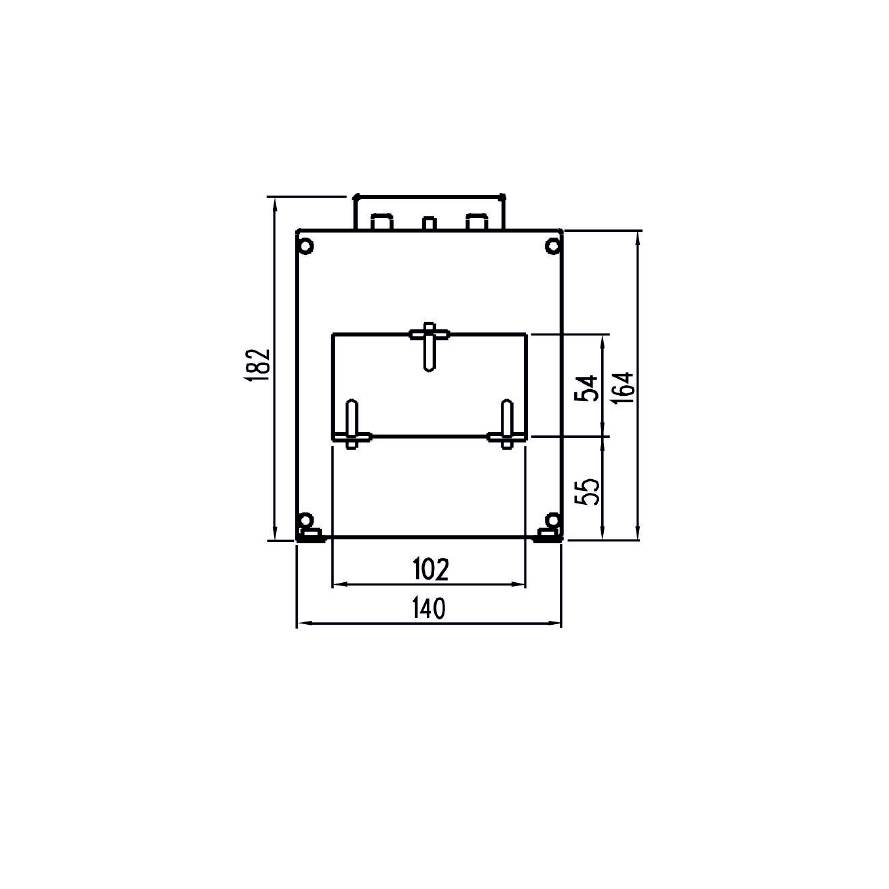

Stroke drawing/circuit diagram
Celsa ICM 1000/5A 5VA Kl. 5P10 70030-4754 Single-phase current converter Primary current 1000 A Secondary current 5 A Li
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Protection current transformer ICM 1000/5A 5VA Kl. 5P10
- Input current (current) 1000 A
- Output current 5 A
- Line feed-through diameter 0 mm
Technical specifications
- Product type
Single-phase current converter
- Primary current
1000 A
- Secondary current
5 A
5 VA
- Line feed-through diameter
0 mm
- Accuracy class
others
- Type
ICM 1000/5A 5VA Kl. 5P10
- Output current
5 A
- Input current
1000 A
- Line feed-through (W)
102 mm
- Line feed-through (H x W)
54 x 102 mm
- Line feed-through (H)
54 mm
Single-phase current converter
0 mm
1
FALSE
1000 A
FALSE
5 VA
5 A
FS 5
TRUE
FALSE
Other
54-54 mm
102-102 mm
Screw connection
Documents & Downloads
Datasheet
Datasheet 3131803 Celsa ICM 1000/5A 5VA Kl. 5P10 70030-4754 Single-phase current converter Primary current 1000 A Secondary current 5 A Li
Description
This protective current transformer is used for plant protection in connection with the appropriate switching devices
Available in numerous protection classes
Lead-sealable secondary terminal covers made of transparent polycarbonate
Double secondary terminals on all versions to short-circuit the secondary windings before opening the secondary circuit
