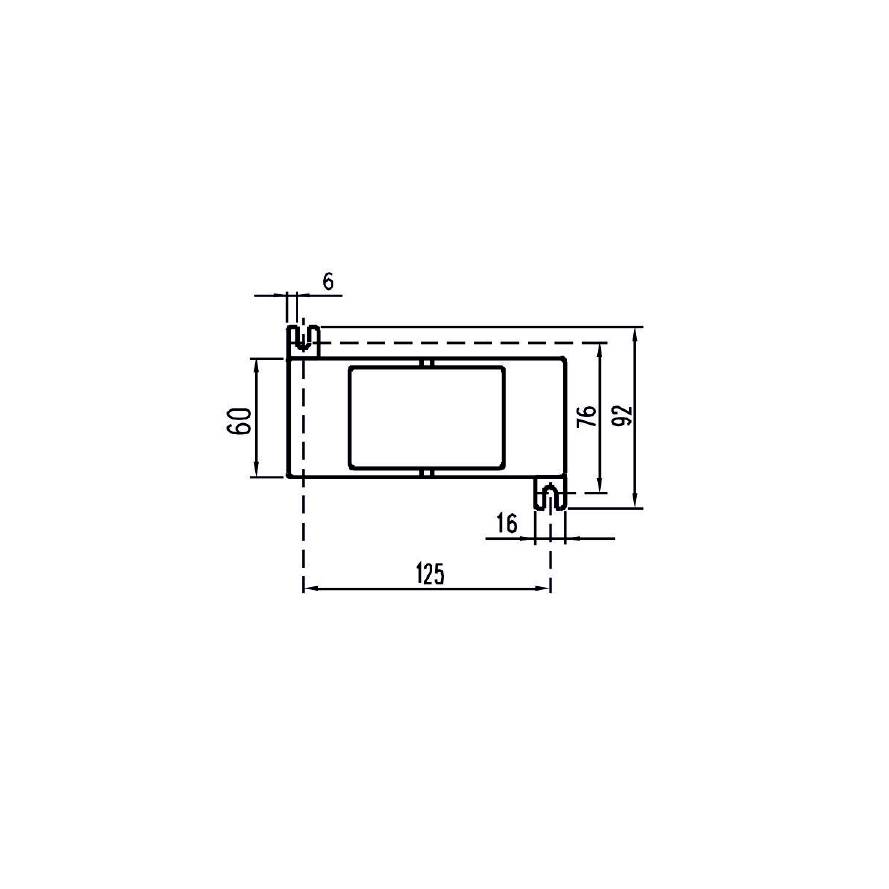

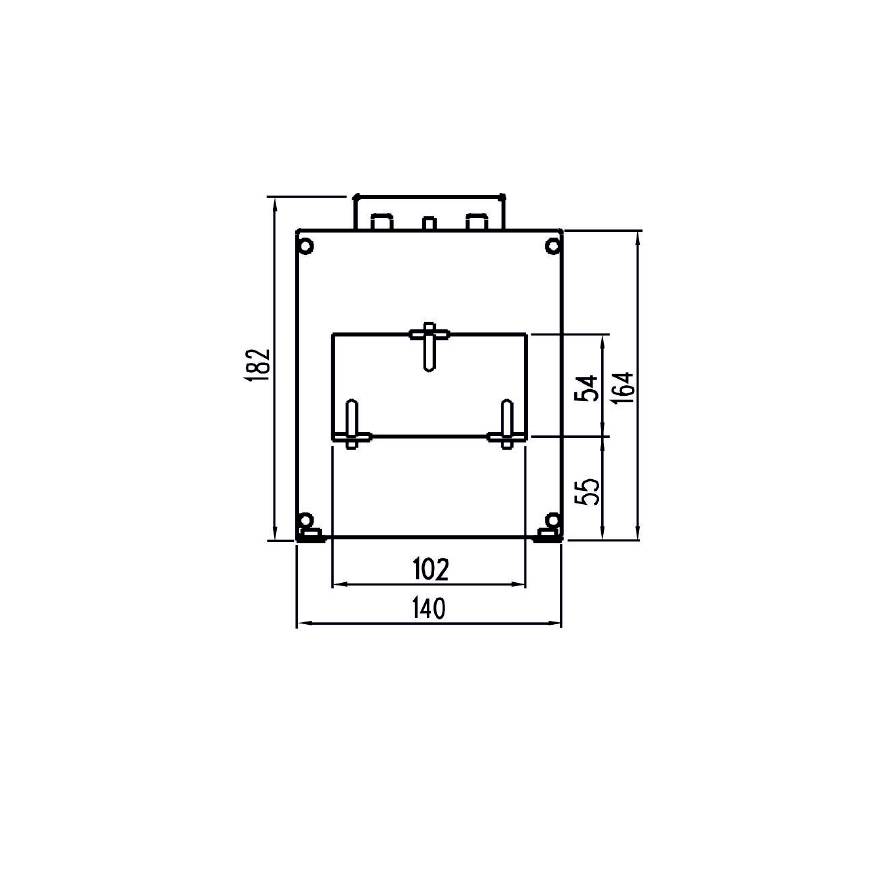

Stroke drawing/circuit diagram
Celsa ICM 3000/1A 10VA Kl. 10P10 70030-4753 Single-phase current converter Primary current 3000 A Secondary current 1 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Protection current transformer ICM 3000/1A 10VA Kl. 10P10
- Input current (current) 3000 A
- Output current 1 A
- Line feed-through diameter 0 mm
Technical specifications
- Product type
Single-phase current converter
- Primary current
3000 A
- Secondary current
1 A
10 VA
- Line feed-through diameter
0 mm
- Accuracy class
others
- Type
ICM 3000/1A 10VA Kl. 10P10
- Output current
1 A
- Input current
3000 A
- Line feed-through (W)
102 mm
- Line feed-through (H x W)
54 x 102 mm
- Line feed-through (H)
54 mm
Single-phase current converter
0 mm
1
FALSE
3000 A
FALSE
10 VA
1 A
FS 5
TRUE
FALSE
Other
54-54 mm
102-102 mm
Screw connection
Documents & Downloads
Datasheet
Datasheet 3131824 Celsa ICM 3000/1A 10VA Kl. 10P10 70030-4753 Single-phase current converter Primary current 3000 A Secondary current 1 A
Description
This protective current transformer is used for plant protection in connection with the appropriate switching devices
Available in numerous protection classes
Lead-sealable secondary terminal covers made of transparent polycarbonate
Double secondary terminals on all versions to short-circuit the secondary windings before opening the secondary circuit
This text is machine translated.
Available in numerous protection classes
Lead-sealable secondary terminal covers made of transparent polycarbonate
Double secondary terminals on all versions to short-circuit the secondary windings before opening the secondary circuit
