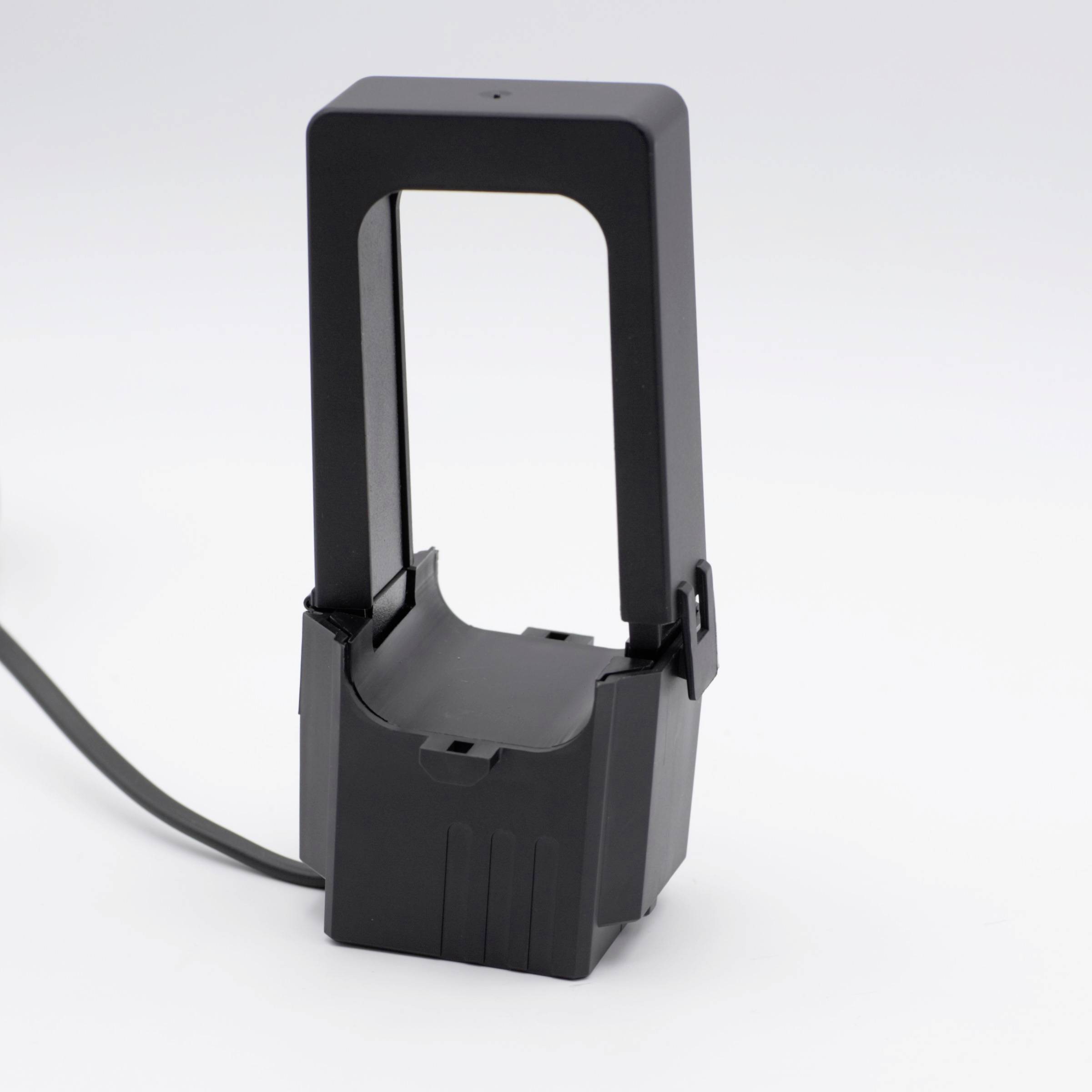

Celsa TQ 84 600/1A 0.5VA Kl. 0.5 70006-1334 Cable current transformer Primary current 600 A Secondary current 1 A Line f
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Cod work converter TQ 84 600/1A 0.5VA Cl. 0.5
- Input current (current) 600 A
- Output current 1 A

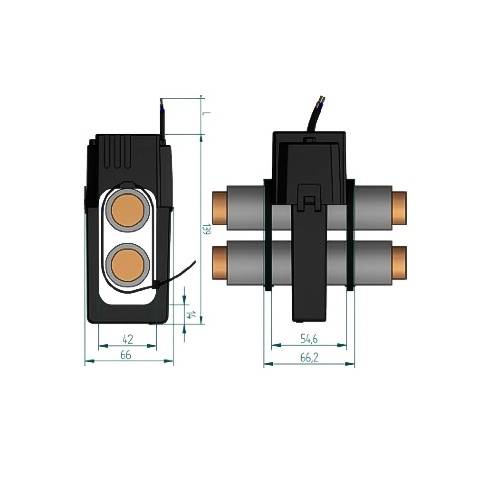

- Line feed-through diameter 42 mm
Technical specifications
- Product type
Cable current transformer
- Primary current
600 A
- Secondary current
1 A
0.5 VA
- Line feed-through diameter
42 mm
- Accuracy class
0.5
- Type
TQ 84 600/1A 0.5VA Kl. 0.5
- Output current
1 A
- Input current
600 A
- Line feed-through (W)
0 mm
- Line feed-through (H)
0 mm
Cable rebuilding current converter
42 mm
1
FALSE
600 A
FALSE
5 VA
1 A
FS 5
TRUE
FALSE
0.5
0-0 mm
0-0 mm
Cable
Documents & Downloads
Datasheet
Datasheet 3131487 Celsa TQ 84 600/1A 0.5VA Kl. 0.5 70006-1334 Cable current transformer Primary current 600 A Secondary current 1 A Line f
Description
Extremely compact
Excellent for retrofitting, as you don't need to interrupt the primary circuit
Especially suitable for digital measuring devices
Super quick and easy installation
Fuse of the converter with UV-resistant cable ties
This cable transformer is supplied with multi-color coded connecting cables
This text is machine translated.
Excellent for retrofitting, as you don't need to interrupt the primary circuit
Especially suitable for digital measuring devices
Super quick and easy installation
Fuse of the converter with UV-resistant cable ties
This cable transformer is supplied with multi-color coded connecting cables
This text is machine translated.
