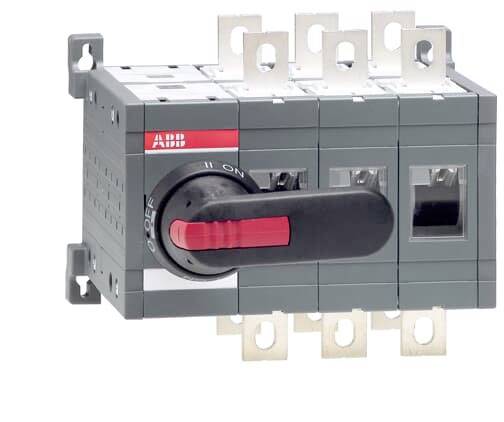

Changeover Black 3-pin 400 A ABB 1SCA022771R8500
Product type
Changeover
Number of pins
3
Nominal current - rounded value
400 A
Factory colour
Black
Dim
(W x H x D) 221 x 185 x 203 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Changeover
- Factory colour
Black
- Number of pins
3
- Dim
(W x H x D) 221 x 185 x 203 mm
- Nominal current
400 A
- Nominal current - rounded value
400 A
- Width
221 mm
- Height
185 mm
- Depth
203 mm
221
185 mm
203 mm
0
0
400 A
3
1000-1000 V
IP20
0
1
TRUE
FALSE
FALSE
Long turning handle
TRUE
FALSE
TRUE
220 kW
15 kA
Black
FALSE
TRUE
FALSE
TRUE
FALSE
1000 V
FALSE
FALSE
Built-in device plug-in technique
400 A
220 kW
FALSE
400
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319629 Changeover Black 3-pin 400 A ABB 1SCA022771R8500
User & Safety Instructions
User & Safety Instructions 2319629 Changeover Black 3-pin 400 A ABB 1SCA022771R8500
Description
ABB's range of manual load switches is an ideal solution for a wide range of applications. The load switches switch current strengths from 16 A to 3200 A and this at voltages up to 690 V AC. Despite the high performance, the switches ensure safe operation through a variety of integrated fuse functions. The compact design allows the series to maximize space utilization. ABB's load switches are available in two different versions. These differ in the type of switchover: Open switchover (I-0-II) and closed switchover (I-I+II-II). In addition, the switches have IEC and UL approvals. ABB offer a wide range of accessories for these switches, such as Extension shafts, handles, auxiliary switches and terminal covers. In addition, an intelligent control unit can be combined with the switch so that it functions as an ATS (Automatic Transfer Switch). This means that the load switches can be used in the most demanding applications.
