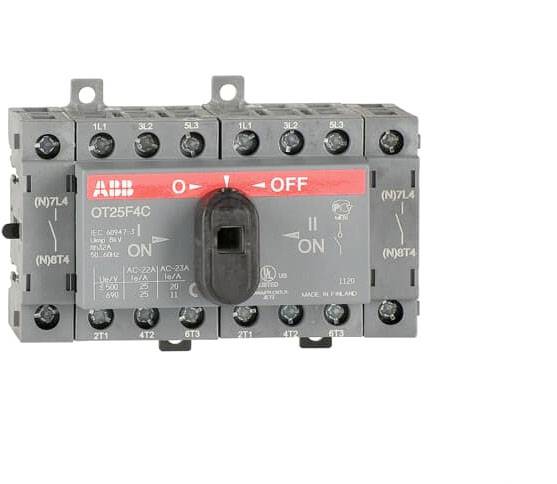

Changeover Black 4-pin ABB 1SCA104877R1001
Product type
Changeover
Number of pins
4
Factory colour
Black
Dim
(W x H x D) 96 x 68 x 68 mm
Width
96 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Changeover
- Factory colour
Black
- Number of pins
4
- Dim
(W x H x D) 96 x 68 x 68 mm
- Width
96 mm
- Height
68 mm
- Depth
68 mm
96
68 mm
68 mm
0
0
25 A
4
750-750 V
IP20
0
1
TRUE
FALSE
FALSE
TRUE
FALSE
TRUE
9 kW
0.5 kA
Black
FALSE
TRUE
FALSE
TRUE
FALSE
750 V
FALSE
FALSE
Built-in device plug-in technique
25 A
9 kW
FALSE
20
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324303 Changeover Black 4-pin ABB 1SCA104877R1001
User & Safety Instructions
User & Safety Instructions 2324303 Changeover Black 4-pin ABB 1SCA104877R1001
Description
ABB's range of manual load switches is an ideal solution for a wide range of applications. The load switches switch current strengths from 16 A to 3200 A and this at voltages up to 690 V AC. Despite the high performance, the switches ensure safe operation through a variety of integrated fuse functions. The compact design allows the series to maximize space utilization. ABB's load switches are available in two different versions. These differ in the type of switchover: Open switchover (I-0-II) and closed switchover (I-I+II-II). In addition, the switches have IEC and UL approvals. ABB offer a wide range of accessories for these switches, such as Extension shafts, handles, auxiliary switches and terminal covers. In addition, an intelligent control unit can be combined with the switch so that it functions as an ATS (Automatic Transfer Switch). This means that the load switches can be used in the most demanding applications.
