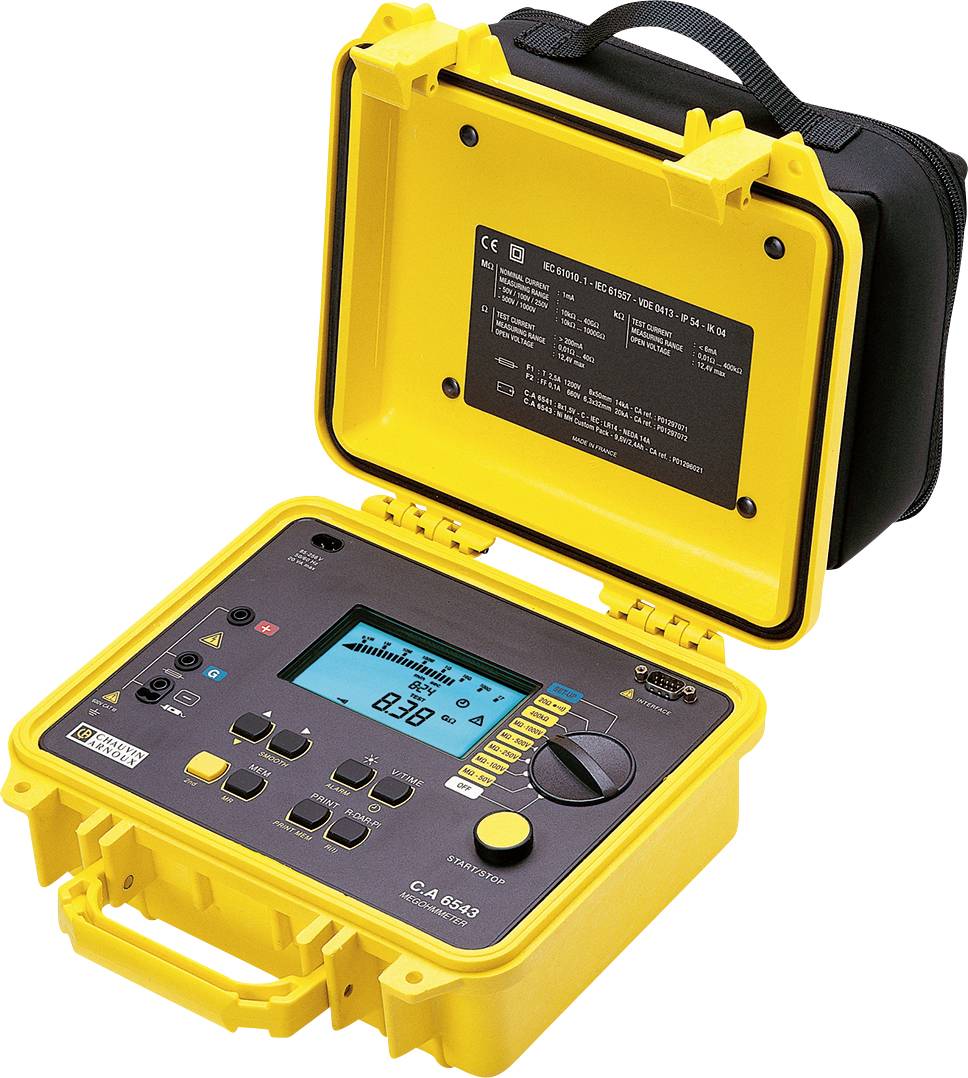

Chauvin Arnoux C.A 6543 Insulation tester 50 V, 1000 V 4 TΩ
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Megohm-Meter C.A 6543
- CAT III 600V
- Insulation test up to 4 TΩ
- Micro-processor control
- Data memory 128 kB
- RS232 interface
Technical specifications
- Data storage: 128 kB
- Reading range - Insulation resistance: 2 kΩ to 4 TΩ
- Product type
Insulation tester
- Test voltage
50 V
1000 V
- Reading type
Insulation resistance
- Continuity testing
0.01 Ω - 40 Ω
Manufacturer's standards (no certificate)
- Reading range - resistance
0.01 Ω - 400 kΩ
- Interfaces
RS232
- Power supply (details)
Built-in rechargeable battery
- Dim
(L x W x H) 24 x 18.5 x 11 cm
- Weight
3.4 kg
- Display type
Digital (LCD)
- Insulation resistance (max.)
4 TΩ
- Reading category
CAT III 600 V
- Width
18.5 cm
- Height
11 cm
- Length
24 cm
Documents & Downloads
Datasheet
Datasheet 102398 Chauvin Arnoux C.A 6543 Insulation tester 50 V, 1000 V 4 TΩ
User & Safety Instructions
User & Safety Instructions 102398 Chauvin Arnoux C.A 6543 Insulation tester 50 V, 1000 V 4 TΩ
Conformity certificate
Conformity certificate 102398 Chauvin Arnoux C.A 6543 Insulation tester 50 V, 1000 V 4 TΩ
Description
The gelandetauglichem Megohmmeter C.A 6543 with compact, housing offer you the best quality with regard to insulation testing. From a microprocessor-controlled devices have very advanced functions for insulation measurement (with 50 V to 1000 V up to 4 TΩ) and for the measurement of AC/DC voltage, check the continuity at 200 mA, for the measurement of resistance and capacitance. In addition, it also has a rechargeable battery, a memory and an RS232 connection to control the device via a PC.
This text is machine translated.
This text is machine translated.
Features
- Illuminated LC display
- SMOOTH-Function (smoothing of the display values)
- Programmable alarms
- Micro-processor control
- Terrains Housing
- Data memory 128 kB
- RS232 interface
- Rechargeable battery
Scope of delivery
- 2 Safety Leads
- Shielded safety cable
- 3 alligator clips
- Black test probe
- Power cable
- User manual.
