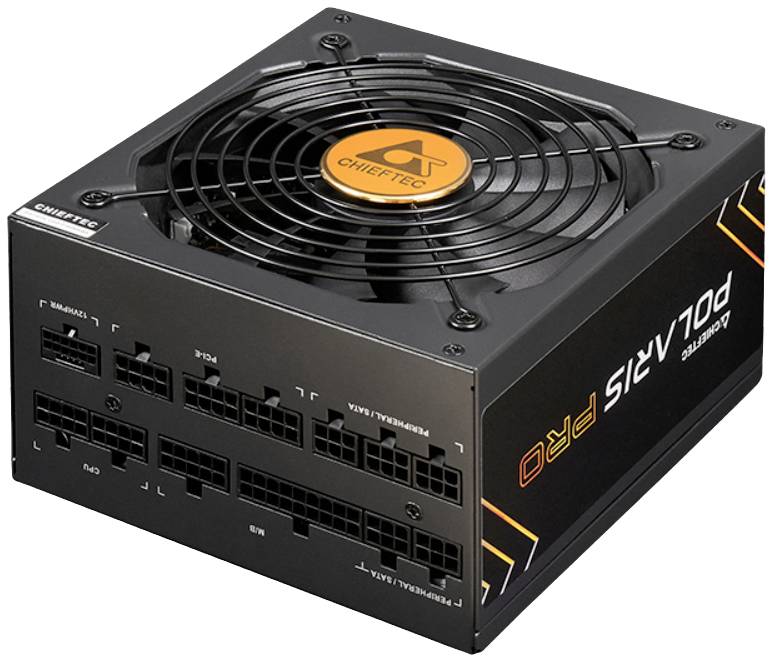

Chieftec POLARIS PRO 1300W PC power supply unit 1300 W ATX 80 PLUS Platinum
Product type
PC power supply unit
PSU output power
1300 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX
EAN:
Part number:
Item no:
Highlights & Details
Chieftec POLARIS PRO 1300W PC power supply unit
- Power supply unit output 1300 W
- PCI-Express (6+2-Pin) 6x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- Product type
PC power supply unit
- PSU output power
1300 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
Black
- ATX version
ATX 3.0
- Dim
(W x H x D) 150 x 86 x 160 mm
- Depth
160 mm
- Height
86 mm
- Width
150 mm
- Weight
3.13 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
108.3 A
- 5 V DC
24 A
- +5V / DC SB
3 A
- 24-pin
1
- 20+4-pin.
4
- 6-pin PCIe
6
- 6-pin PCIe
6
- Features
ATX 3.0
- Output rating > 700 W
1300 W
- Power rating
751 W -
- Type of bearing
Fluid dynamic bearing
- Design height
86 mm
- Cooling
Active
- 3.3V DC
24 A
- Power supply (details)
100 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2937611 Chieftec POLARIS PRO 1300W PC power supply unit 1300 W ATX 80 PLUS Platinum
Description
The CHIEFTEC Polaris Pro series has an advanced thermal control with the Zero RPM mode, which provides the optimum balance between low power consumption and ideal cooling with 80 PLUS® PLATINUM-certified efficiency. The Polaris Pro Series was developed for Intel's state-of-the-art ATX 3.0 standard with native PCIe GEN5 port. The Polaris Pro Series is made up of 100% Japanese high-end capacitors to achieve unprecedented tight voltage regulation and reduced ripple and noise to maximize your system performance and durability. The fully modular cable management ensures a clean and comfortable installation in any system.
This text is machine translated.
This text is machine translated.
Features
- Total power 1300 W.
- AC input voltage 100 - 240 V
- AC input frequency 50/60 Hz Motherboard connector plug 20+4 pin ATX
- Power cable length of motherboard 60 cm
- SATA-power cable length 100.550 mm Purpose: PC
- Power Supply Unit (PSU) Form Factor: ATX
- 80 Plus certification: 80 PLUS Platinum Product color: Black
- Cooling: Active
- Fan diameter 13.5 cm Width 150 mm
- Depth: 160 mm
- Height: 86 mm
