Name: Chieftec PPG-1000-CW Power supply unit 1000 W ATX 80 PLUS Gold
Brand: Chieftec
SKU: 3533500

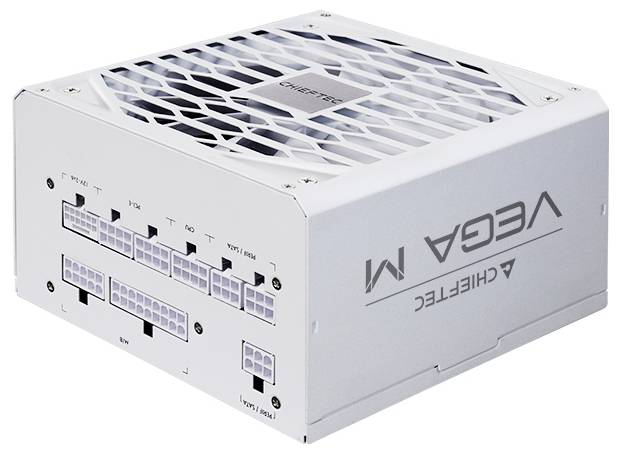

'A white Chieftain Series VEDA M power supply unit with multiple connectors. Designed for efficient performance in computer systems.'

White computer power supply unit with multiple sockets and cables for connection, featuring a ventilated top and branded with 'Chieftec'.

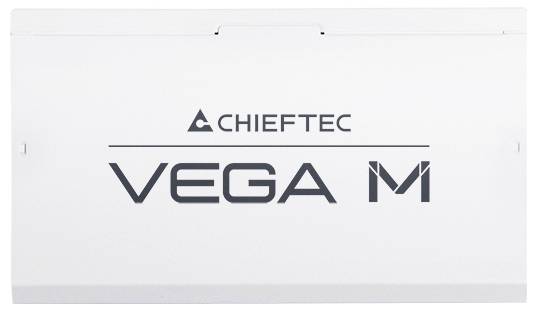

White panel displaying the text 'Chieftec VEGA M'.

'CHIEFTEC VEGA M' printed on a white surface, likely a product packaging or branding.

'Vega M' PSU with an array of white cables and a black power cord, including screws, indicating a complete power supply unit set.

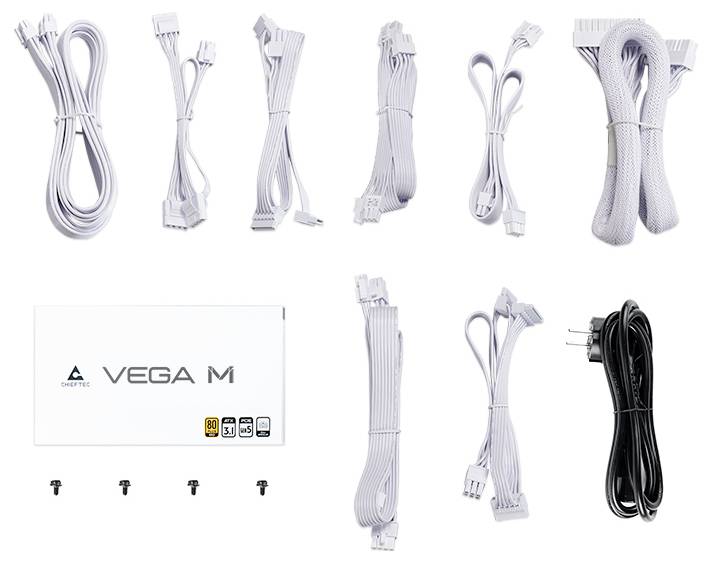

'VEGA M power supply' with white cables and connectors arranged around it. Includes screws and power cord.

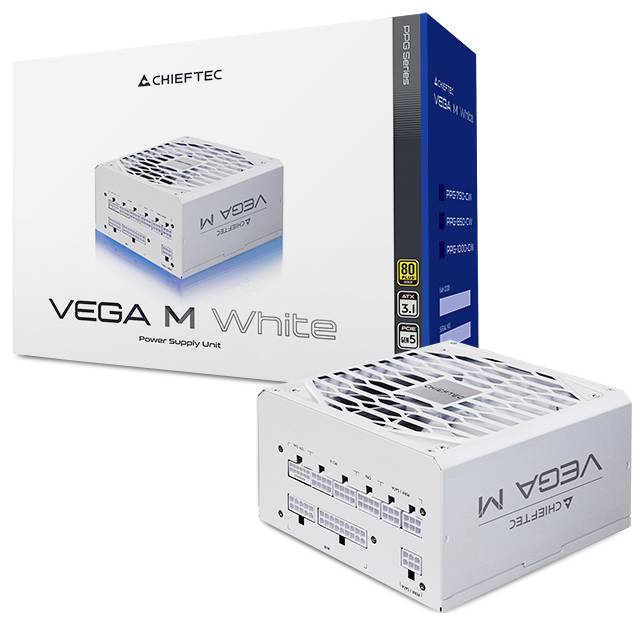

'Chieftec Vega M White power supply unit and packaging. Compact, white design with cooling vents, connectors, and key specifications displayed.'

A white Chieftec VEGA M power supply unit and its packaging, highlighting its 80 Plus Gold certification and modular connections.

1/9

Product type

Power supply unit

PSU output power

1000 W

Modular

Yes

Certification

80 PLUS Gold

Form factor

ATX

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Chieftec PPG-1000-CW Power supply unit

Power supply unit output 1000 W
PCI-Express (6+2-Pin) 4x
Cable management Yes
80 PLUS Gold

Technical specifications

80 Plus Certification 80 PLUS Gold
Fan diameter 13.5 cm

Product type: Power supply unit

PSU output power: 1000 W

Modular: Yes

Certification: 80 PLUS Gold

Form factor: ATX

Factory colour: White

Dim: (W x H x D) 150 x 85 x 150 mm

Depth: 150 mm

Height: 85 mm

Width: 150 mm

Weight: 2.807

-12V / DC: 0.3 A

+12 V/DC (1): 83.33 A

5 V DC: 20 A

+5V / DC SB: 3 A

4-pin Molex: 3

6-pin PCIe: 4

5-pin SATA: 6

Power rating: 751 W -

Cooling: Active

Fan size: 135 mm

3.3V DC: 20 A

Power supply (details): 100 - 240 V

Operating voltage: 100 - 240 V

UKCA: yes

Illumination: no

Motherboard power cable length: 60 cm

CPU power cable length: 65 cm

PCI Express power cable length: 60 cm

ATX Power connector (24-pin): yes

PCI Express connector: yes

EPS power connector (4+4 pin): yes

PCI Express power connectors (12+4 pin): 1

Number of EPS connectors: 2

EPS power connector (8-pin): yes

CPU power connector (4+4 pin): yes

Combined power (+3.3V): 100 W

Combined power (+12V): 1000 W

Combined power (+5V): 100 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 15 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3533500 Chieftec PPG-1000-CW Power supply unit 1000 W ATX 80 PLUS Gold

Description

The power supplies of the CHIEFTEC Vega M series are according to the Intel ATX 12V 3.1 standard
Built and support PCIe GEN5 with 80PLUS Gold certified efficiency. You
Will be able to convince through a competitive price-performance ratio, while
To the proven Chieftec quality. The Vega M series possesses
An LLC half-bridge converter with DC-to-DC technology to improve
Energy efficiency and stability.
The fully modular design with extra long white cables makes it for
Suitable for mainstream gamers to build their system even in larger PC casings.

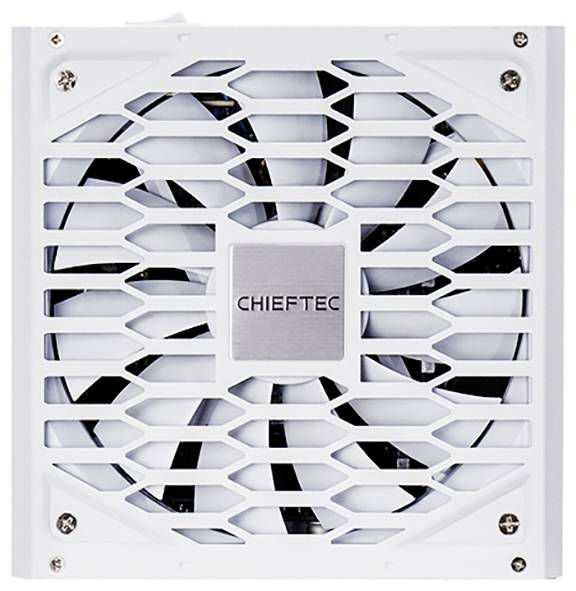

In addition, the 135-mm FDB-fan optimizes the balance between cooling power and
Volume
The Vega M series is your trustworthy, reliable choice for all
PC requirements and with all necessary, modern protection and
Security features.

This text is machine translated.
