Name: Chieftec VEGA PPG-750-S (8 PC power supply unit 750 W ATX 80 PLUS Gold
Brand: Chieftec
SKU: 3386626

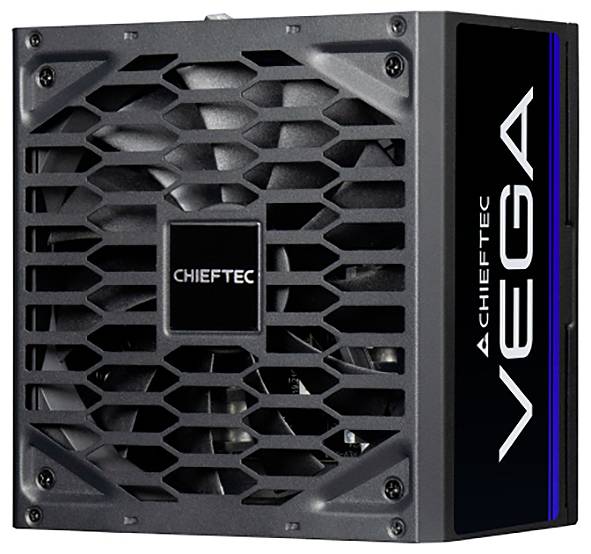

'Chieftec Vega Power Supply with Fan Grille and Blue Side Marking. Suitable for Computer Cases for Power Supply.'

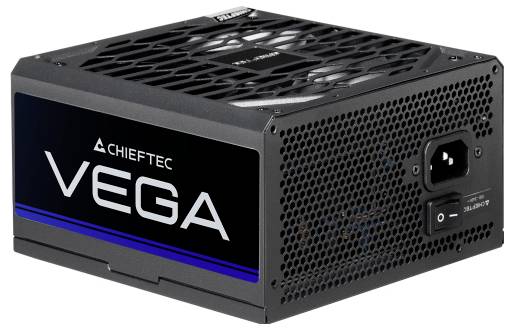

A Chieftec Vega power supply in a black housing with fan grille and on/off switch on the right side.

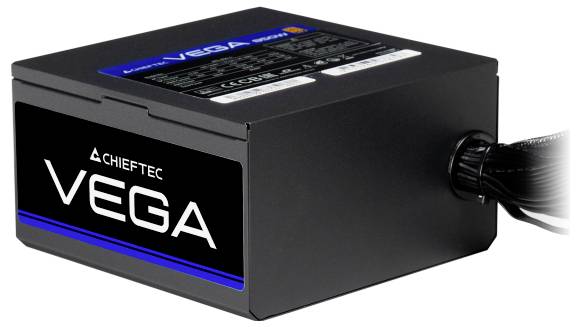

Power supply unit by Chieftec, model 'Vega', rectangular, black with cable bundle on the right side, product information at the top.

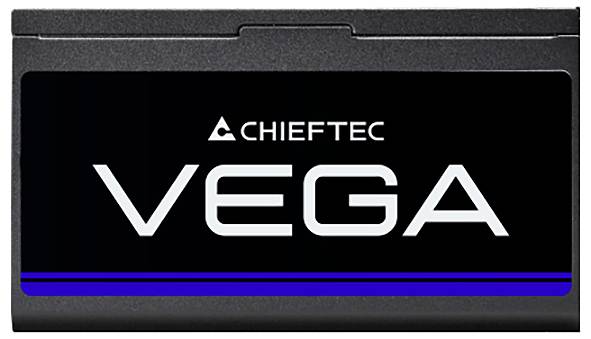

Black Chieftec case with large white 'VEGA' lettering and a blue decorative line at the bottom.

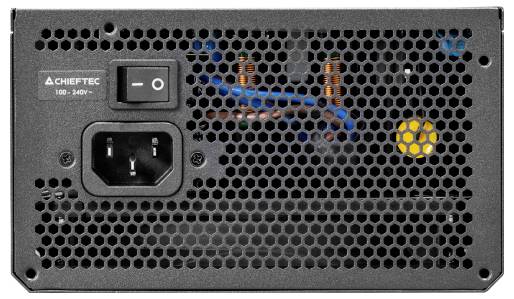

A computer power supply with a main switch and a ventilation grille. The label shows a voltage range of 100-240V.

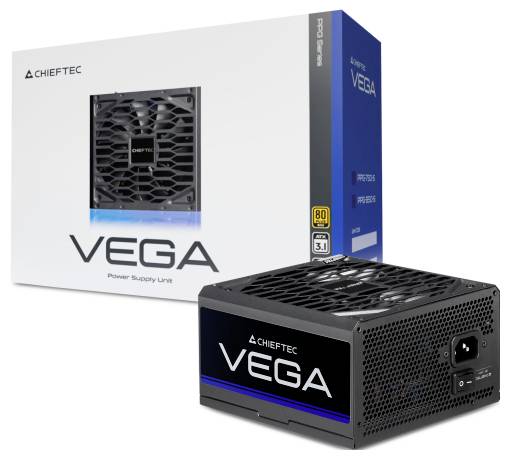

Chieftec Vega power supply in black design with a mesh grid on the upper surface. Packaging displays model image and '80 PLUS Gold' certification.

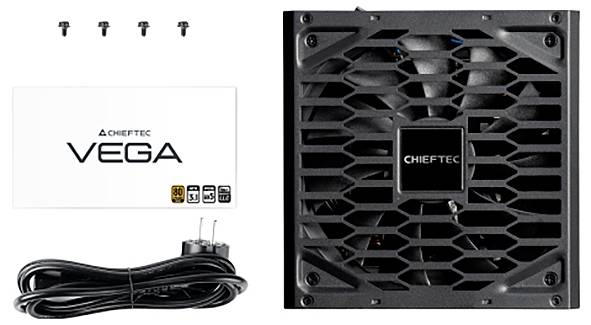

Power supply unit Chieftec Vega with accessories: power supply cable, screws, and manual. Suitable for powering computer hardware.

1/8

Product type

PC power supply unit

PSU output power

750 W

Modular

Certification

80 PLUS Gold

Form factor

ATX

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Chieftec VEGA PPG-750-S (8 PC power supply unit

Power supply unit output 750 W
PCI-Express (6+2-Pin) 4x
Cable management No
80 PLUS Gold

Technical specifications

Model PPG-750-S
Cooling system 135 mm fan
Output Ports: 1 x Power 24-pin ATX with removable 4-pin section; 1 x Power 8-pin EPS12V; 4 x 8-pin PCI Express Power; 1 x 16-pin PCI Express power supply; 6 x SATA connector; 3 x Molex
Power compatibility: PC/server

Product type: PC power supply unit

PSU output power: 750 W

Modular: No

Certification: 80 PLUS Gold

Form factor: ATX

Factory colour: Black

ATX version: ATX 3.1

Dim: (W x H x D) 15 x 8.5 x 15 cm

Depth: 15 cm

Height: 8.5 cm

Width: 15 cm

Weight: 1.96 kg

-12V / DC: 0.3 A

+12 V/DC (1): 62.5 A

5 V DC: 20 A

+5V / DC SB: 0.3 A

20+4-pin.: 1

4-pin Molex: 3

4+4 pin ATX/EPS 12V: 1

6-pin PCIe: 4

5-pin SATA: 6

Features: ATX 3.1

Power rating: 501 - 750 W

Cooling: Active

3.3V DC: 20 A

Power supply (details): 100 - 240 V

Operating voltage: 100 - 240 V

UKCA: yes

Illumination: no

Motherboard power cable length: 60 cm

CPU power cable length: 65 cm

PCI Express power cable length: 60 cm

ATX Power connector (24-pin): yes

EPS power connector (4+4 pin): yes

PCI Express power connectors (12+4 pin): 1

EPS power connector (8-pin): yes

ATX power connector (20+4 pin): yes

CPU power connector (4+4 pin): yes

Package weight: 2.46 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3386626 Chieftec VEGA PPG-750-S (8 PC power supply unit 750 W ATX 80 PLUS Gold

Description

The PPG-750-S power supply from the VEGA series from Chieftec offers a power of 750 watts and is thus a good choice for different computer requirements. It features comprehensive protection features, including overcurrent, overload and short-circuit protection, and ensures safe operation and a long lifetime of the components. It comes with modular cables such as a 8-pin EPS12V, SATA Express, Molex power cable and a 16-pin PCIe 5.0 cable that provide connection possibilities and at the same time ensure a clean and efficient setup. This power supply fulfills ATX12V 3.1 specifications and possesses a 80 PLUS Gold certification, which indicates energy efficiency. The automatic fan speed control and a 135 mm fan provide effective heat management and reliable performance even with high load.

This text is machine translated.
