Cimco 177536 Squeezer set
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Squeezer set
- Manufacturer part #
177536
- Length
350 mm
- Width
316 mm
- Height
73 mm
- Dim
(L x W x H) 350 x 316 x 73 mm
- Weight
2.24 kg
- Content
1 Set
Documents & Downloads
Datasheet
Datasheet 3827502 Cimco 177536 Squeezer set
User & Safety Instructions
User & Safety Instructions 3827502 Cimco 177536 Squeezer set
Description

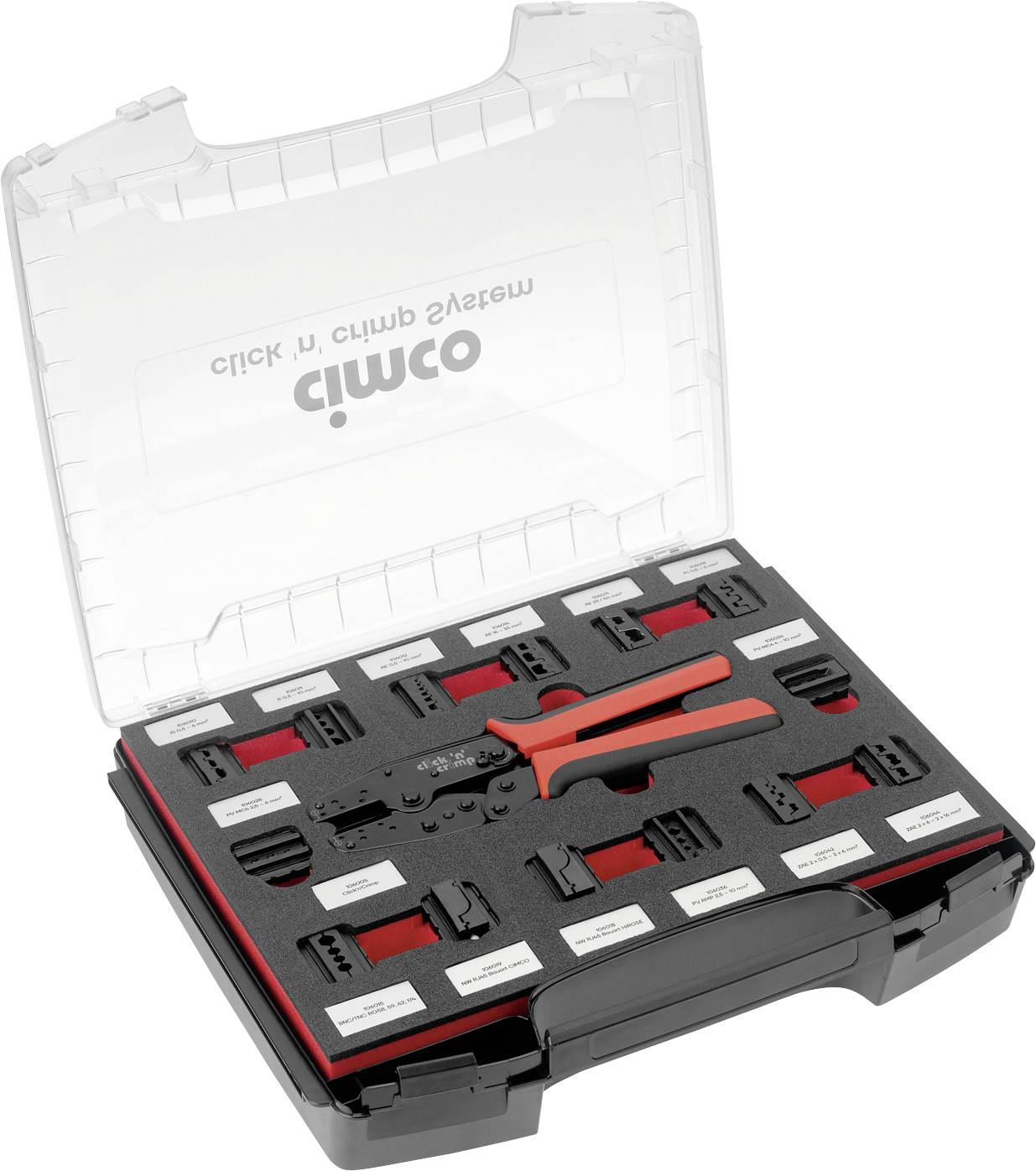

Complete Click n crimp pliers set with crimping pliers body and 14 changeable inserts for various crimping applications. Suitable for cable lugs, wire-end sleeves, RJ45, coaxial and solar connectors. Supplied in i-Boxx with foam inserts and identification plates.
The Click n Crimp crimping pliers set is a modular structured complete system for professional crimp applications in electrical installation, network technology, workshop and industry. The set includes the press pliers body and 14 different changeable inserts, which cover a wide range of applications.
The crimp profile inserts are each designed as a pair of upper and lower profile jaws and can be replaced according to the respective application. Thus, the set is suitable for use with insulated and non-insulated cable shoes, wire-end sleeves, twin wire-end sleeves, flat plugs, RJ45 plug connectors, Coaxial plugs as well as solar plug connectors.

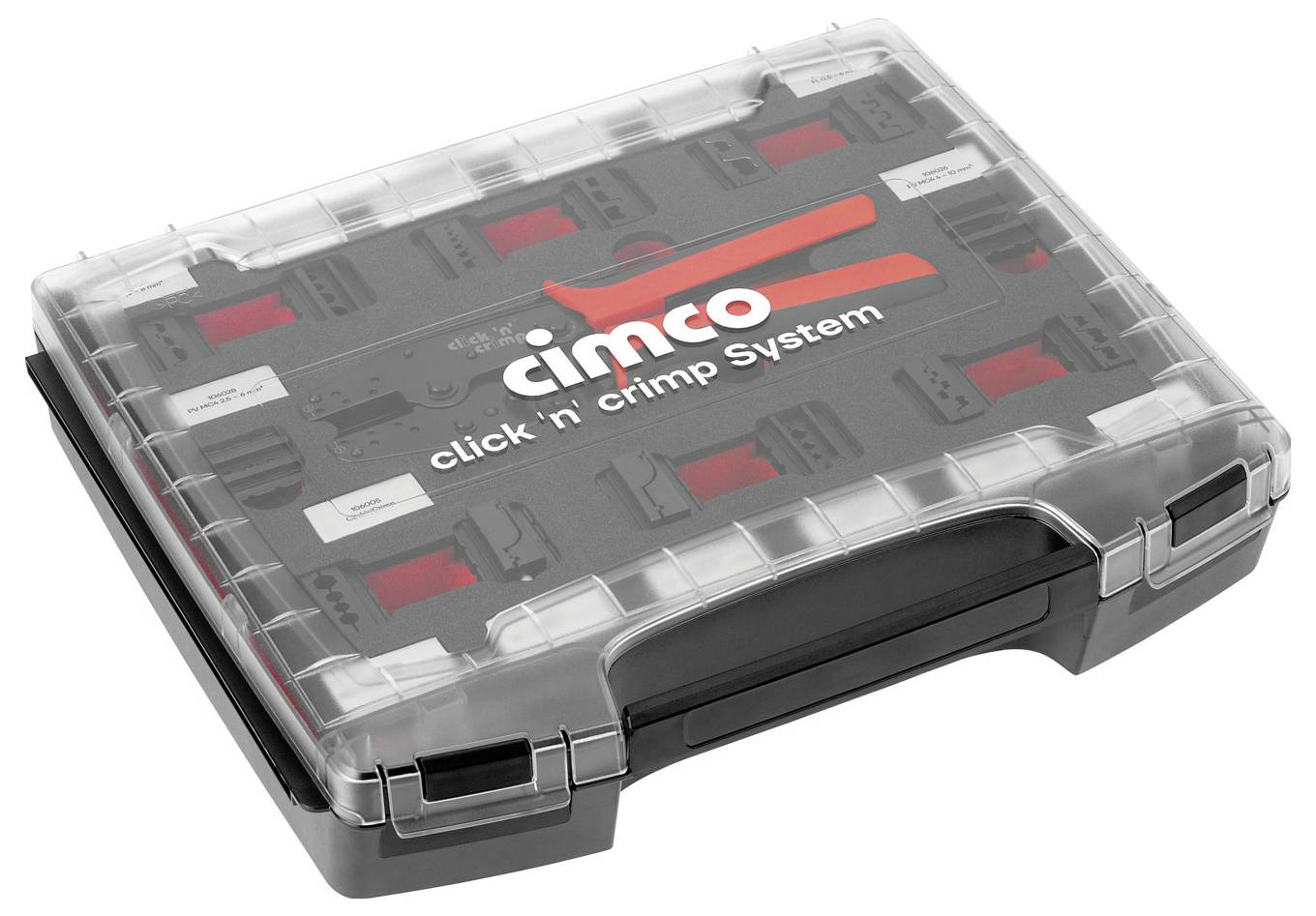

All components are clearly housed in a sturdy i-Boxx with Foam inserts. In addition, labels facilitate the individual assignment of inserts and support a structured organization in the workplace or in mobile use.
This text is machine translated.
The Click n Crimp crimping pliers set is a modular structured complete system for professional crimp applications in electrical installation, network technology, workshop and industry. The set includes the press pliers body and 14 different changeable inserts, which cover a wide range of applications.
The crimp profile inserts are each designed as a pair of upper and lower profile jaws and can be replaced according to the respective application. Thus, the set is suitable for use with insulated and non-insulated cable shoes, wire-end sleeves, twin wire-end sleeves, flat plugs, RJ45 plug connectors, Coaxial plugs as well as solar plug connectors.
All components are clearly housed in a sturdy i-Boxx with Foam inserts. In addition, labels facilitate the individual assignment of inserts and support a structured organization in the workplace or in mobile use.
This text is machine translated.

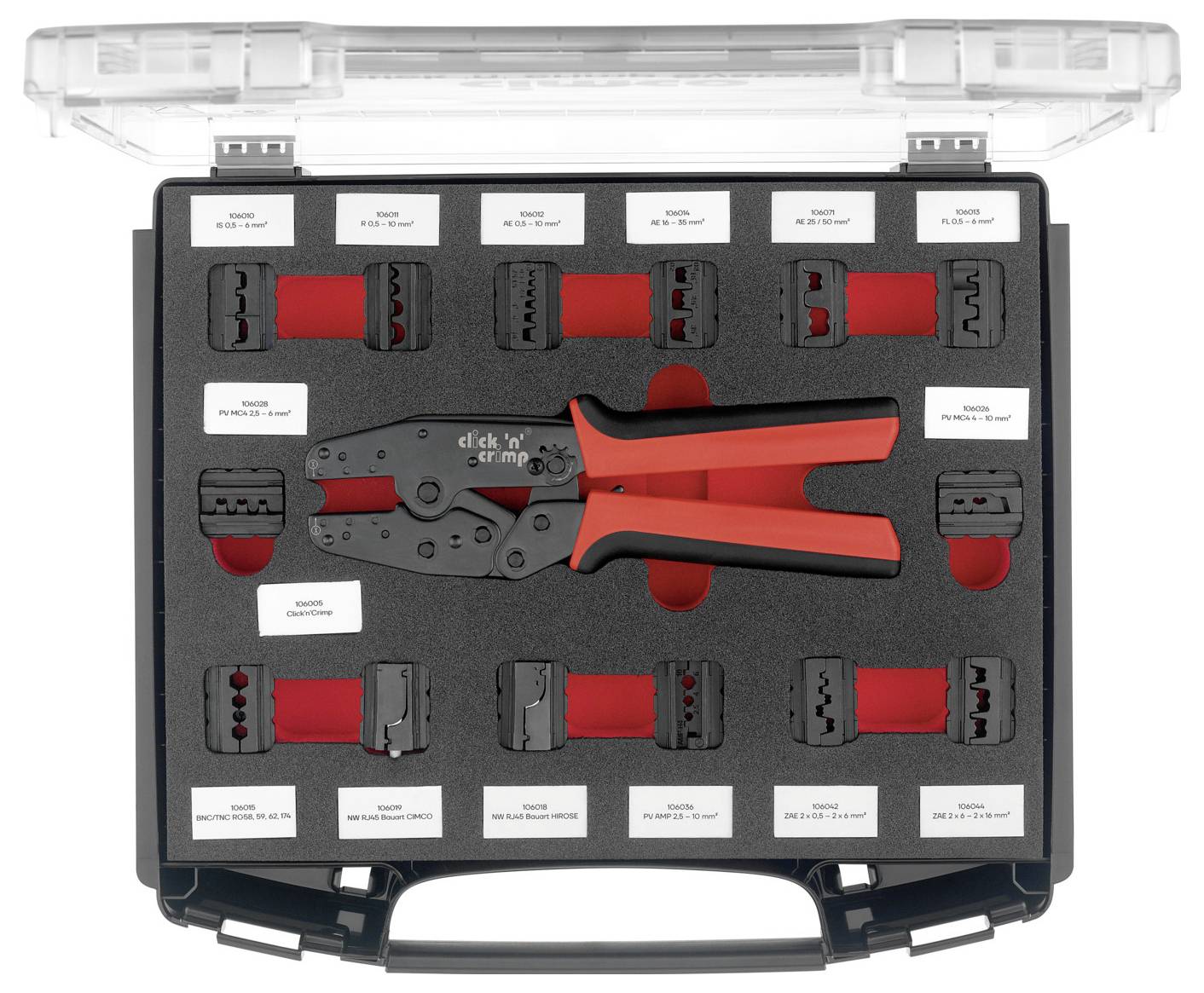

Features
- 10 6005 – Click N crimp pliers, press pliers body without crimp profile inserts
- 10 6010 – Press profile inserts for insulated cable lugs, 0.5–6 mm², oval compression (W)
- 10 6011 – Non-insulated cable shoe press profile inserts, 1.5–10 mm², indent crimping (N)
- 10 6012 – Pressed profile inserts for insulated and non-insulated wire end sleeves, 0.5–10 mm², trapeze (B)
- 10 6014 – Pressed profile inserts for insulated and non-insulated wire end sleeves, 16–35 mm², trapezoidal identification pressing (D2)
- 10 6071 – Replacement profile for wire-end sleeves, 25 and 50 mm², trapezoidal identification pressing
- 10 6013 – Pressure profile inserts for non-insulated male and female spade connectors, 0.5–6 mm², roll pressing (C)
- 10 6015 – Press profile inserts for BNC/TNC coaxial connectors, hexagonal pressing (A)
- 10 6019 – Press profile inserts for shielded RJ45 plugs (8P8C), Cimco type (M2)
- 10 6018 – Pressing profile inserts for shielded RJ45 plugs (8P8C), model HIROSE TM 11/21 (M1)
- 10 6036 – Pressed profile inserts for AMP-H4 type solar connectors, 2.5–10 mm²
- 10 6042 – Press profile inserts for twin wire-end sleeves, 2 x 0.5 to 2 x 6 mm²
- 10 6044 – Press profile inserts for twin wire-end sleeves, up to 2 x 16 mm²
- 10 6026 – Pressed profile inserts for solar connectors, 4–10 mm², MC4 compatible
- Identification plates for labeling the inserts
- I-Boxx with Foam inserts
Scope of delivery
- Press pliers set, complete with 14 interchangeable inserts
