1/2
Cimco CTW 100, 1/2" 115151 Torque wrench 1/2" (12.5 mm) 20 - 100 Nm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

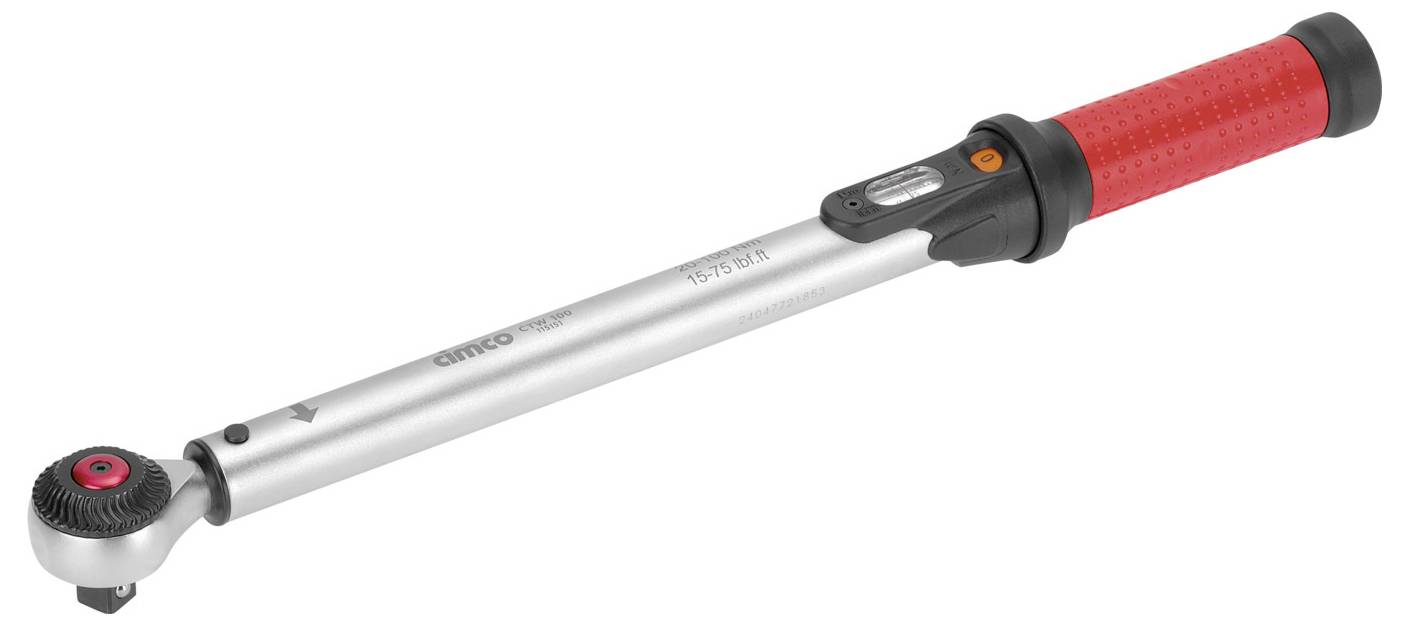

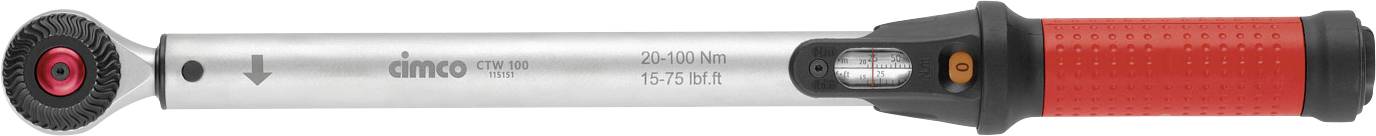

TORQUE WRENCH CTW 100 20-100 NM
- Torque range 20-100 Nm
- Torque tolerance ±3 %
- 1/2-inch 72-tooth quick release ratchet
- Forward/reverse operation
- Micrometer scale and double scale for Nm and lbf-ft
- Ergonomic handle
Technical specifications
- Product type
Torque wrench
- Downforce
1/2" (12.5 mm)
- Torque (min.)
20 Nm
- Torque (max.)
100 Nm
- Trigger accuracy
3 %
- Length
445 mm
- Weight
1.44 kg
- Width
45 mm
- Height
45 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3827403 Cimco CTW 100, 1/2" 115151 Torque wrench 1/2" (12.5 mm) 20 - 100 Nm
User & Safety Instructions
User & Safety Instructions 3827403 Cimco CTW 100, 1/2" 115151 Torque wrench 1/2" (12.5 mm) 20 - 100 Nm
Description
The CTW 100 is designed for precision screwdriving in low torque applications and is designed for daily work.
This text is machine translated.
This text is machine translated.
Features
- 1 × Torque wrench CTW 100 (single tool in standard single packaging)
- Integrated 72-tooth 1/2-inch quick-release ratchet
- Reversible mechanism for right-and left-hand rotation
Scope of delivery
- TORQUE WRENCH CTW 100 20-100 NM
