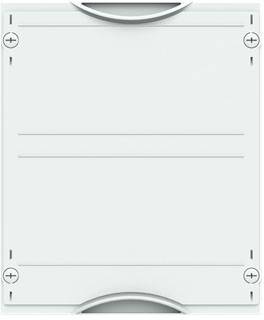

Circuit breaker switch module Plastic 160 A Striebel & John 2CPX041376R9999
Product type
Circuit breaker switch module
Number of pins
3.4
Nominal current - rounded value
160 A
Dim
(W x H x D) 250 x 300 x 200 mm
Nominal current
160 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 300
- Width 250
- With cover: Yes
- Number of pins: 3.4
- Depth: 200
- Number of switches: 0
- Rated operating current 160
- Suitable for zero voltage switches: No.
- Suitable for switch: No.
- Plastic cover plate: Yes
- Fitted with switch disconnectors: No.
- Circuit breaker fitted: No.
- Equipped with zero voltage switch: No.
- Fitted with switch: No.
- With distributor terminals: Yes
- Suitable for switch disconnectors: Yes
- Suitable for circuit breakers: No.
- Product type
Circuit breaker switch module
- Number of pins
3.4
- Dim
(W x H x D) 250 x 300 x 200 mm
- Nominal current
160 A
- Nominal current - rounded value
160 A
- Material
Plastic
- Width
250 mm
- Height
300 mm
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327182 Circuit breaker switch module Plastic 160 A Striebel & John 2CPX041376R9999
User & Safety Instructions
User & Safety Instructions 2327182 Circuit breaker switch module Plastic 160 A Striebel & John 2CPX041376R9999
Description
Interior fittings module, CombiLine, mounted in the cabinet, for OT switch disconnectors unfitted, 2 RE latching unit = 300 mm, field width 1 = 250 mm, 24 space units, , usable width of 216 mm, unfitted for the installation of 1 LV HRC switch disconnectors OT160G, for 3.4-pin busbar system, rated current in max. 160 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
