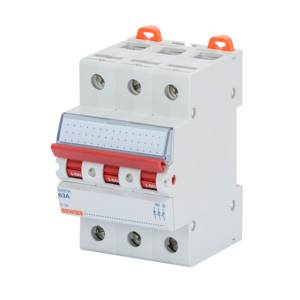

Circuit breakers 50 mm² 63 A 3 makers 415 V AC Gewiss GW96126
EAN:
Part number:
Item no:
Product type
Circuit breakers
Nominal voltage
415 V AC
Number of pins
3
Nominal current - rounded value
63 A
Contact type
3 makers
Technical specifications
- Product type
Circuit breakers
- Contact type
3 makers
- Nominal voltage
415 V AC
- Cross section
50 mm²
- Number of pins
3
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of partitions
3
AC
Off switch
FALSE
72 mm
63 A
415 V
3
3
Other
415 V
IP40
0
3
0
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3120972 Circuit breakers 50 mm² 63 A 3 makers 415 V AC Gewiss GW96126
Description
Circuit breaker switch according to EN 60947-3 as series installation device. Usage category AC-22B. On the left side up to 2 auxiliary switches can be installed. The shift lever can be sealed off and on or with a lever lock (accessories separate Order) for padlock. Connection (max) 50 mm2 You can use the appropriate comb rails for wiring
