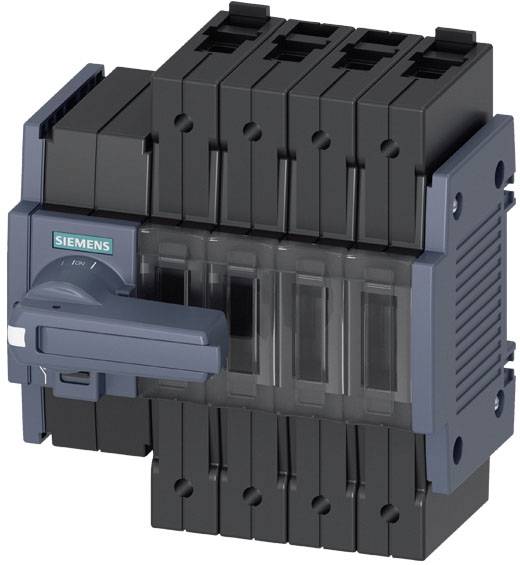

Circuit breakers Grey 100 A 4 change-overs Siemens 3KD30422ME100
Product type
Circuit breakers
Number of pins
4
Nominal current - rounded value
100 A
Contact type
4 change-overs
Operating voltage
1000 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Display design / for switch position indicator for manual mode: ON-OFF TEST
- Design of electrical connection for main circuit: Frame terminal
- Design size of the circuit breaker: 1
- Screw and DIN rail mounting 35 mm
- Floor mounting: Yes
- Insulation voltage 1000 V
- Locking: Yes
- Protection class: IP20
- Ambient temperature during operation: -25 °C - +70 °C
- Power loss max. 10 W.
- Mechanical life (cycles) / typical: 15000
- Surge voltage resistance: 8 kV
- Product type
Circuit breakers
- Contact type
4 change-overs
- Operating voltage
1000 V AC
- Factory colour
Grey
- Number of pins
4
- Dim

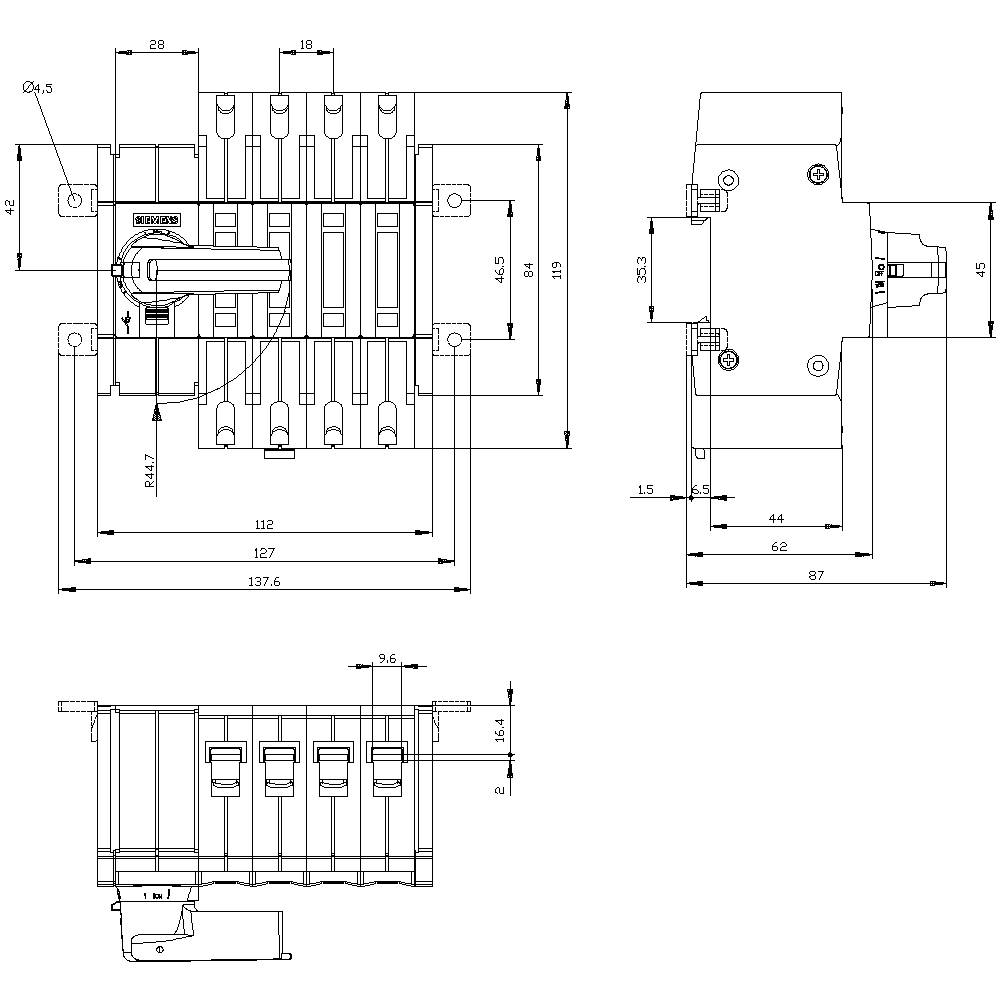

(W x H x D) 112 x 119 x 87 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Type
Front wheel drive
- Width
112 mm
- Height
119 mm
- Depth
87 mm
0
0
100 A
4
IP20
4
1
TRUE
FALSE
Frame clamp
FALSE
Long turning handle
TRUE
TRUE
TRUE
45 kW
3 kA
Grey
TRUE
FALSE
FALSE
TRUE
TRUE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
100 A
55 kW
FALSE
80
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2263578 Circuit breakers Grey 100 A 4 change-overs Siemens 3KD30422ME100
User & Safety Instructions
User & Safety Instructions 2263578 Circuit breakers Grey 100 A 4 change-overs Siemens 3KD30422ME100
Description
Switch disconnectors 100A, design. 1, 4-pole front-wheel drive left complete unit with direct drive gray frame terminal switch disconnectors 3KD up to 1600 A as powerful main, emergency-OFF or repair switch. 3KD switch disconnectors up to 1600 A from Siemens offer reliable personal protection and guarantee high plant availability in industry, infrastructure and buildings. As main, emergency STOP or repair switches, 3KD switch disconnectors reliably switch electrical equipment under load and offer a safety isolating function and distance in low-voltage circuits. 1. Reliable protection against power surges. 2. Robust technology for high plant availability. 3. Versatile use with variable connection and drive types. 4. Easy to re-install additional functions thanks to extensive accessories 5. Quick mounting on a DIN rail for sizes up to 200 A. 6. Efficient engineering thanks to extensive CAx data. 7. Easy documentation with the manual configurator. 8. Suitable for wind power and solar systems.
