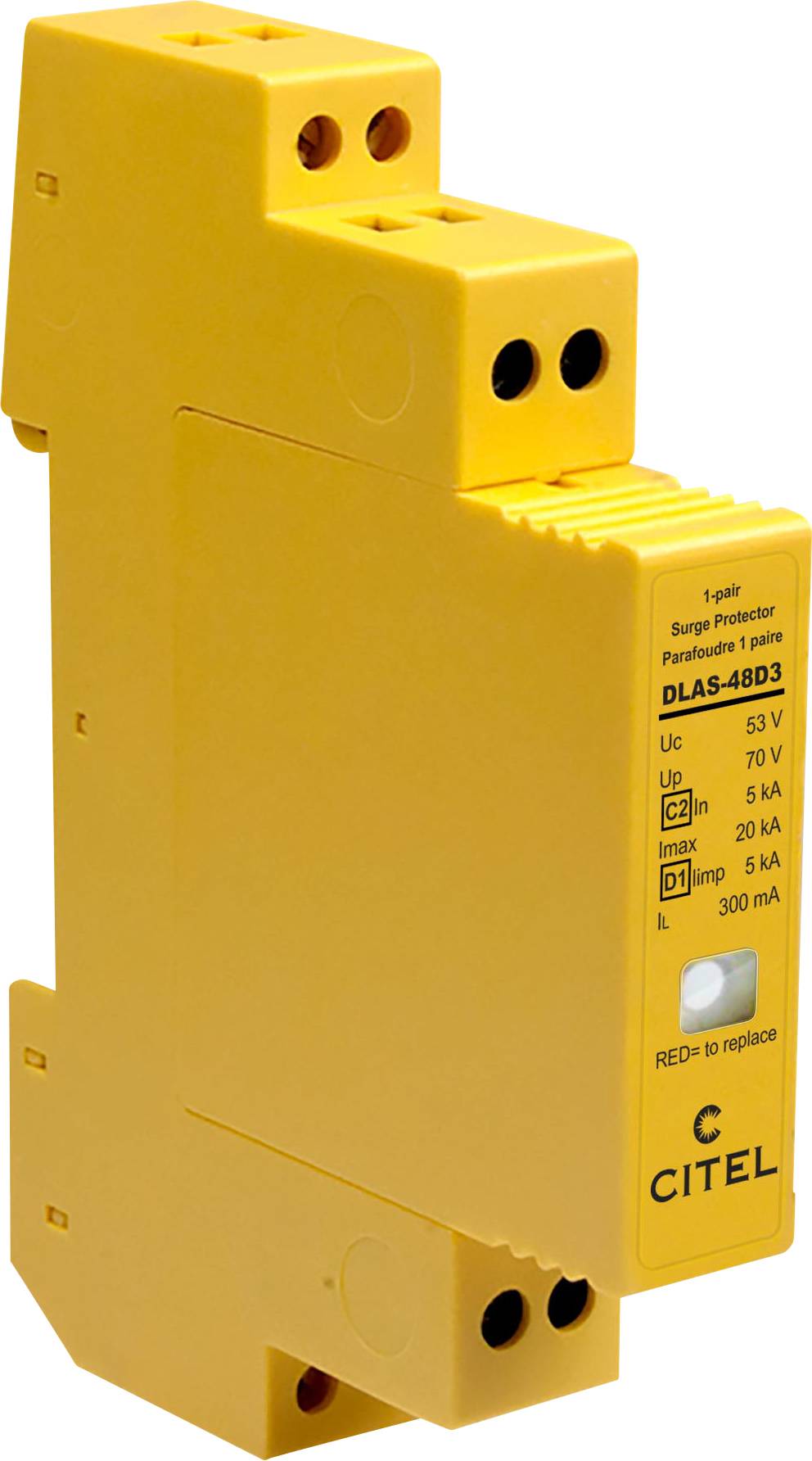

Citel 641304 DLAS-48D3 Surge protection module Surge protection for: Switchboards 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Overvoltage protection for signal lines
- With status display
- Plug-in module
- APPLICATION: ISDN-S0 48 V.
Technical specifications
- Connection type: Lift terminal min. 0.4 mm² / max. 1.5 mm²
- Spring-loaded min. 0.4 mm² / max. 1.5 mm² (/R)
- Failure behavior optical error display / red
- Mounting on 35 mm DIN rail
- Thermoplastic casing material UL94-V0
- DLAS : Version with optical error display
- Product type
Surge protection module
- Surge protection for
Switchboards
- Leakage current
20 kA
- Nominal voltage
48 V
- Pick-up time (details)
1 ns
- Operating temperature
-40°C/+85 °C
IP20
- Manufacturer part #
641304
- Factory colour
Yellow
- Standards
EN 61643-21, IEC 61643-21, UL497A
- Dim
(W x H x D) 13 x 90 x 65 mm
- Width
13 mm
- Height
90 mm
- Depth
65 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357950 Citel 641304 DLAS-48D3 Surge protection module Surge protection for: Switchboards 20 kA 1 pc(s)
Description
Overvoltage protection for 1 double-loader, 2-stage protective circuit consisting of coarse and fine protection, two-part design, optical error signaling, protected shield connection, earthing via DIN rail or screw terminal, mounting on 35 mm DIN rail.
This text is machine translated.
This text is machine translated.
Features
- Only 13 mm wide
- Plug-in protection module
- With optical error display
- For MSR, telecommunication and data technology applications
- Protected shield connection
- Earthing via DIN rail or lift clamp
- Complies with IEC 61643-21 / EN 61643-21 and UL standards 497A
