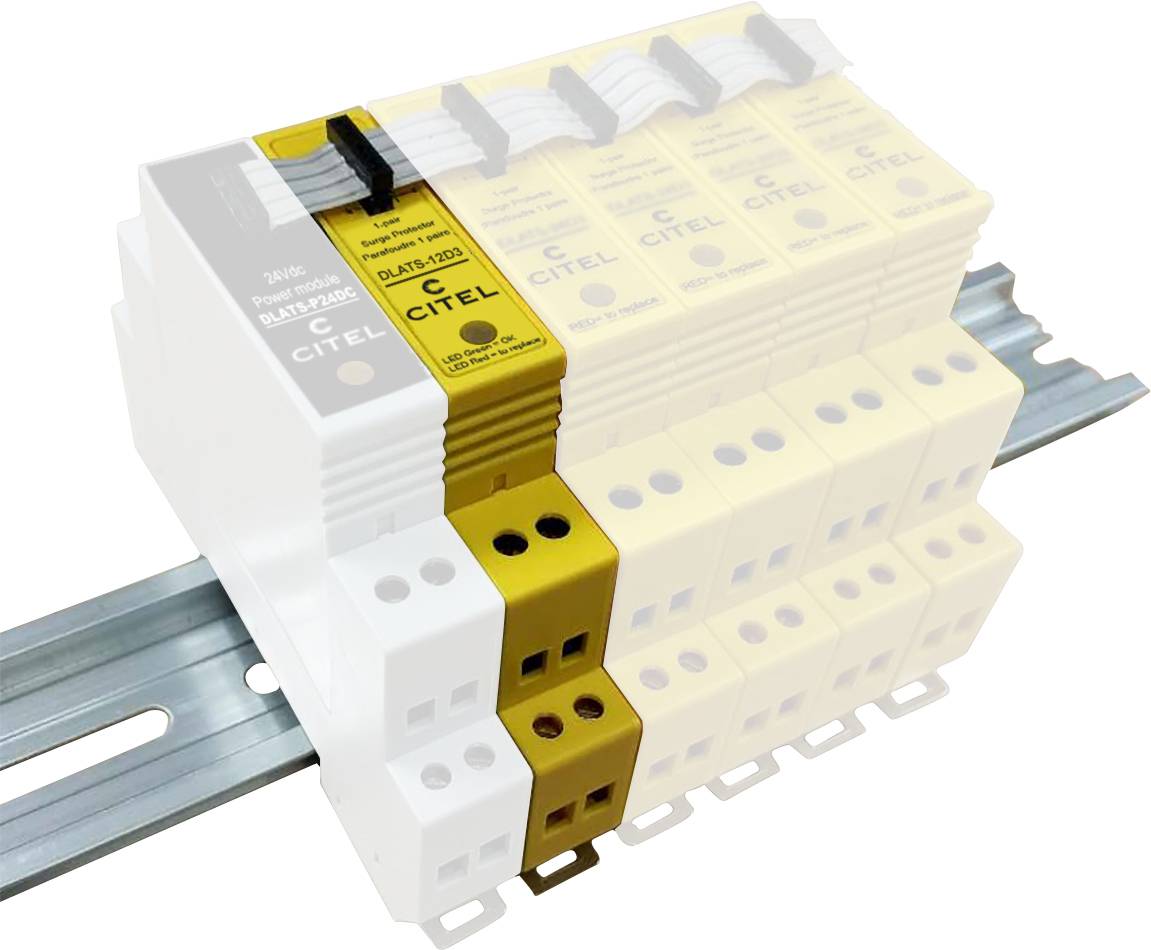

Citel 6414021 DLATS-12D3 Surge protection module Surge protection for: Switchboards 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Overvoltage protection for signal lines
- Remote signaling
- Plug-in module
- Application RS232, RS485
Technical specifications
- Elevator terminal min: 0.4 mm² / max.: 1.5 mm²
- Spring-loaded min. 0.4 mm² / max. 1.5 mm² (/R)
- Status display Green LED
- Remote signaling yes
- Mounting on 35 mm DIN rail
- Thermoplastic casing material UL94-V0
- Product type
Surge protection module
- Surge protection for
Switchboards
- Leakage current
20 kA
- Nominal voltage
12 V
- Pick-up time (details)
1 ns
- Operating temperature
-40°C/+85 °C
IP20
- Manufacturer part #
6414021
- Factory colour
Yellow
- Standards
EN 61643-21, IEC 61643-21, UL497A, GB
- Dim
(W x H x D) 13 x 90 x 65 mm
- Width
13 mm
- Height
90 mm
- Depth
65 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357952 Citel 6414021 DLATS-12D3 Surge protection module Surge protection for: Switchboards 20 kA 1 pc(s)
Description
Overvoltage protection for 1 double loader, 2-stage protective circuit consisting of coarse and fine protection, remote signaling via DLATS-P24DC control module, mounting on 35 mm top hat profile rail.
This text is machine translated.
This text is machine translated.
Features
- Pair with shielded wire protection
- DIN-rail mounting
- Plug-in protection module
- Signaling of SPD status (function/failure)
- Remote signaling of SPD status
- Maximum discharge current: IMAX= 20 kA
- Complies with IEC 61643-21 / EN 61643-21 / UL standards 497A and GB 18802.21
