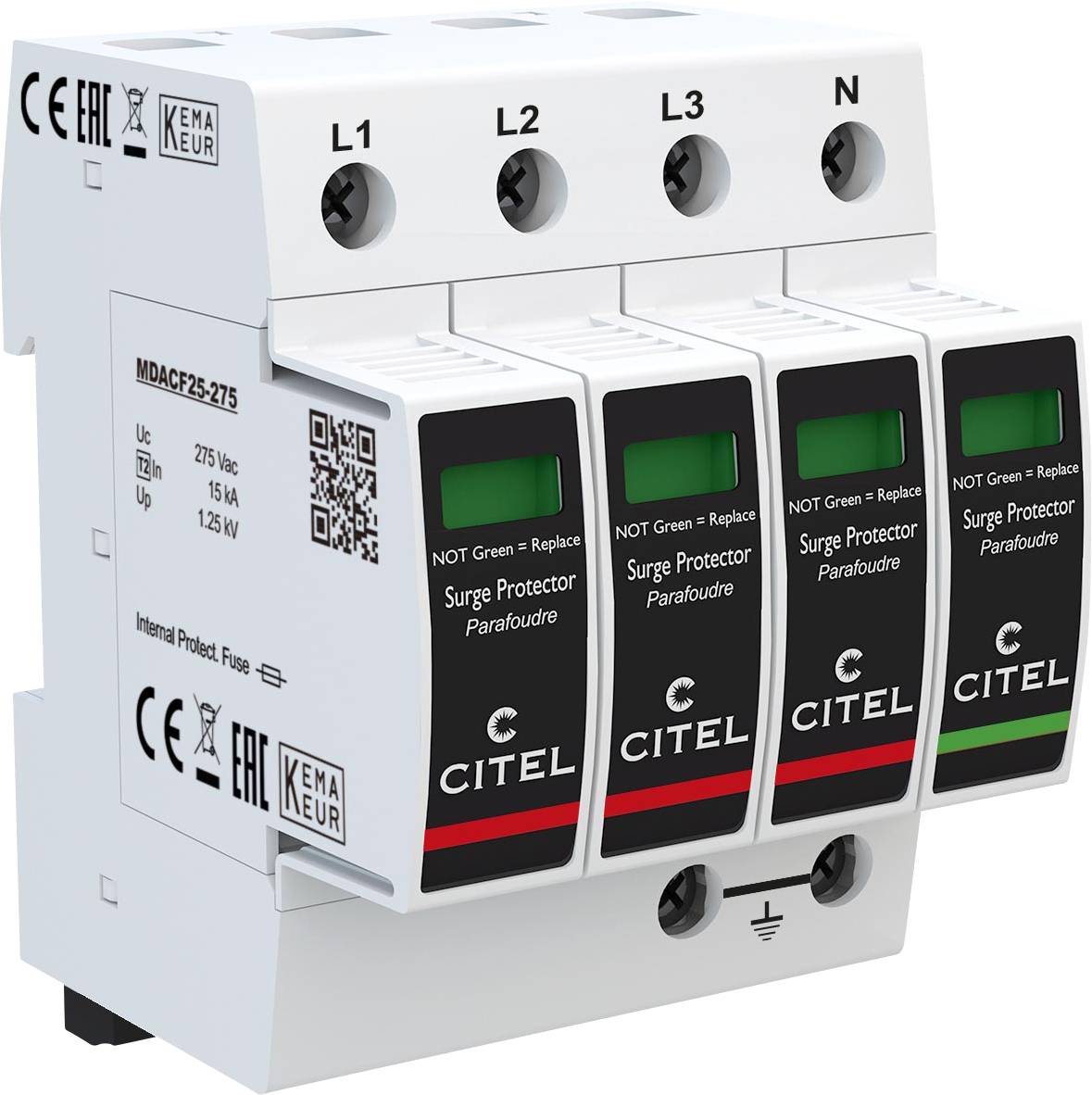

Citel 821410244 DACF25S-31-275 Surge protection module Surge protection for: Switchboards 25 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Surge protection AC type 2 for TT and TNS networks 4-pin
- Integrated backup fuse
- Modules can be plugged in
- Remote signaling
- 230/400 V 3-phase
- N TT-TNS SYSTEMS (3+1)
Technical specifications
- Internal thermal separation device
- Max. Pre-fuse integrated
- equivalent to 63 A (GL/GG)
- Ground fault circuit breaker type "S" or time-delayed
- Connection type 2.5-25 mm² (35 mm²)
- Failure behavior separation from the network
- Status display mechanical, green / red
- Remote signal signaling (FS) potential-free changeover contact
- SWITCHING CAPACITY MAX. 250 V/0.5 A (AC) / 30 V/2 A (DC)
- Connection cross-section FS max. 1.5 mm² single/multi-wire
- Mounting on 35 mm DIN rail, EN 60715
- Thermoplastic UL-94-V0
- Product type
Surge protection module
- Surge protection for
Switchboards
- Leakage current
25 kA
- Nominal voltage
230 V
400 V
- Pick-up time (details)
20 ns
- Operating temperature
-40 °C /+85 °C
IP20
- Manufacturer part #
821410244
- Factory colour
White
- Standards
DIN EN61643-11, IEC 61643-11, UL 1449 ed.4 Certified IEC 61643-11
- Dim
(W x H x D) 72 x 90 x 73 mm
- Width
72 mm
- Height
90 mm
- Depth
73 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357928 Citel 821410244 DACF25S-31-275 Surge protection module Surge protection for: Switchboards 25 kA 1 pc(s)
Description
4-pole (3+1), modular type 2 arrester with integrated fuse for use in sub-distribution.
This text is machine translated.
This text is machine translated.
Features
- Surge protection type 2 with integrated fuse
- Conductivity per pole: In= 15 kA; Imax= 25 kA
- Safe separation device
- Plug-in protection modules
- Remote signaling as standard
- Complies with the standards IEC 61643-11 and EN 61643-11
