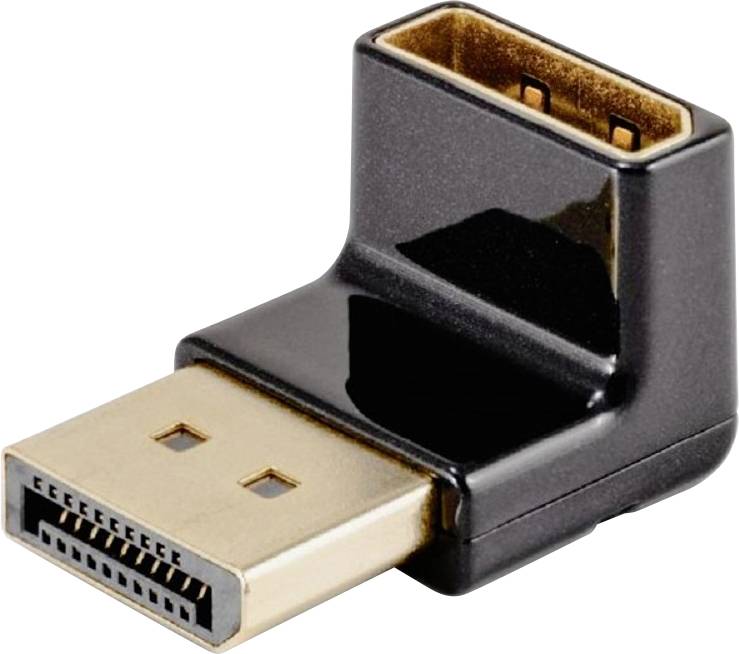

club3D CAC-1008 DisplayPort Adapter [1x DisplayPort plug - 1x DisplayPort socket] Black 0 cm
EAN:
Part number:
Item no:
Highlights & Details
club3D CAC-1008 DisplayPort Adapter [1x DisplayPort plug - 1x DisplayPort socket] Black 0 cm
- 90-degree angle/ angled up and down
- Display port 1.4 HBR3
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
DisplayPort
- No. of A connectors
1 x
- Type A
DisplayPort plug
- No. of B connections
1 x
- Type B
DisplayPort socket
- Cable length
0 cm
- Factory colour
Black
- Video resolution
7680 x 4320 Pixel
- Connector version
angled
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Resolutions (max.)
UHD 4K @ 120 Hz
- DisplayPort version
DisplayPort 1.4
- Cable specs
DisplayPort 1.4
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3361838 club3D CAC-1008 DisplayPort Adapter [1x DisplayPort plug - 1x DisplayPort socket] Black 0 cm
Description
The Club 3D CAC-1008 DisplayPort male to DisplayPort 1.4 female 90 degree adapter 4K120Hz M/F is a versatile angled plug adapter that offers cable management solutions. This adapter helps you avoid blocking other ports on your host device. This can also be a simple solution to prevent other connectors from blocking and/or bending cables when the display port is in a tight position. This kit contains 1 adapters and can be used universally for display resolutions of up to 4096*2160 at 120Hz or 7680*4320 at 30Hz. The adapters are verified with Club 3D products and support these resolutions. It is important that the source and screen support DP1.4 and the cables are also designed for this bandwidth.
This text is machine translated.
This text is machine translated.
Features
- 90-degree angle/ angled up and down
- Easy connection of your host cable
- Doesn't block your other ports
- Supports DisplayPort 1.4 HBR3 with a maximum video resolution of up to 4K120Hz or 8K30Hz
- Supports DisplayPort 1.4 and backward compatible with older versions
- Transmission speed 16.2Gbps/2.7 Gbps/5.4Gbps / 8.1 Gbps
- Minimum signal loss
