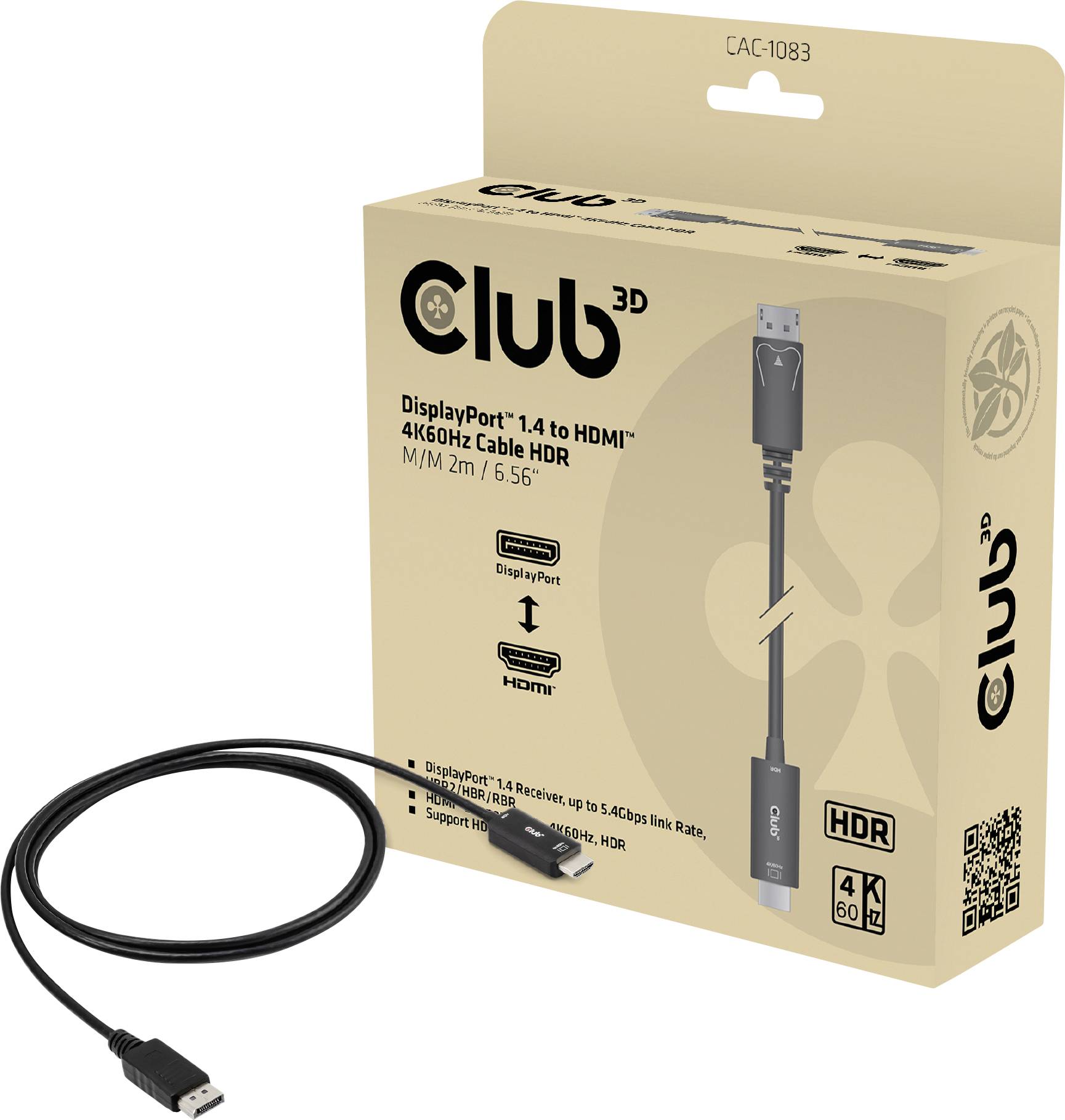

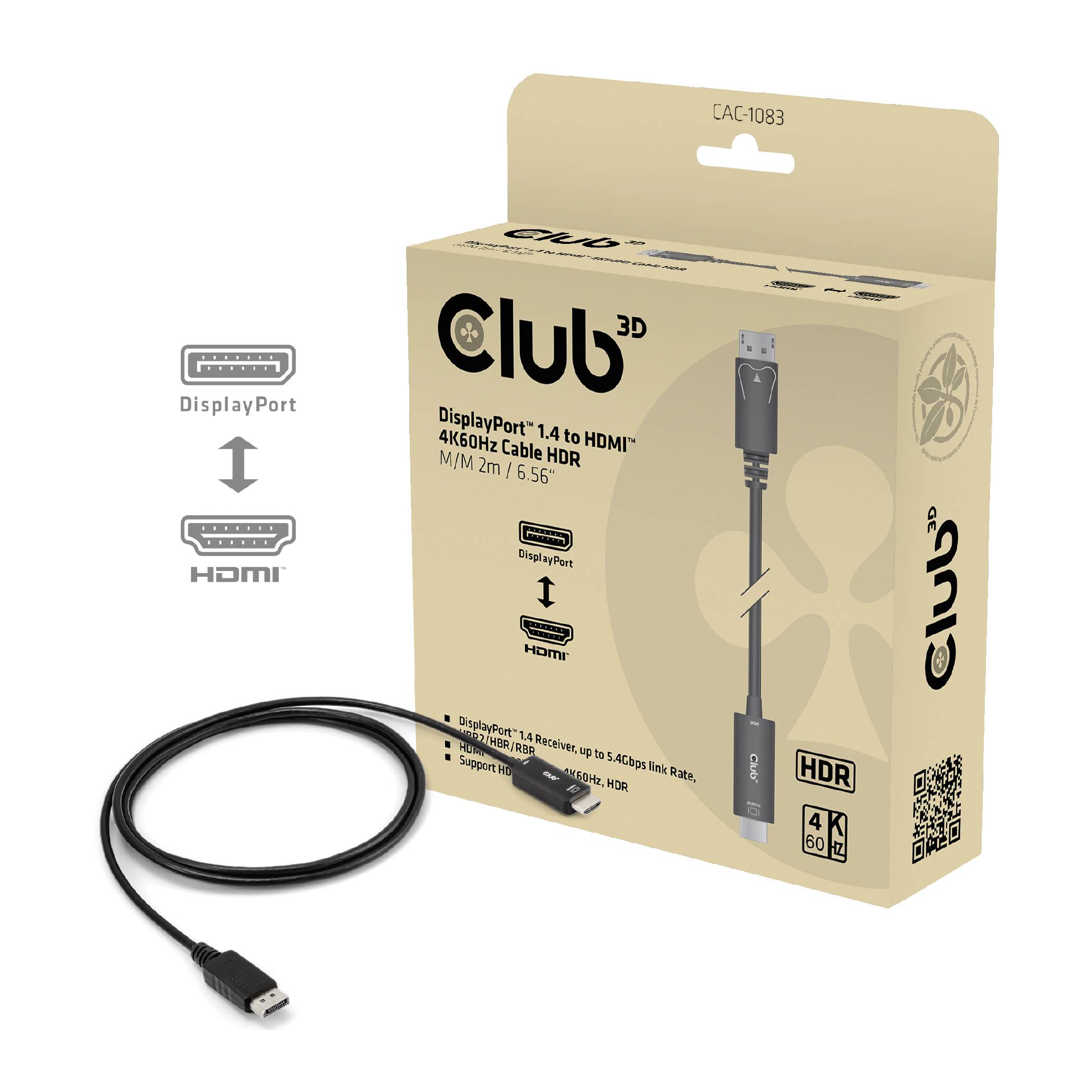

club3D CAC-1083 DisplayPort / HDMI Adapter cable [1x DisplayPort plug - 1x HDMI plug] Black 2.00 m
EAN:
Part number:
Item no:
Highlights & Details
club3D CAC-1083 DisplayPort / HDMI Adapter cable [1x DisplayPort plug - 1x HDMI plug] Black 2.00 m
- Supports DisplayPort™ 1.4 input, HDMI™ output
- DisplayPort™ 1.4 receiver
- HDMI™ supports up to 4K60HZ, HDR
- Supports HDCP 2.2
- Supports CEC
Technical specifications
- Weight: 114gr.
- Product type
DisplayPort
- Connection type
DisplayPort
HDMI
- No. of A connectors
1 x
- Type A
DisplayPort plug
- No. of B connections
1 x
- Type B
HDMI plug
- Cable length
2.00 m
- Factory colour
Black
32
- Cable use
DisplayPort
PC
Laptop
TV/monitor
- Version
Adapter cable
- Range of use
Monitors/TV adapters
- Resolutions (max.)
HDR 4K @ 60 Hz
- DisplayPort version
DisplayPort 1.4
- Signal flow direction
Unidirectional (uni)
- Cable specs
DisplayPort 1.4
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3387310 club3D CAC-1083 DisplayPort / HDMI Adapter cable [1x DisplayPort plug - 1x HDMI plug] Black 2.00 m
Description
The Club 3D CAC-1083 is a DisplayPort™ 1.4 to HDMI™ 4K60Hz cable with HDR St/St 2m 32 AWG converter. It supports playback of HDR video quality and low color media content. The DisplayPort™ receiver supports up to 5.4 Gbps per lane via 4 lanes. The HDMI™ output is fully compliant with the HDMI™ specification.The CAC-1083 supports UHD resolutions up to 4096 x 2160p at 60 Hz. Color formats It supports RGB/YCbCr video color formats with a color depth of 12bpc, as long as it fits the DisplayPort™ and HDMI™ link bandwidth. The CAC-1083 also supports HDR with a color depth of up to 12 bpc at 4K 60Hz. Note: For HDR to work, the source system must support DisplayPort 1.4 and the monitor must provide HDR support.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x CAC-1083 DisplayPort™ 1.4 to HDMI™ 4K60HZ cable with HDR M/M 2m
