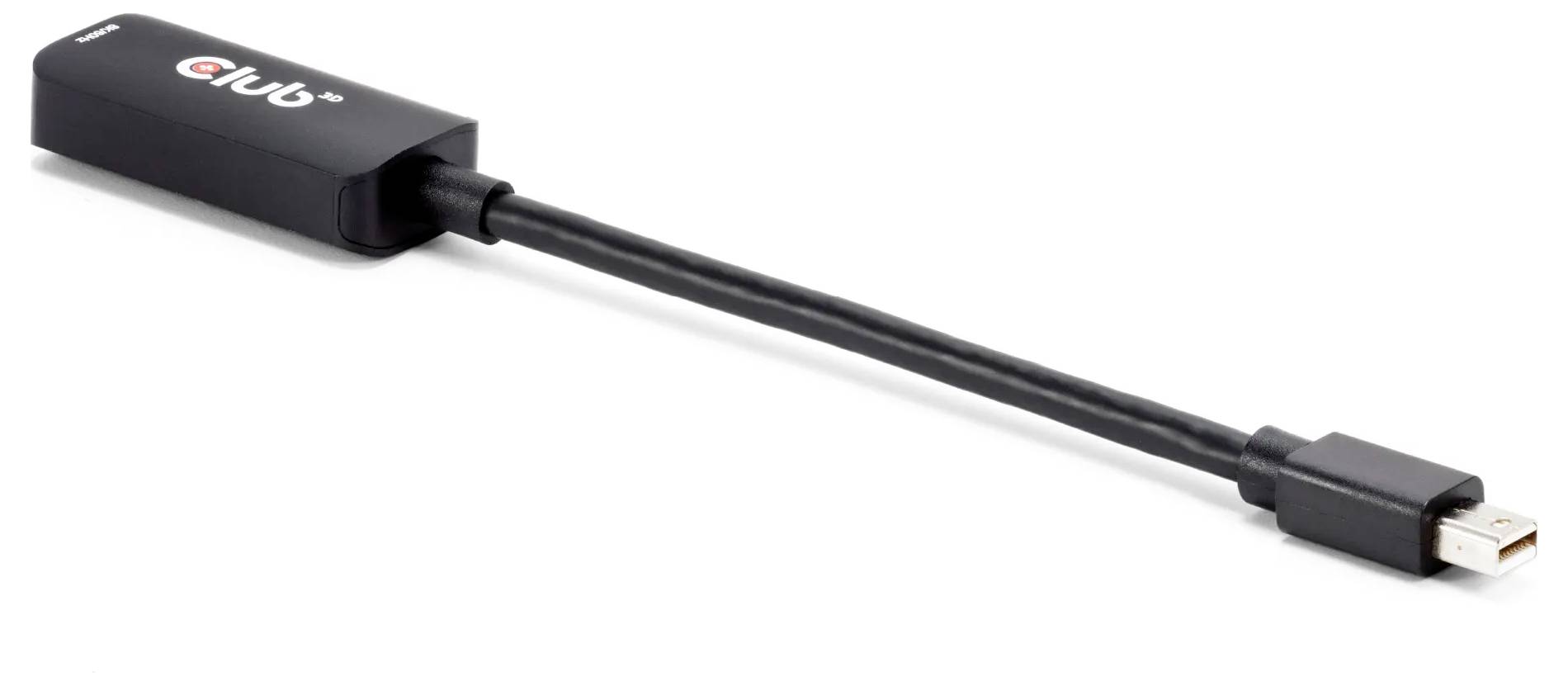

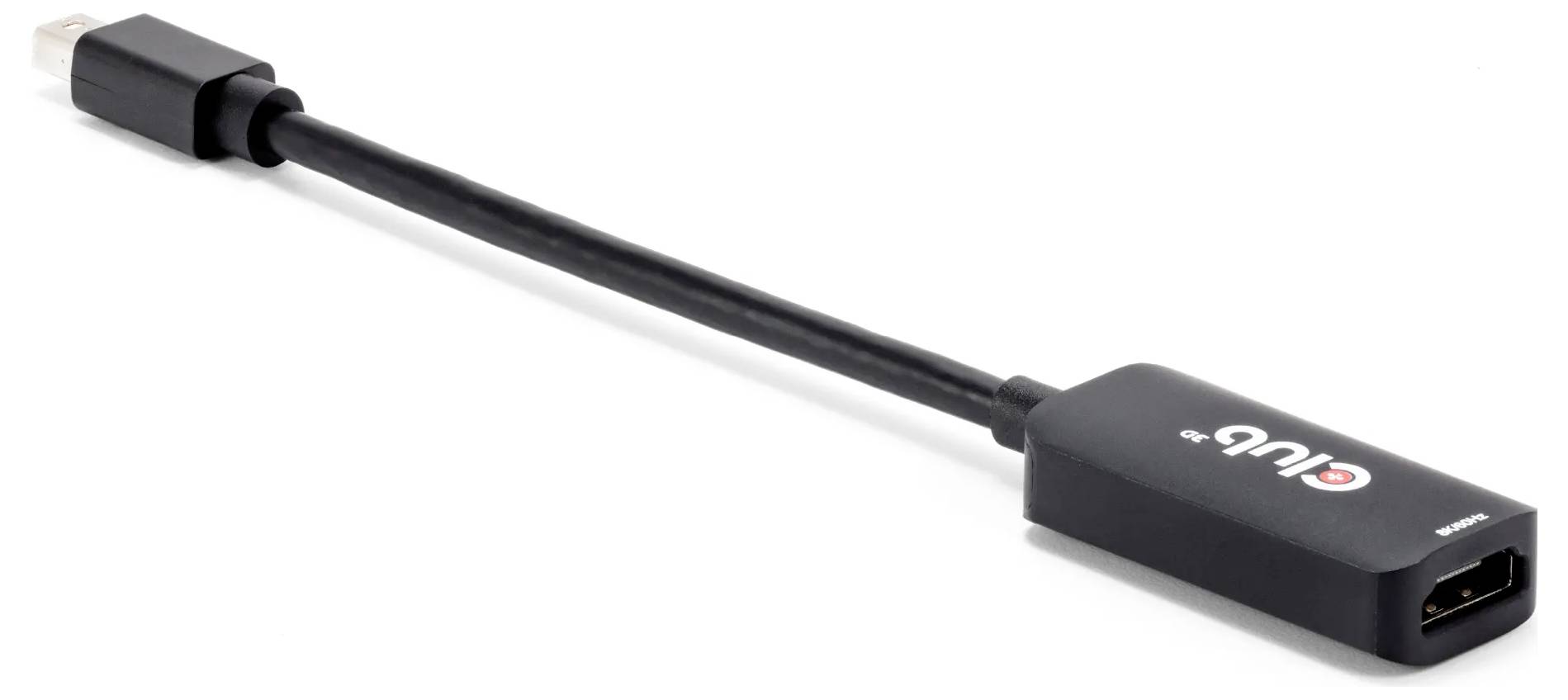

club3D CAC-1188 Mini DisplayPort / HDMI Adapter cable [1x Mini DisplayPort plug - 1x HDMI socket] Black 9 cm
EAN:
Part number:
Item no:
Highlights & Details
club3D CAC-1188 Mini DisplayPort / HDMI Adapter cable [1x Mini DisplayPort plug - 1x HDMI socket] Black 9 cm
- Supports HDCP 2.2
- Supports DSC v1.2a and is backward compatible with the previous version
- Supports maximum resolutions/refresh rates up to 4k120Hz
- Supports dynamic HDR10
- No external power supply required (power supplied via the Mini DisplayPort™ connector)

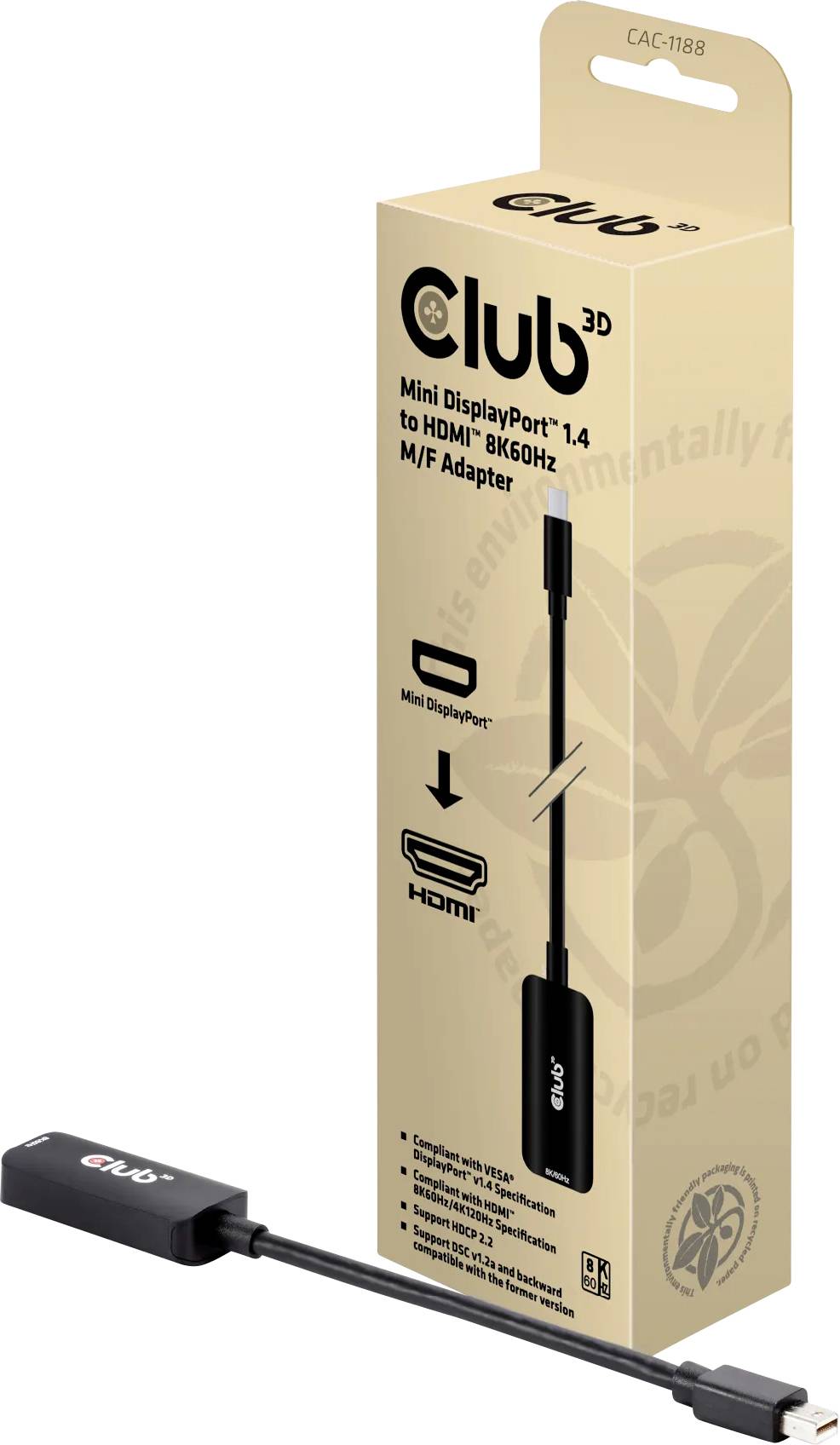

- 1X CAC-1188 Mini DisplayPort™ 1.4 to HDMI™ 8K60Hz M/F Adapter
Technical specifications
- CAC-1188 model
- Type of left connector (cable): Mini DisplayPort
- Right-hand connector (cable) type: 19-pin HDMI type A.
- Product size 4.8 x 2.25 x 1.15 cm
- Dimensions of the mDP connection: 0.92 x 1.1 x 2.35cm
- Product weight: 21gr.
- Product type
Monitor
- Connection type
Mini DisplayPort
HDMI
- No. of A connectors
1 x
- Type A
Mini DisplayPort plug
- No. of B connections
1 x
- Type B
HDMI socket
- Cable length
9 cm
- Factory colour
Black
- Cable use
Monitor
TV/monitor
- Version
Adapter cable
- Range of use
Monitors/TV adapters
- DisplayPort version
DisplayPort 1.4
- HDMI version
HDMI 2.1
- Connections
USB-C® plug
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443983 club3D CAC-1188 Mini DisplayPort / HDMI Adapter cable [1x Mini DisplayPort plug - 1x HDMI socket] Black 9 cm
Description
The Club 3D CAC-1188 adapter is the perfect solution for connecting to an HDMI™ 8K60Hz / 4K120Hz capable display. If you have a PC equipped with DisplayPort™ 1.4 with a mini DisplayPort™1.4 output or other products that do not have the new HDMI™ 8K60Hz / 4K120Hz specification, then the club3D CAC-1188 is the easiest way to upgrade your product and connect it to your new TV. The adapter is powered via the Mini-DisplayPort™ connection.
Uses:
• For host devices such as laptops, desktops, projectors, games and display systems such as TV, digital signage, VR/AR systems.
• Perfect for host devices equipped with a DP1.4™ graphics card that supports DP™ video signals via a mini-DP™ output for gaming and commercial applications.
Supported resolutions:
• Supports a maximum resolution of up to 8k60Hz or 4K120Hz
OS-support:
• Windows 10 or higher, MacOS 15.0
Available interfaces:
Input: Mini DisplayPort™ plug
Output: HDMI™ socket
This text is machine translated.
Uses:
• For host devices such as laptops, desktops, projectors, games and display systems such as TV, digital signage, VR/AR systems.
• Perfect for host devices equipped with a DP1.4™ graphics card that supports DP™ video signals via a mini-DP™ output for gaming and commercial applications.
Supported resolutions:
• Supports a maximum resolution of up to 8k60Hz or 4K120Hz
OS-support:
• Windows 10 or higher, MacOS 15.0
Available interfaces:
Input: Mini DisplayPort™ plug
Output: HDMI™ socket
This text is machine translated.
