club3D CAC-1302 HDMI / VGA Adapter [1x HDMI plug - 1x VGA socket] Black 50 cm
EAN:
Part number:
Item no:
Highlights & Details
club3D CAC-1302 HDMI / VGA Adapter [1x HDMI plug - 1x VGA socket] Black 50 cm
- 0.5 m
- HDMI Type A (Standard) Male
- VGA (D-Sub) Female
- Black
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
HDMI
VGA
- No. of A connectors
1 x
- Type A
HDMI plug
- No. of B connections
1 x
- Type B
VGA socket
- Cable length
50 cm
- Factory colour
Black
- Video resolution
1920 x 1080 Pixel
- Connector version
straight
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Resolutions (max.)
Full HD 1080p @ 60 Hz
- HDMI version
HDMI 1.4
- Cable design
Round
- Cable specs
HDMI 1.4
- Weight
0.076
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190632 club3D CAC-1302 HDMI / VGA Adapter [1x HDMI plug - 1x VGA socket] Black 50 cm
Description

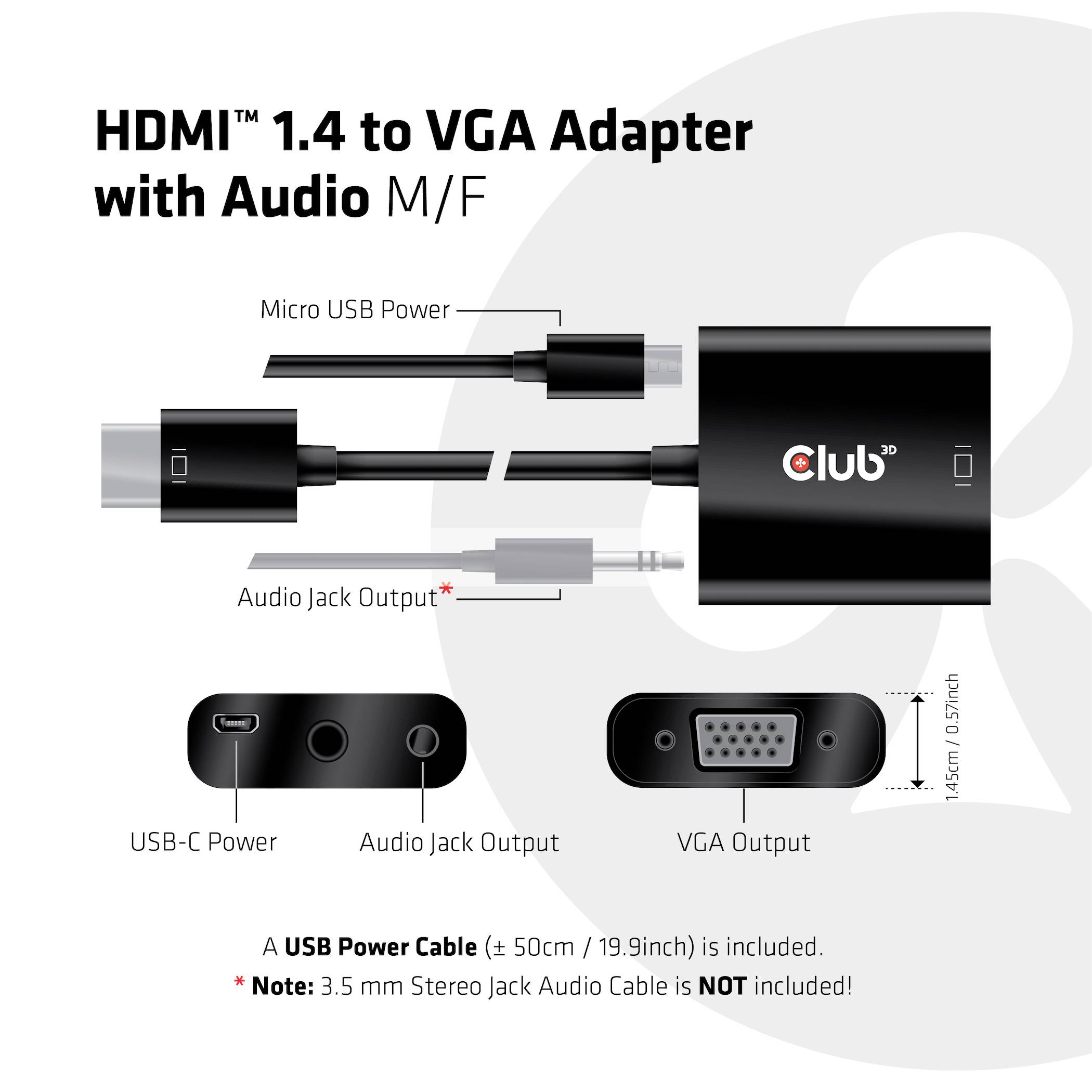

HDMI 1.4 to VGA adapter with audio plug/socket
The Club 3D CAC-1302 Adapter is an active HDMI™ 1.4 on VGA signal converter. It enables you to get the digital HDMI™ signal into an analog VGA
Convert the signal and the audio signal from the HDMI™ signal with the R/L.
Extract the audio port.

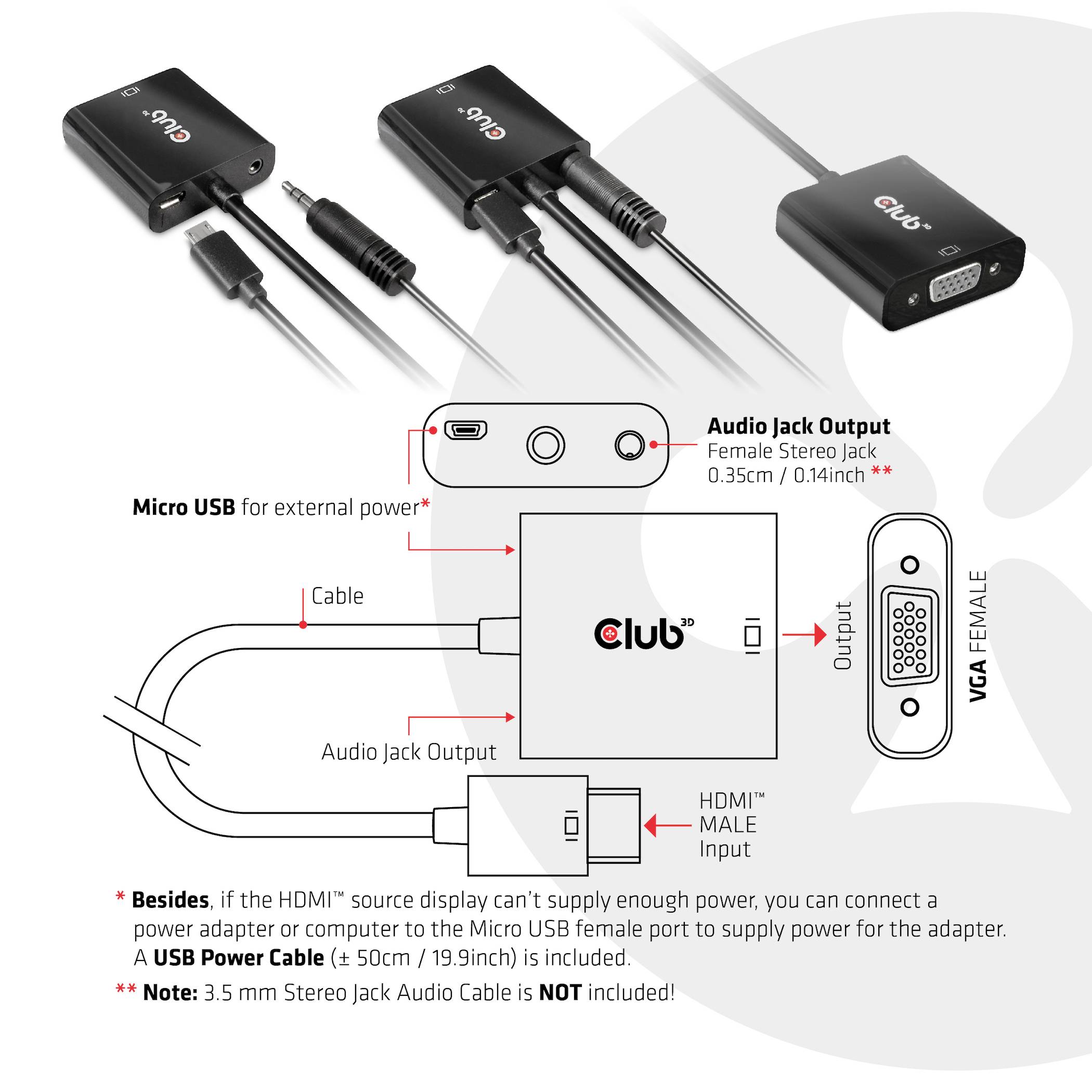

In addition, if the HDMI™ source cannot provide enough power, you can connect a charger or a computer to the Micro USB socket to supply power to the adapter.
This text is machine translated.
Features
- Support for HDMI™ A and Micro USB input, VGA and stereo audio output
- Supports HDMI™ resolutions up to 1080p@60HZ, HDMI™ bandwidth 165MHz/1.65Gbps per channel (4.95Gbps for all channels)
- Supports VGA resolutions up to 1080p at 60HZ
- Supports analogue audio format
- Easy to use: Installed in seconds, no settings required.
- Supports HDCP
