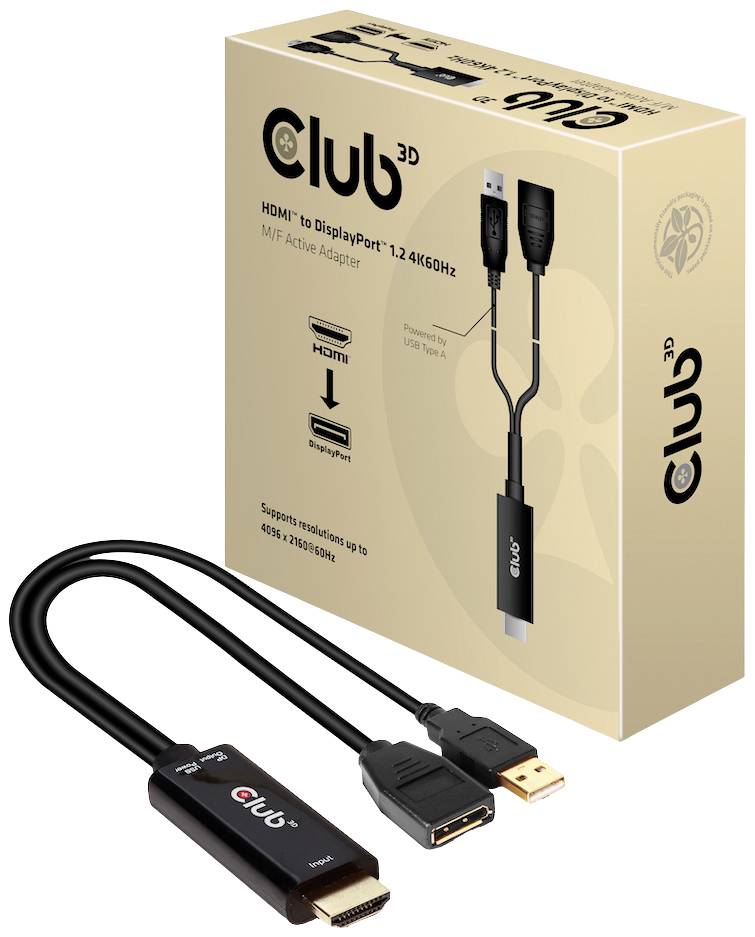

club3D CAC-1331 HDMI / DisplayPort Adapter [1x HDMI® - 1x DisplayPort] Black 0 mm
EAN:
Part number:
Item no:
Highlights & Details
club3D CAC-1331 HDMI / DisplayPort Adapter [1x HDMI® - 1x DisplayPort] Black 0 mm
- 0.25 m
- HDMI
- Display port
- Display port version 1.2 4096 x 2160 pixels
- Black
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
HDMI
DisplayPort
- No. of A connectors
1 x
- Type A
HDMI®
- No. of B connections
1 x
- Type B
DisplayPort
- Cable length
0 mm
- Factory colour
Black
- Video resolution
3840 x 2160 Pixel
- Connector version
straight
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Resolutions (max.)
UHD 4K @ 60 Hz
- DisplayPort version
DisplayPort 1.2
- Cable design
Round
- Signal flow direction
Unidirectional (uni)
- Cable specs
DisplayPort 1.2
- Weight
0.073
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190626 club3D CAC-1331 HDMI / DisplayPort Adapter [1x HDMI® - 1x DisplayPort] Black 0 mm
Description

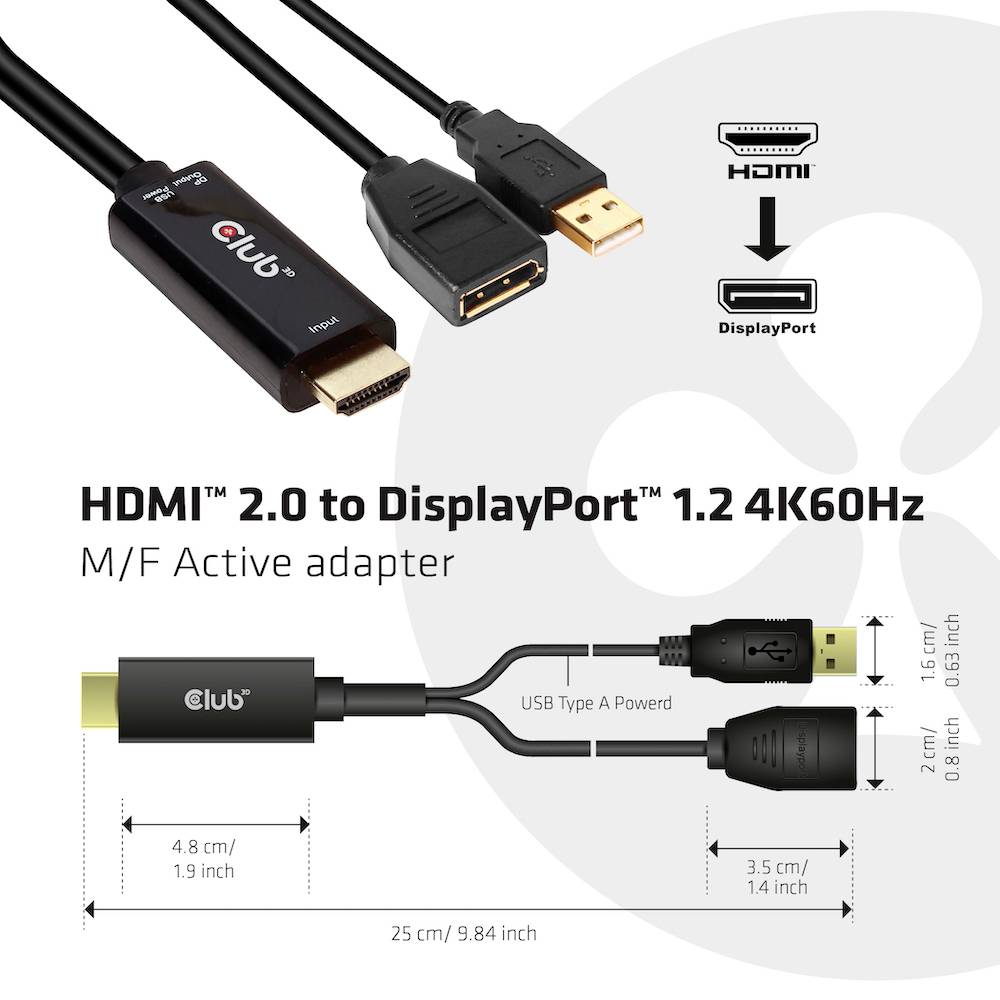

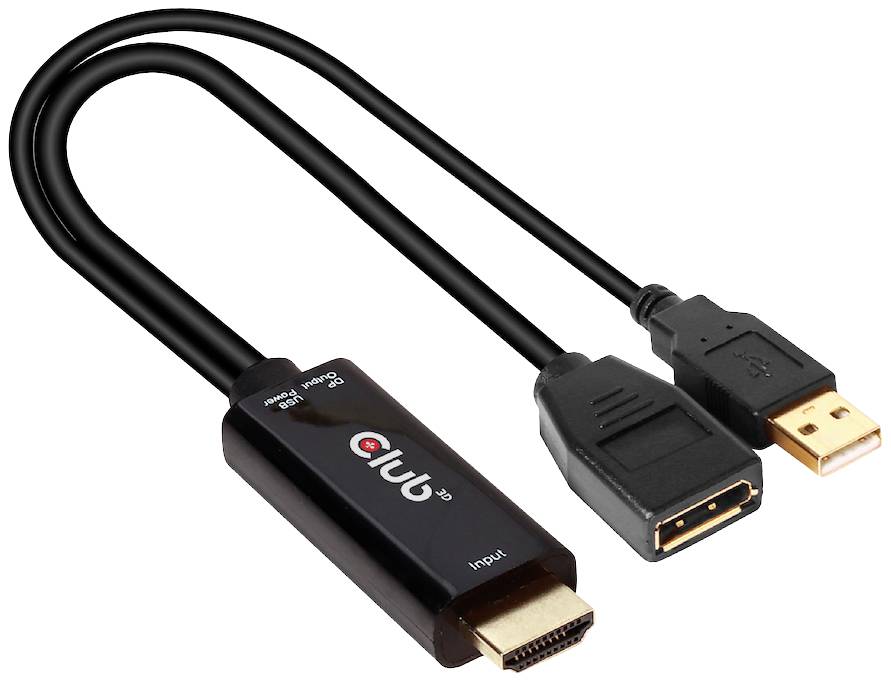

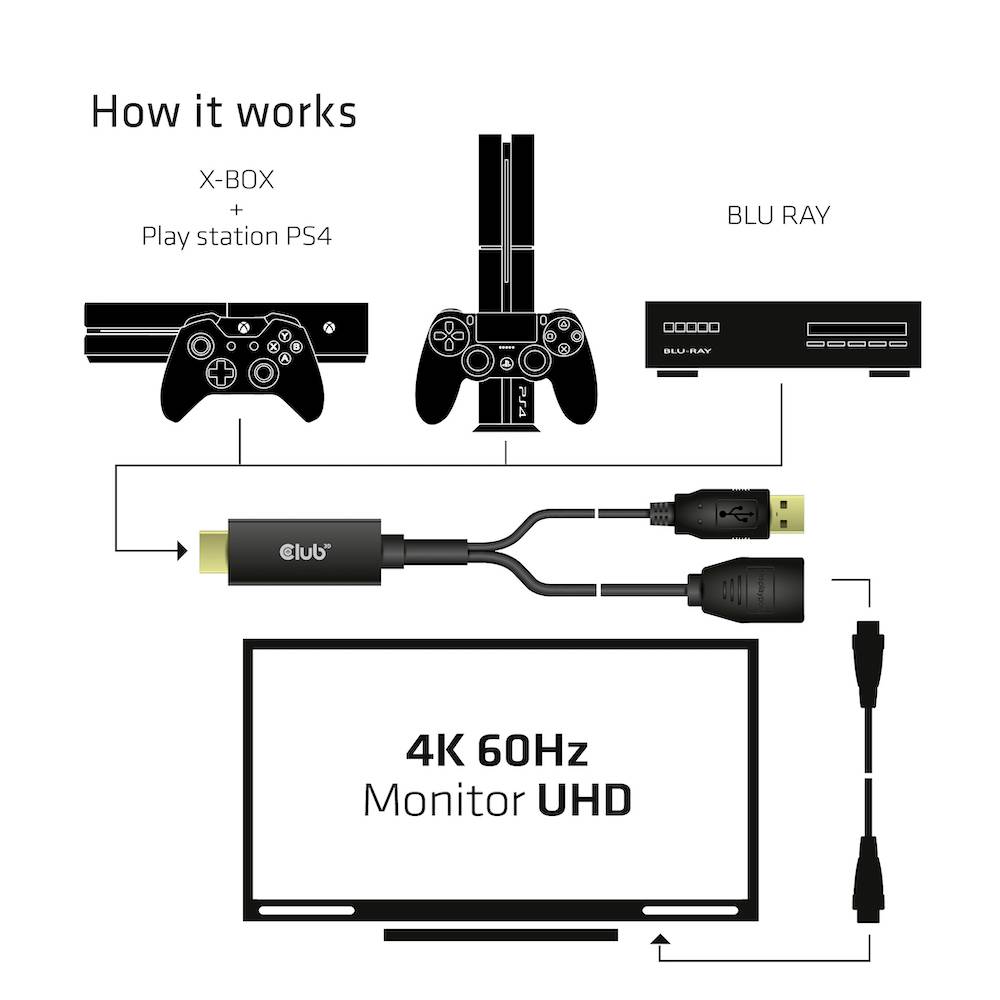

The Club 3D CAC-1331 is an active HDMI™ to DisplayPort™ 1.2 adapter that allows you to convert an HDMI™ signal into a DisplayPort™ 1.2 signal. This product supports the DP1.2 specification with resolutions up to 4096 x 2160@60HZ. In addition, the adapter is equipped with a USB type A port to provide power in case there is not enough power from the HDMI source available. The adapter is unidirectional.
This text is machine translated.
This text is machine translated.
Features
- CAC-1331 - HDMI™ to DisplayPort™ 1.2 4K60HZ M/F Active Adapter
- EAN code: 8719214471484
- UPC code: 841615101665
- HDMI™ support
- HDCP1.4/2.2
- 8/10/12-bit Deep Colour
- Status and Control Data Channel (SCDC)
- DisplayPort™ 1.2 support
- DP1.2a compliant

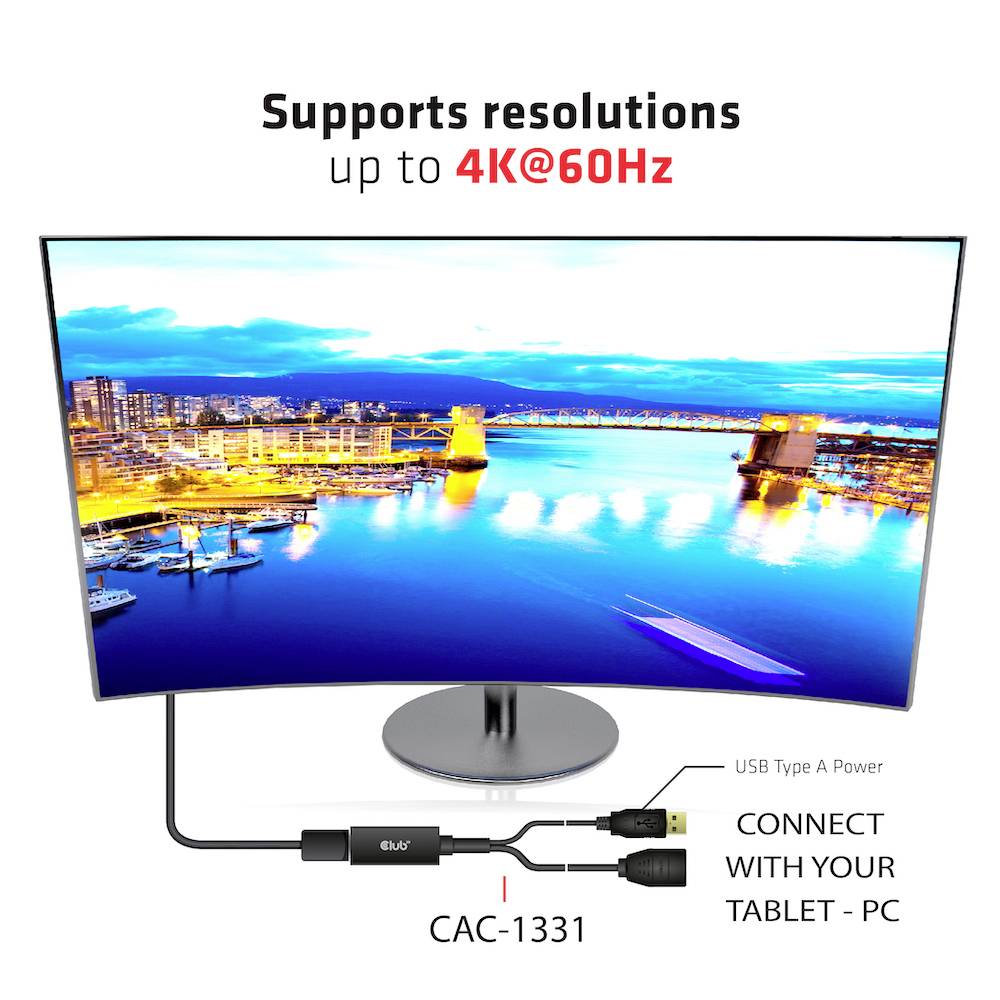

- Resolution up to 4K60HZ
- Supports 4 lanes with 1,62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) data rate
- Supports hot-plug detect
- Gold-plated connectors
- Input: 1x HDMI™ (plug), 1x USB Type A for power
- Output:DisplayPort™ 1.2 (jack)
- OS: All
