club3D CAC-1567 USB-C® / DisplayPort Adapter [1x USB-C® - 1x DisplayPort] Black/silver 0 mm
EAN:
Part number:
Item no:
Highlights & Details
club3D CAC-1567 USB-C® / DisplayPort Adapter [1x USB-C® - 1x DisplayPort] Black/silver 0 mm
- USB Type-C®
- Display ports output
- Number of display supported: 1
- 7680 x 4320 pixels
- Black, silver
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
USB-C®
DisplayPort
- No. of A connectors
1 x
- Type A
USB-C®
- No. of B connections
1 x
- Type B
DisplayPort
- Cable length
0 mm
- Factory colour
Black/silver
- Video resolution
7680 x 4320 Pixel
- Connector version
straight
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Resolutions (max.)
UHD 8K @ 60 Hz
- DisplayPort version
DisplayPort 1.4
- Cable design
Round
- Signal flow direction
Unidirectional (uni)
- Cable specs
DisplayPort 1.4
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190622 club3D CAC-1567 USB-C® / DisplayPort Adapter [1x USB-C® - 1x DisplayPort] Black/silver 0 mm
Description
USB Type-C to DisplayPort 1.4 8K60Hz HBR3 active adapter
The CAC-1567 Club 3D USB Type-C to DisplayPort 1.4 8K60Hz HBR3 active Adapter 8K60Hz allows you to connect any USB Type-C source with a DisplayPort™ display up to 8K60Hz resolution and HDR support – provided your source supports DSC. 1.2 HBR3
The adapter works with any USB type C host that supports DP 1.4/DP 1.2 Alt Mode. This adapter also works with all VR glasses that use 3.3V. The resolutions depend on the possibilities of the source product. If the adapter is connected to a Thunderbolt™ 3 host, the product transmits a DP signal.
The soft UltraFlex sheath protects the cable against bending and deformation damages. The cable is 34AWG and unidirectional.
This text is machine translated.
Features
- Supports USB yp-C input and DisplayPort™ output

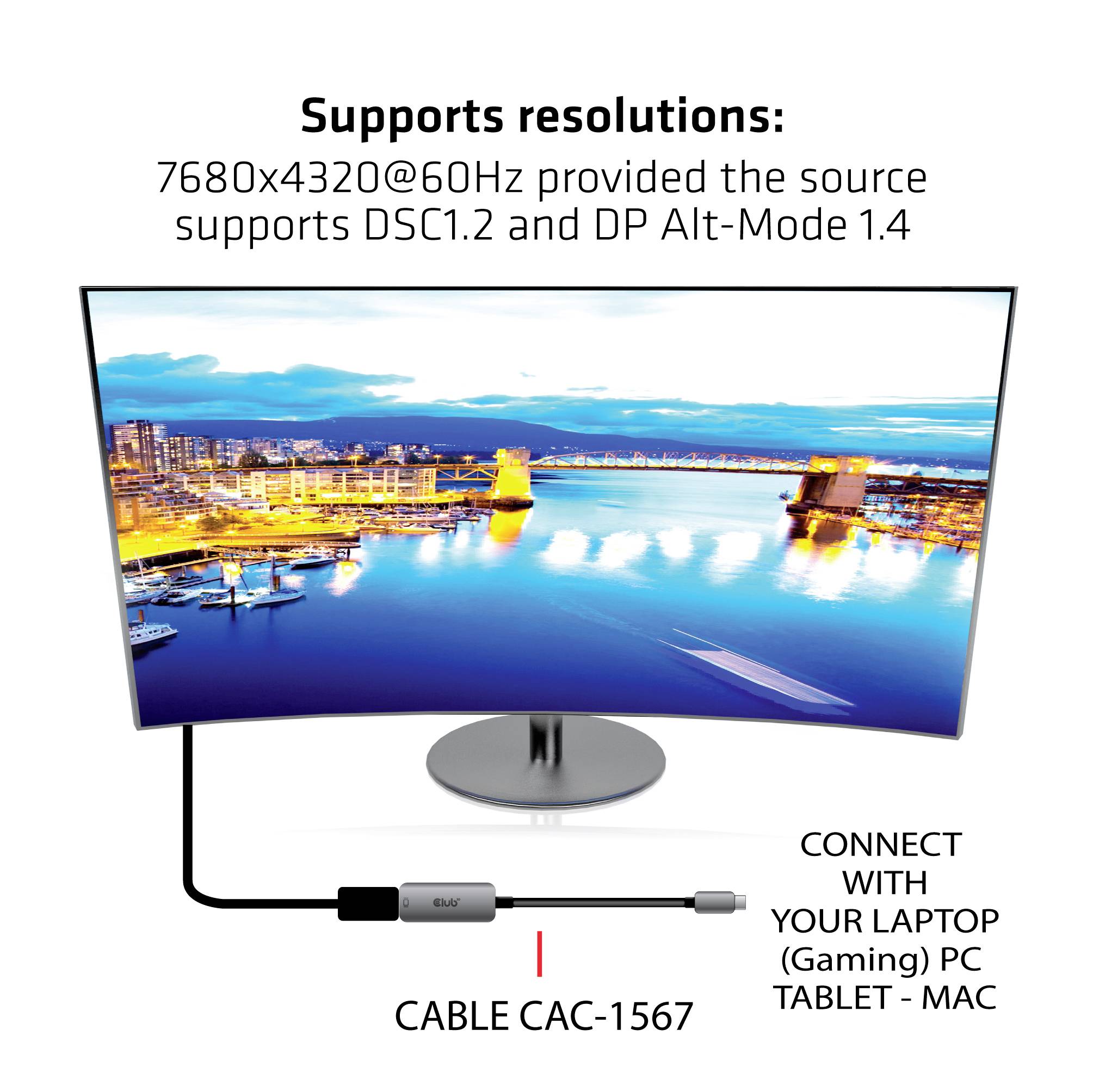

- Supports DisplayPort™ resolutions up to 7680x4320@60Hz HDR, provided that the source supports DSC1.2 and DP Alt-Mode 1.4
- Supports DisplayPort™ 1.4/1.2 Alt Mode
- Supports the 3.3V option for VR glass.
- Compliant with Thunderbolt 3 specifications
- Supports data rates per lane of 8.1Gbps(HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
- Supports up to 48 bit (16bit per channel) Deep Color
- Supports content protection of HDCP1.4 & HDCP 2.2
- USB bus power supply (no external power supply necessary)
