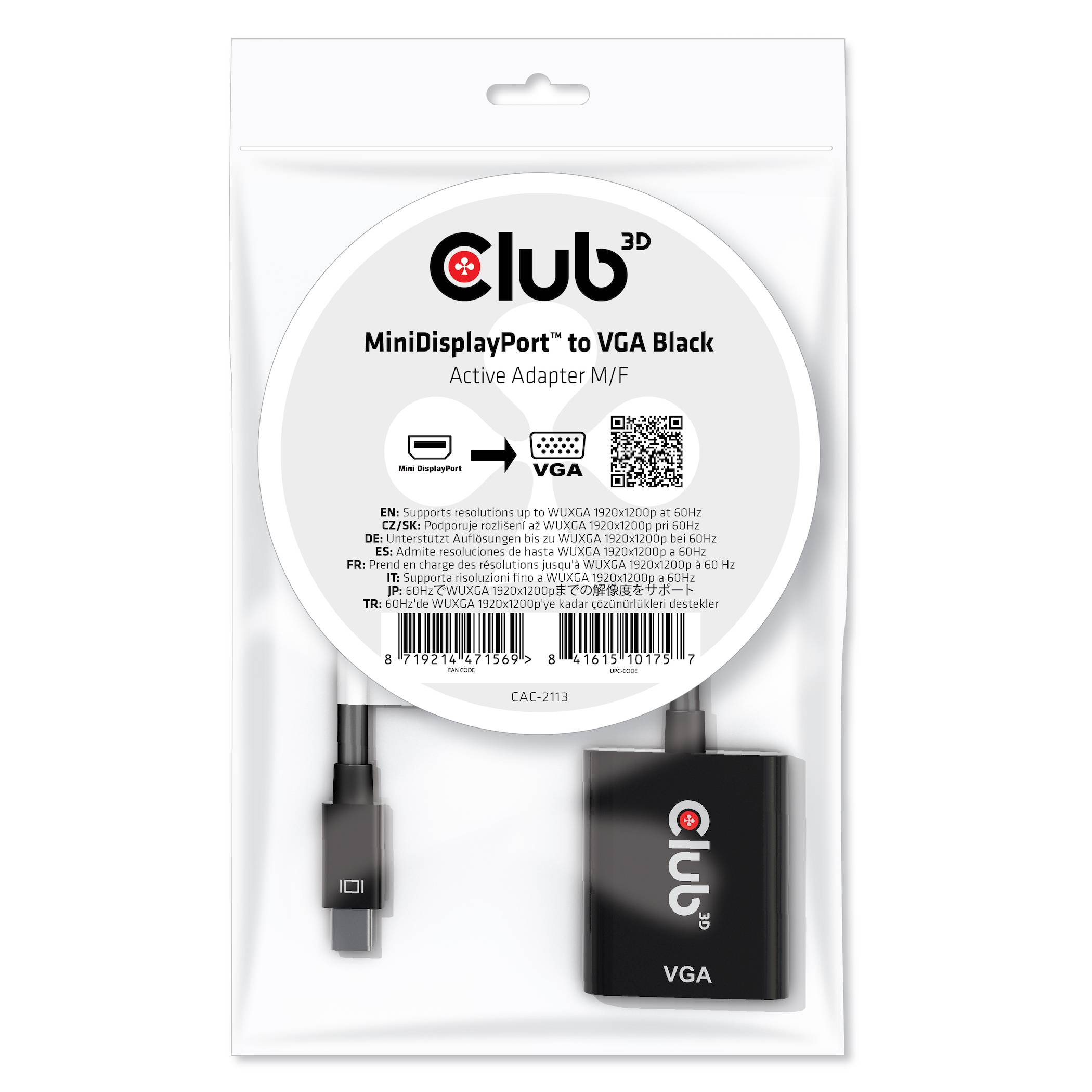

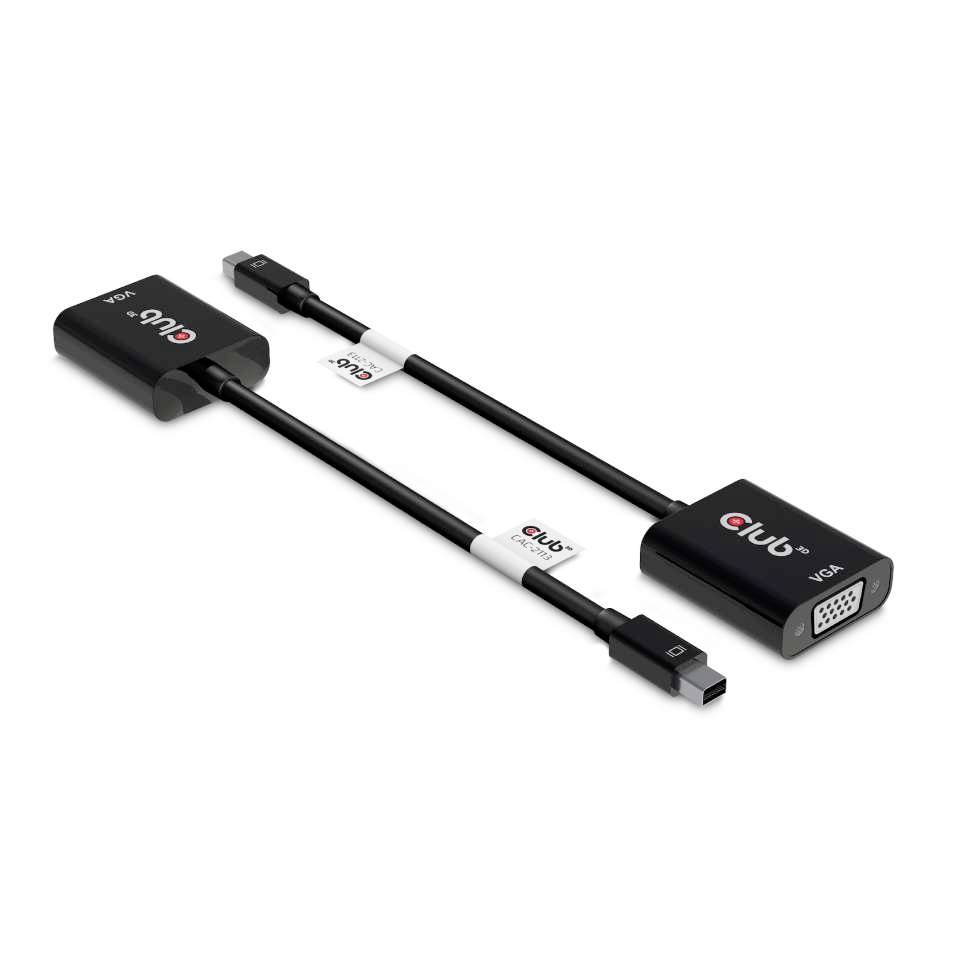

club3D CAC-2113 VGA Adapter [1x Mini DisplayPort plug - 1x VGA socket] Black 0.228 m
EAN:
Part number:
Item no:
Highlights & Details
club3D CAC-2113 VGA Adapter [1x Mini DisplayPort plug - 1x VGA socket] Black 0.228 m
- 0.228 m
- Mini DisplayPort Straight Male
- VGA Straight Female
- 5.4 Gbit/s 60 Hz
Technical specifications
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Data transfer rate 5.4 Gbps
- Cable type: Round cable
- Product type
TV/monitor Adapter
- Connection type
VGA
- No. of A connectors
1 x
- Type A
Mini DisplayPort plug
- No. of B connections
1 x
- Type B
VGA socket
- Cable length
0.228 m
- Factory colour
Black
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Frame rate
60 Hz
- Connections
USB-C® plug
- Weight
26 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3361821 club3D CAC-2113 VGA Adapter [1x Mini DisplayPort plug - 1x VGA socket] Black 0.228 m
Description

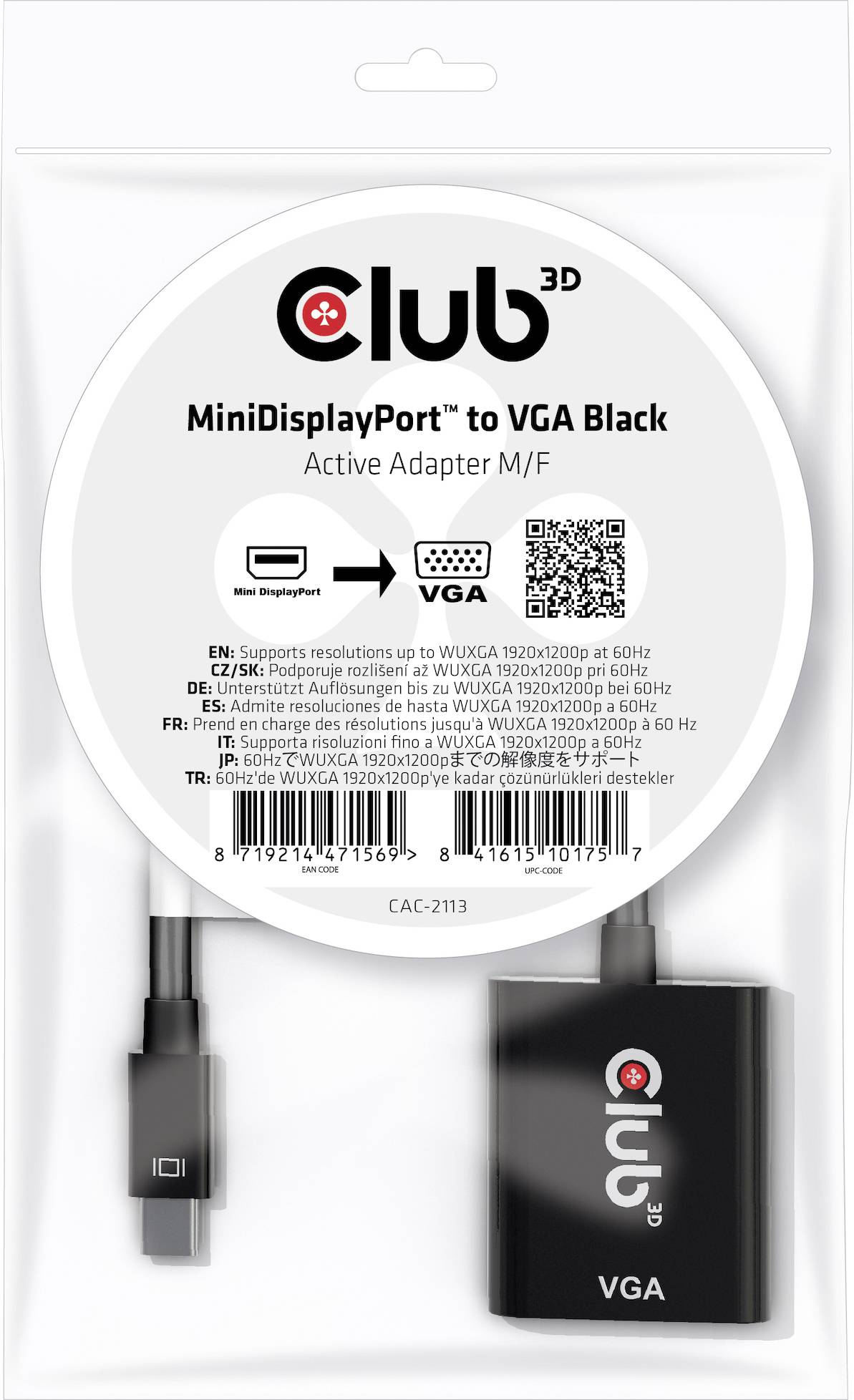

The Club 3D CAC-2113 is an active MiniDisplayPort™ on VGA signal converter. It enables you to connect your analogue VGA products, such as TV, monitors or projectors, with your desktop or laptop with MiniDisplayPort™ output. The adapter offers smooth Plug and Play functionality, so no driver installation is necessary and power is supplied via the MiniDisplayPort™ output. The MiniDisplayPort™ interface in the adapter consists of two main lanes for DP data, AUX channel, HPD signal and current. The VGA output is compliant with the VSIS standard and supports up to WUXGA RB timings. Supported resolutions up to WUXGA 1920x1200p @ 60Hz. The adapter works with AMD, Nvidia and Intel graphics solutions.
