Name: club3D USB-C® docking station USB-C Dock Compatible with (brand): Club 3D USB-C® powered
Brand: club3D
SKU: 3190687

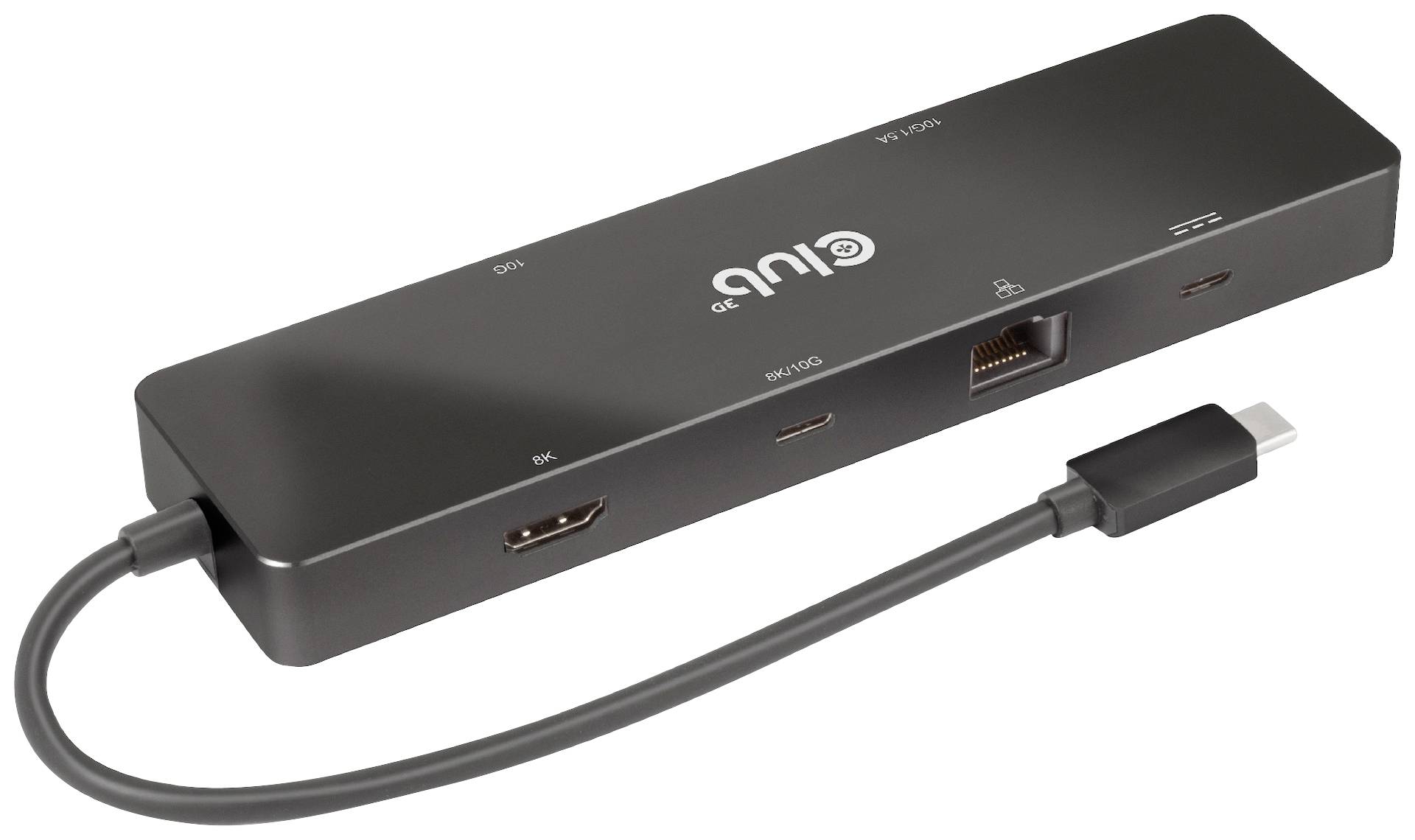

A black USB-C hub with multiple ports: HDMI, Ethernet, USB. It serves to expand connection options.

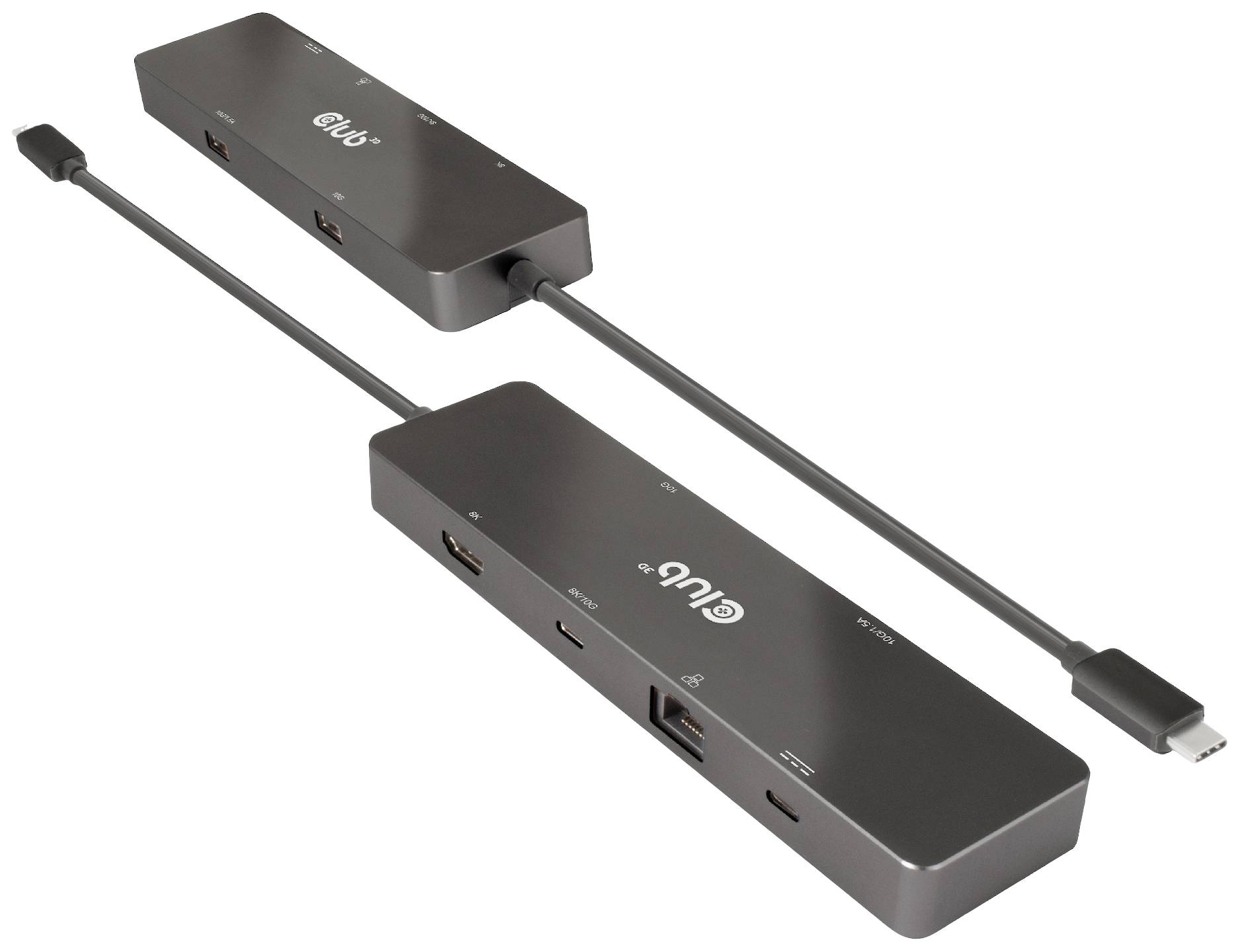

Two grey USB-C docking stations with multiple ports, including USB, HDMI and Ethernet, for enhanced connectivity.

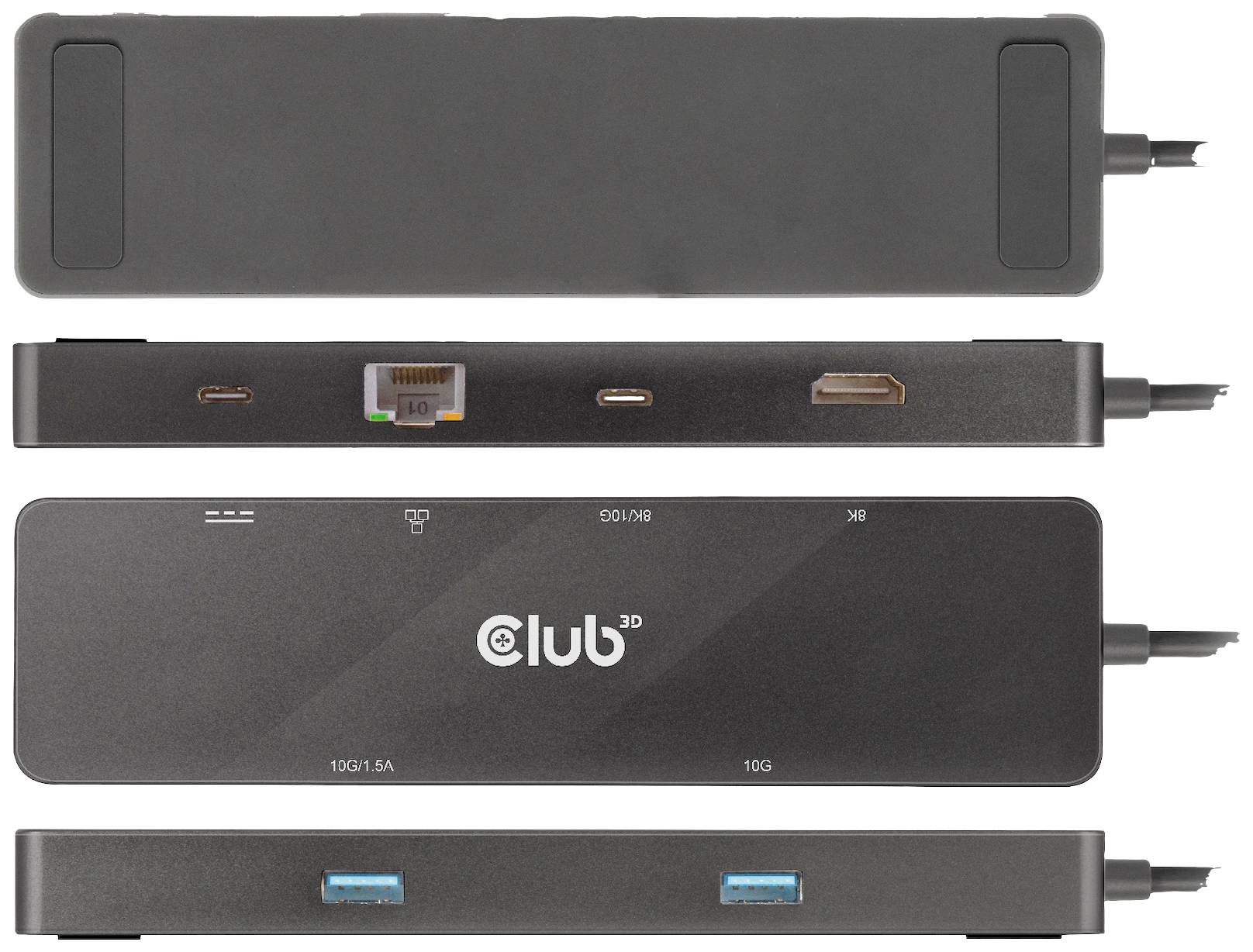

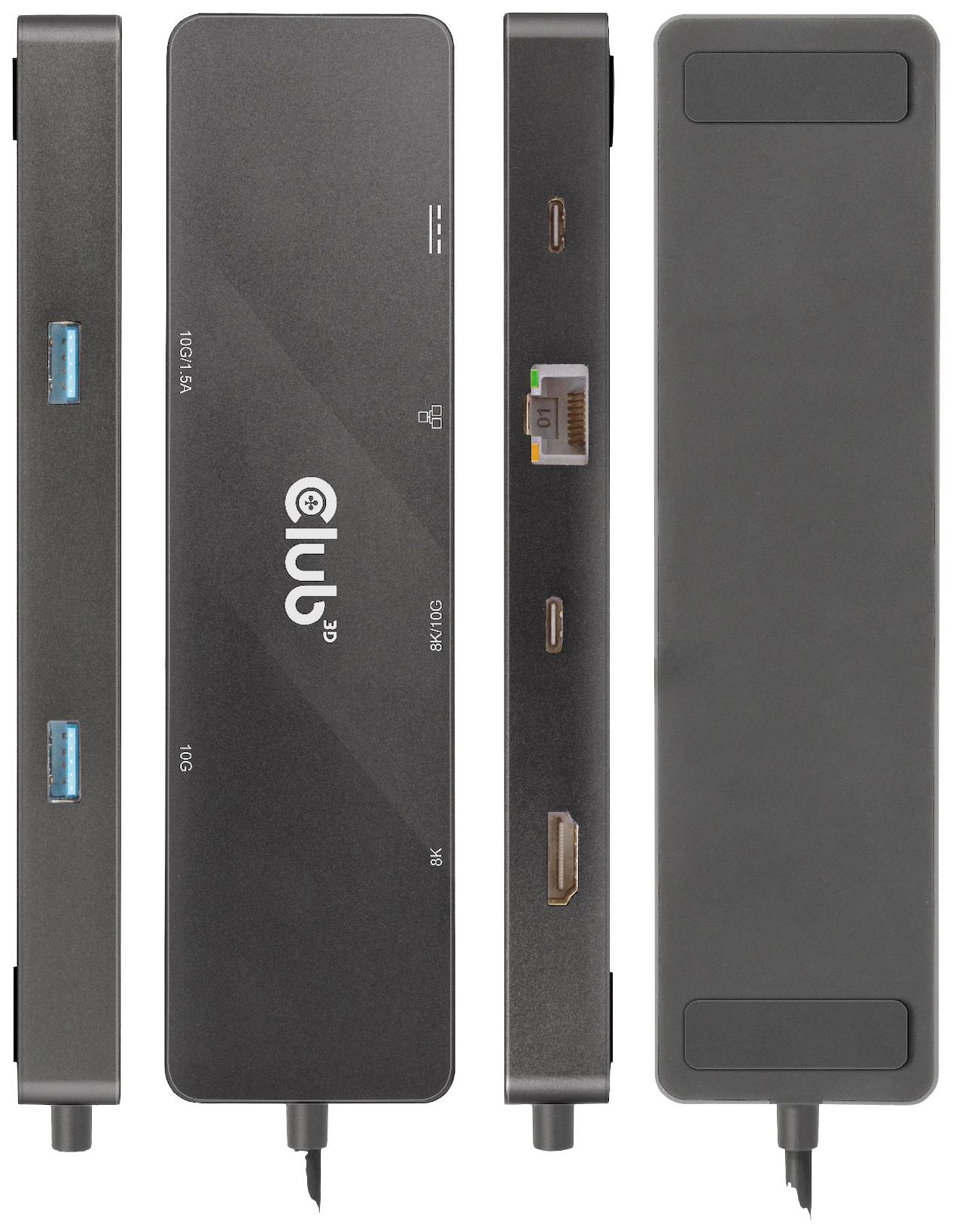

USB docking station in four views: Front with USB ports, side with network and HDMI ports, rear and bottom.

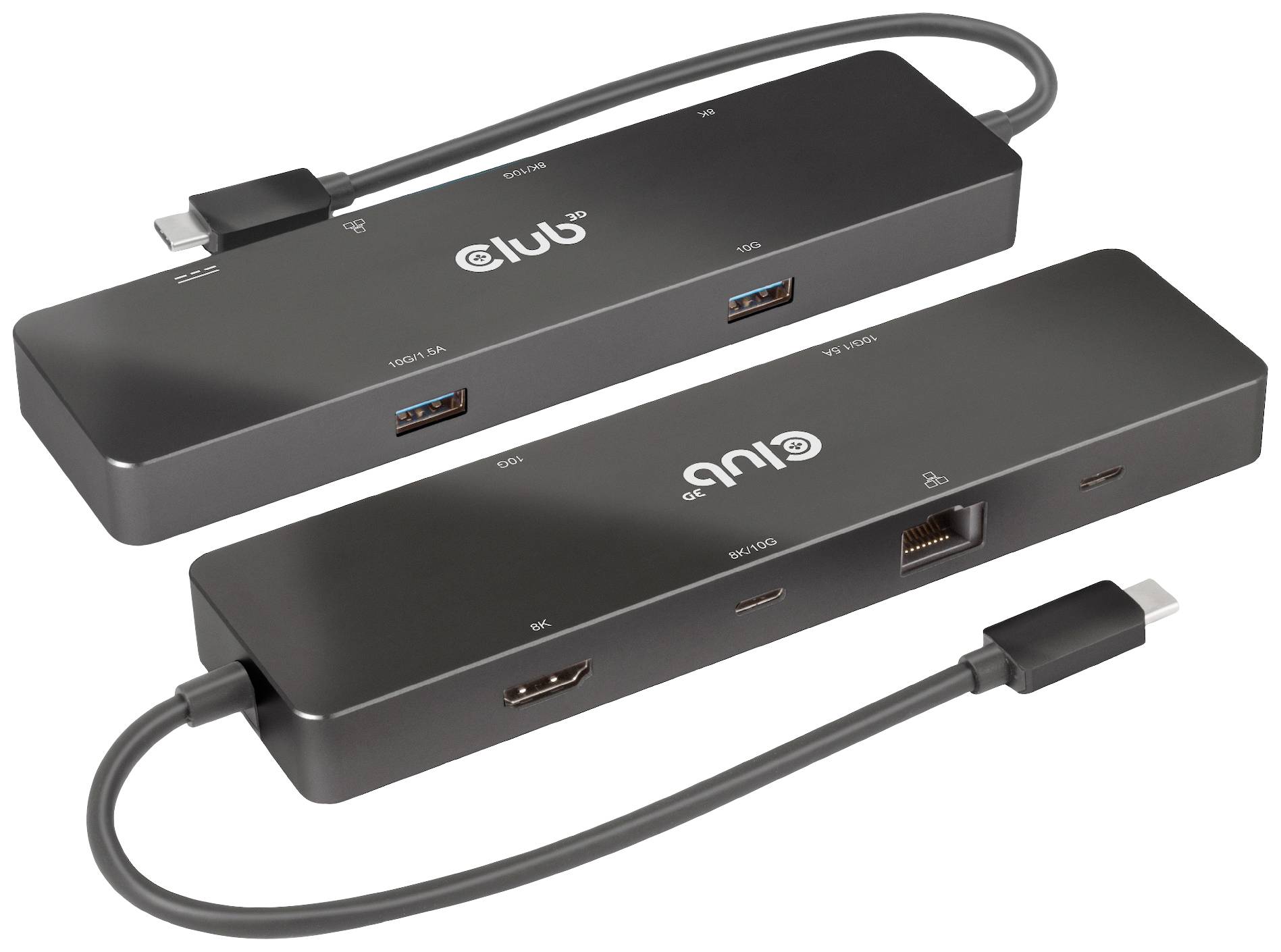

A USB-C docking station with various ports, including HDMI, USB and Ethernet, enables versatile connectivity for devices.

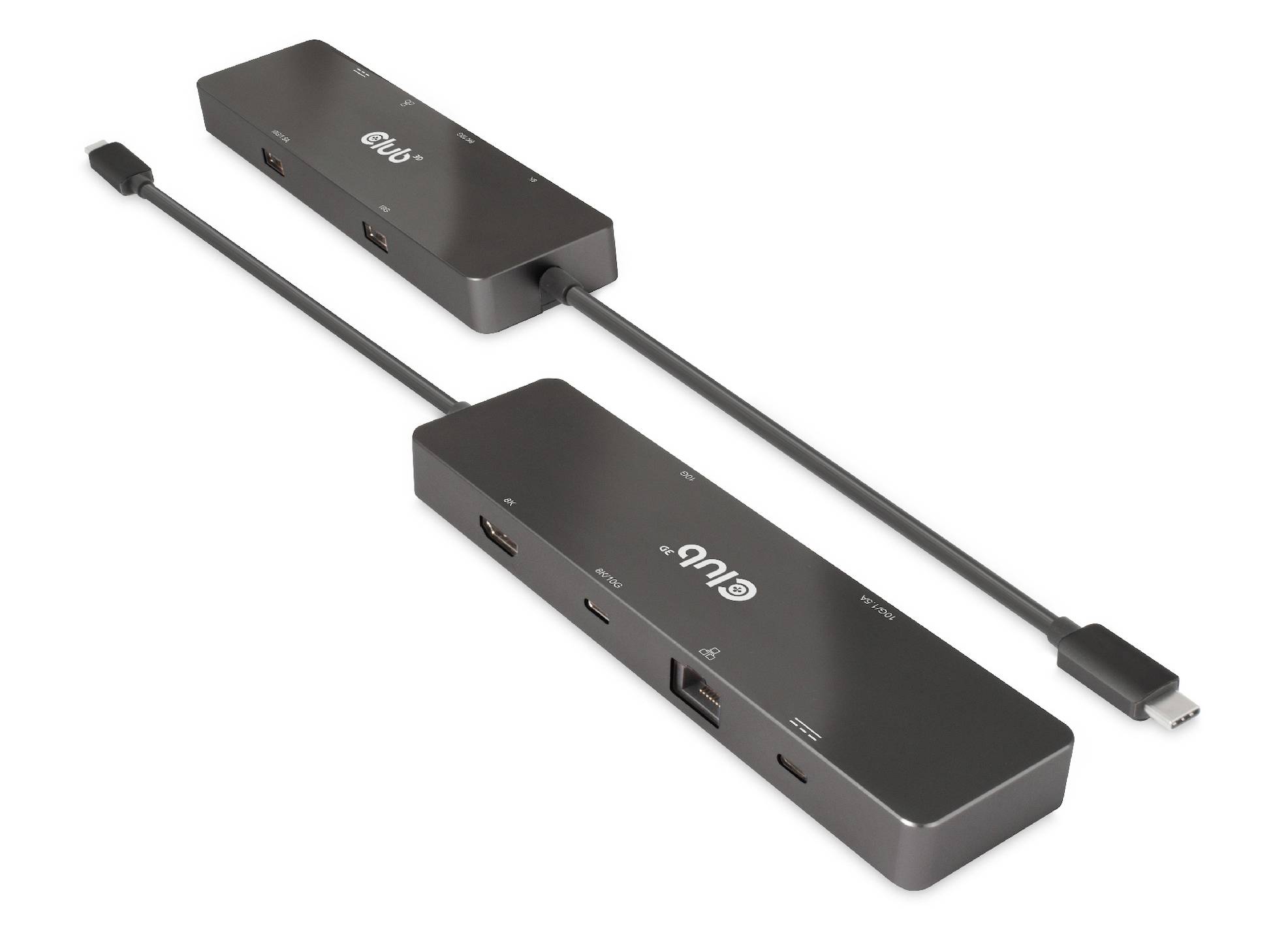

'Two black USB-C docking stations side by side, with multiple ports for various connections, including USB and HDMI.'

A USB-C hub with multiple ports for HDMI, USB-A and USB-C, suitable for expanding the connection options of a laptop.

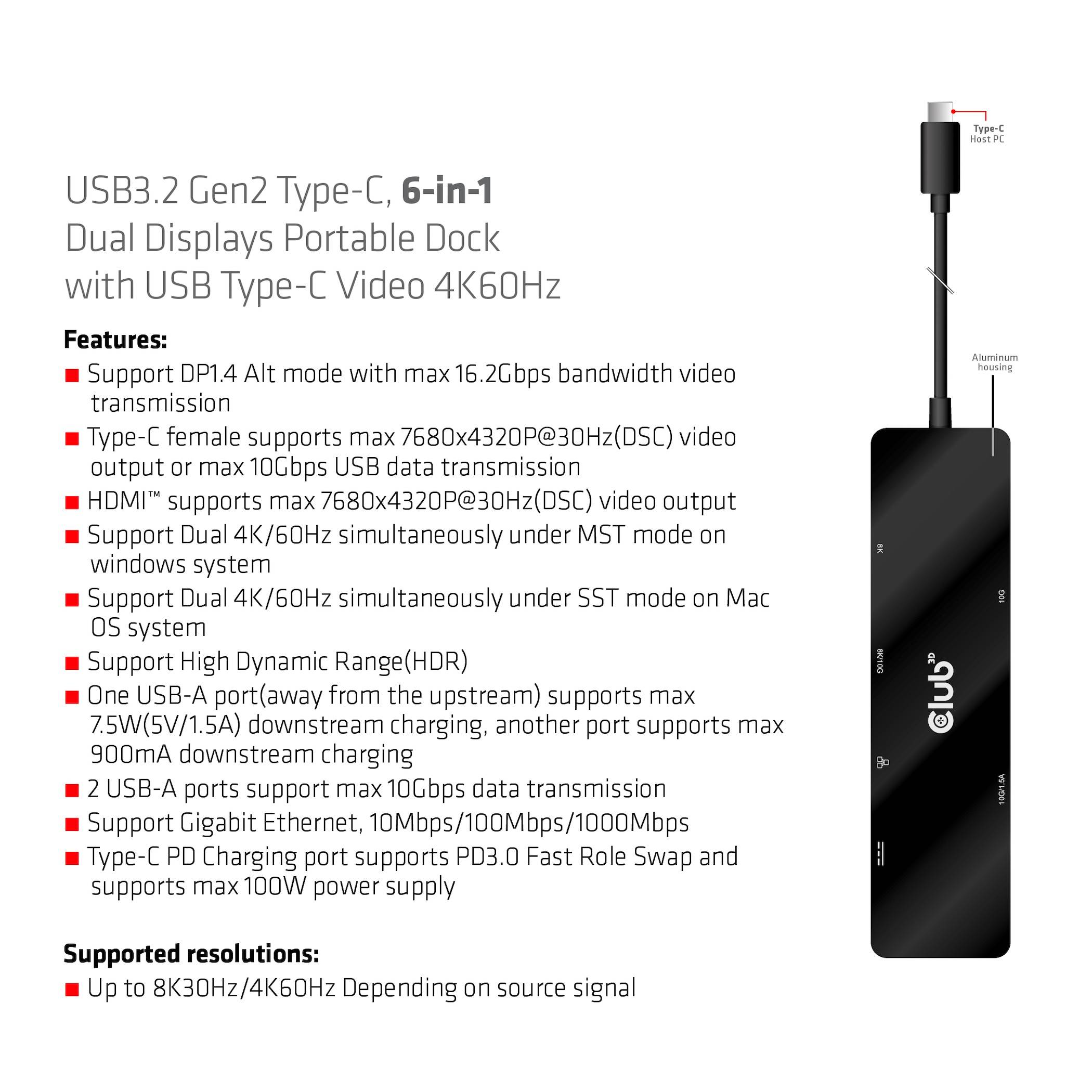

'USB3.2 Gen2 Type-C, 6-in-1 Dual Displays Portable Dock with USB Type-C Video 4K60Hz. Supported Features: DP1.4, HDMI™, Audio, HDR, 10Gbps Data Transfer. Supported Systems: Windows, Mac.'

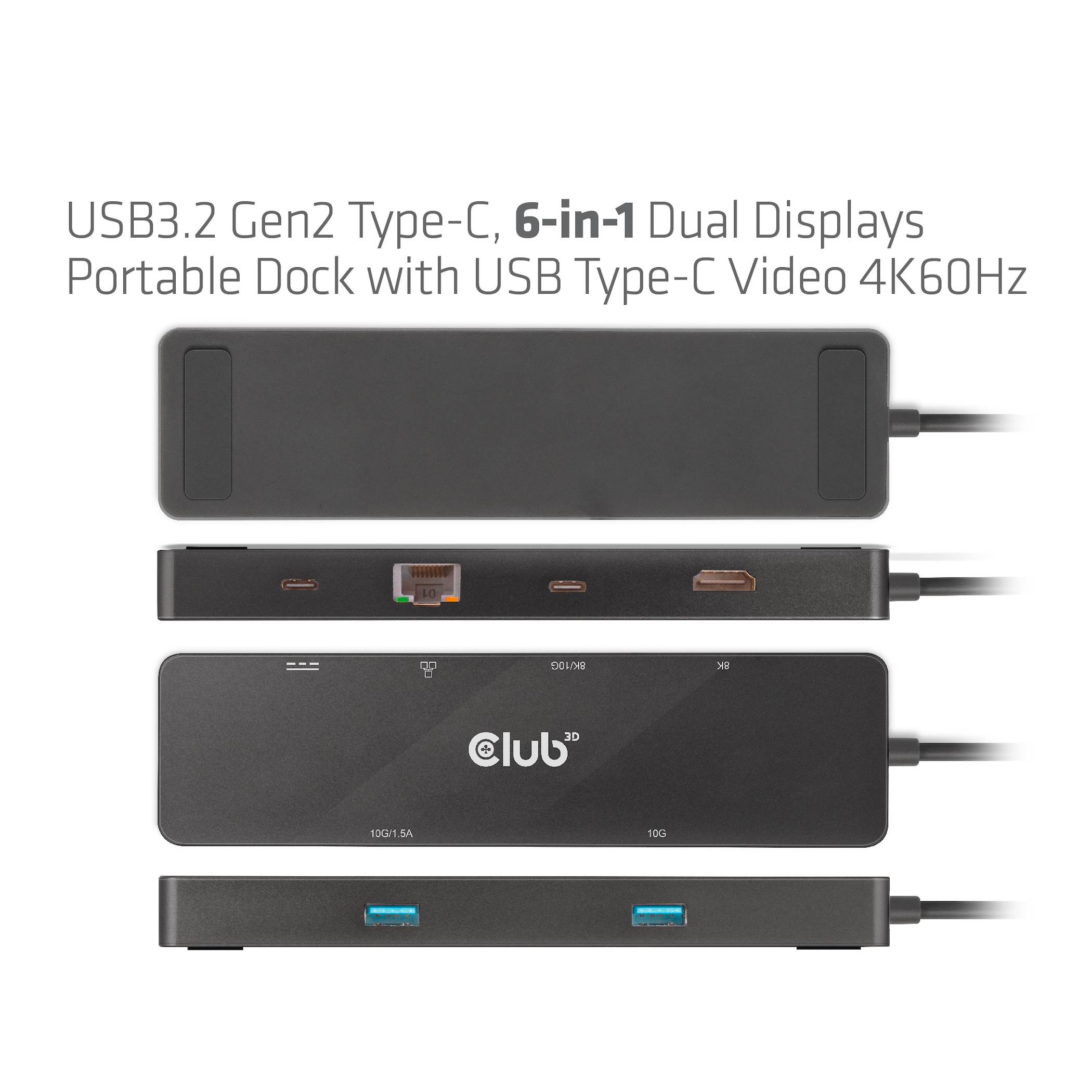

'USB3.2 Gen2 Type-C, 6-in-1 Dual Displays Portable Dock with USB Type-C Video 4K60Hz.' Shown is a docking station with multiple ports.

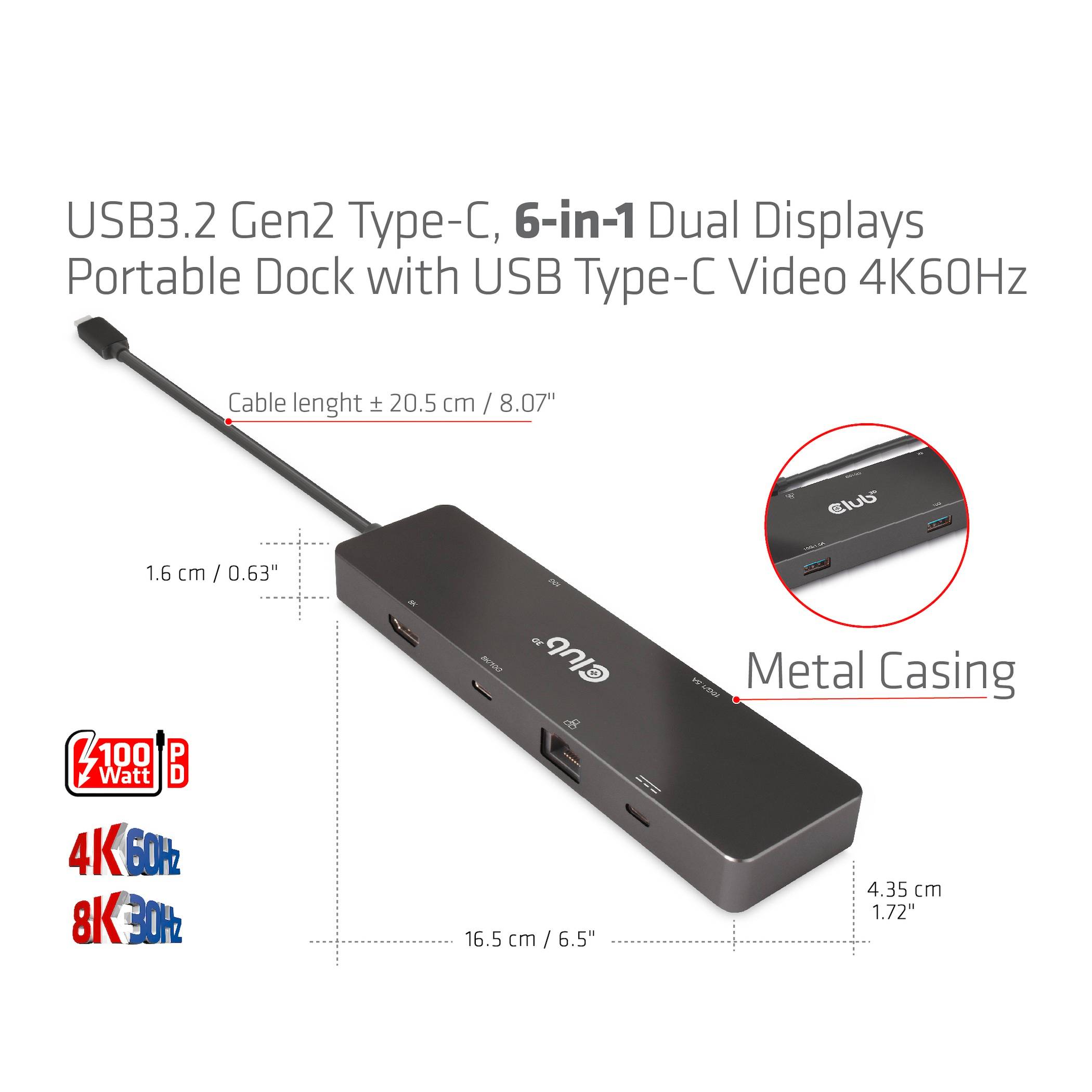

'USB3.2 Gen2 Type-C, 6-in-1 Dual Displays Portable Dock with USB Type-C Video 4K60Hz' with metal housing. Connections: HDMI, USB, Ethernet. Dimensions: 16.5 cm x 6 cm x 1.6 cm.

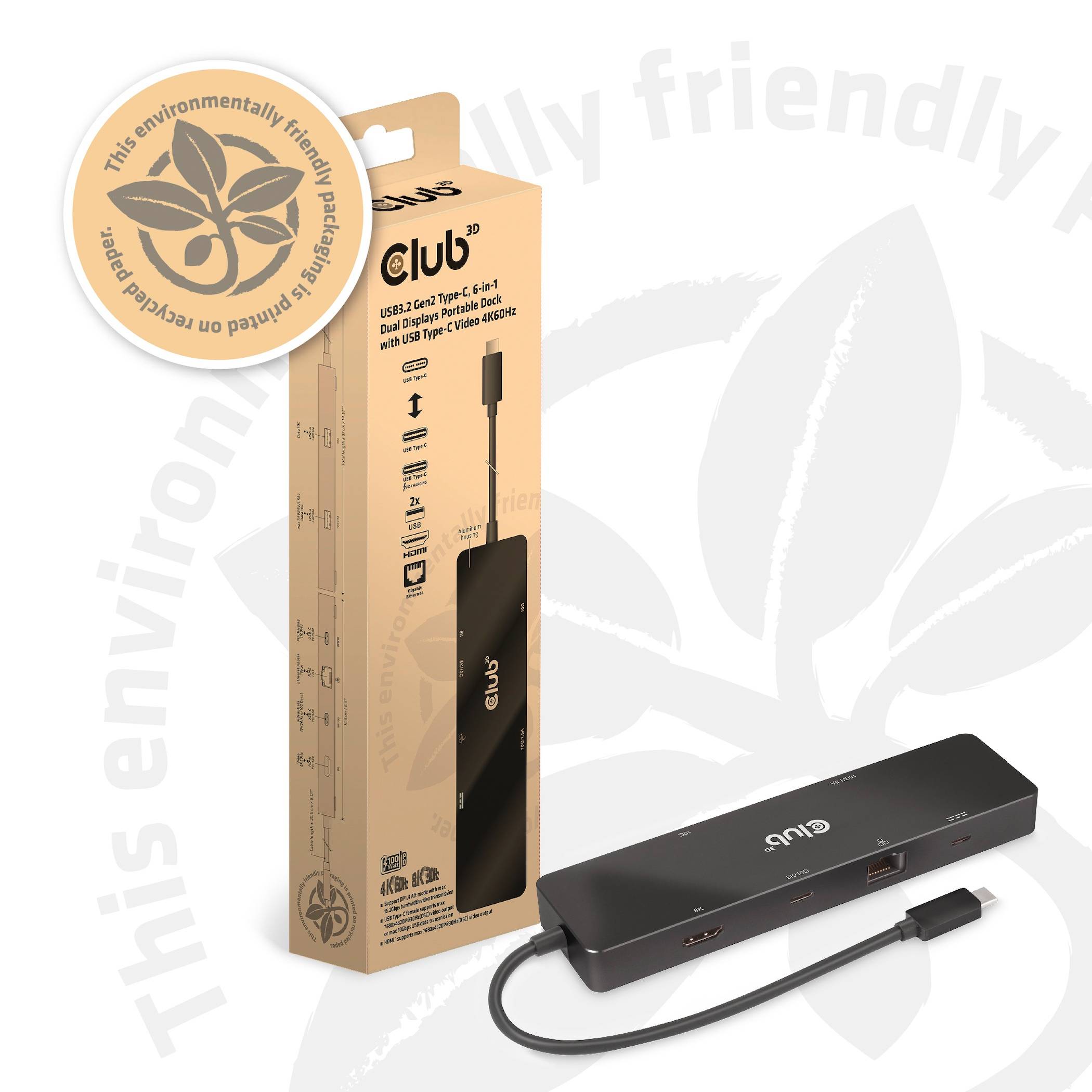

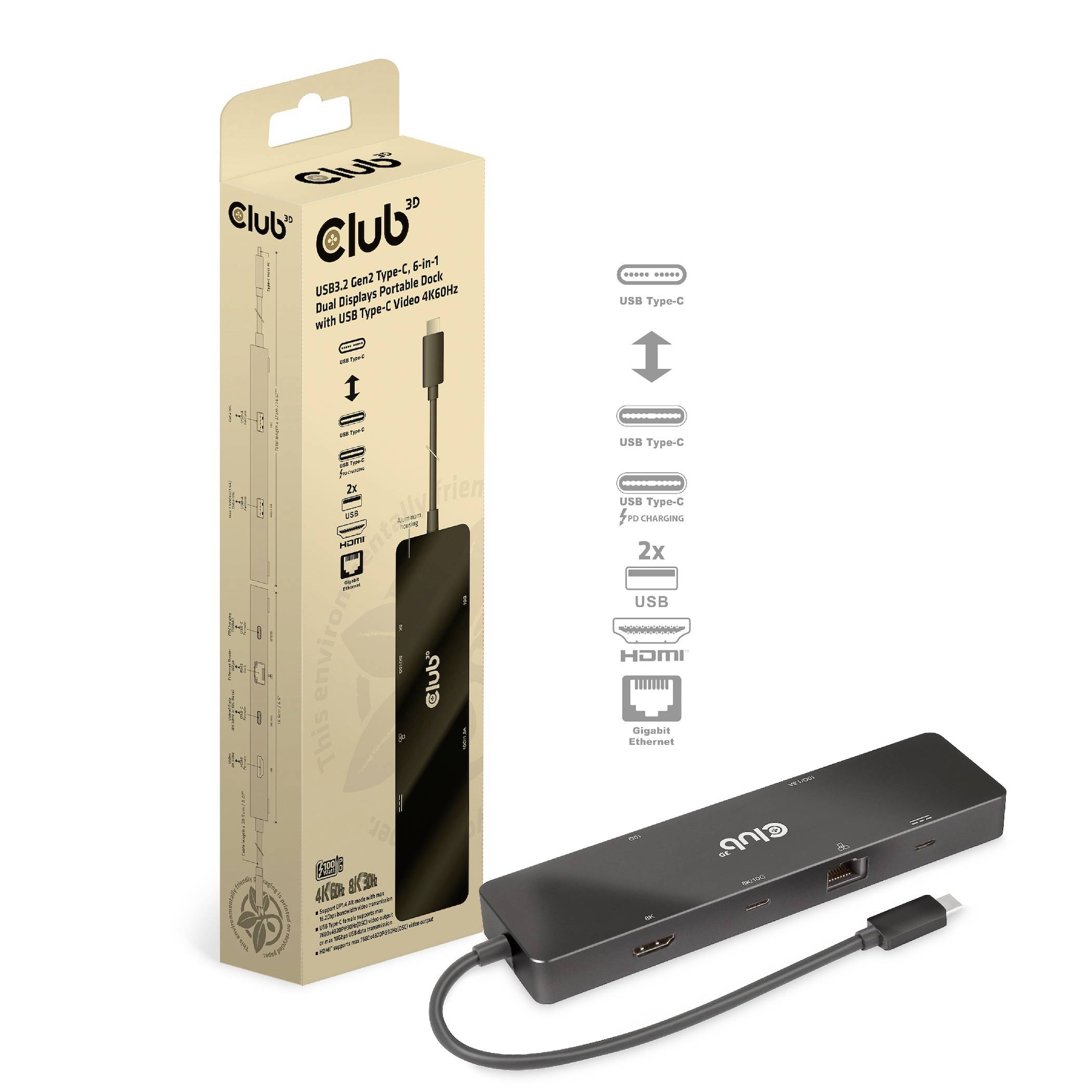

Pictured is a USB-C 6-in-1 Hub. Beside the hub is its packaging, which shows connections such as HDMI, USB and Ethernet.

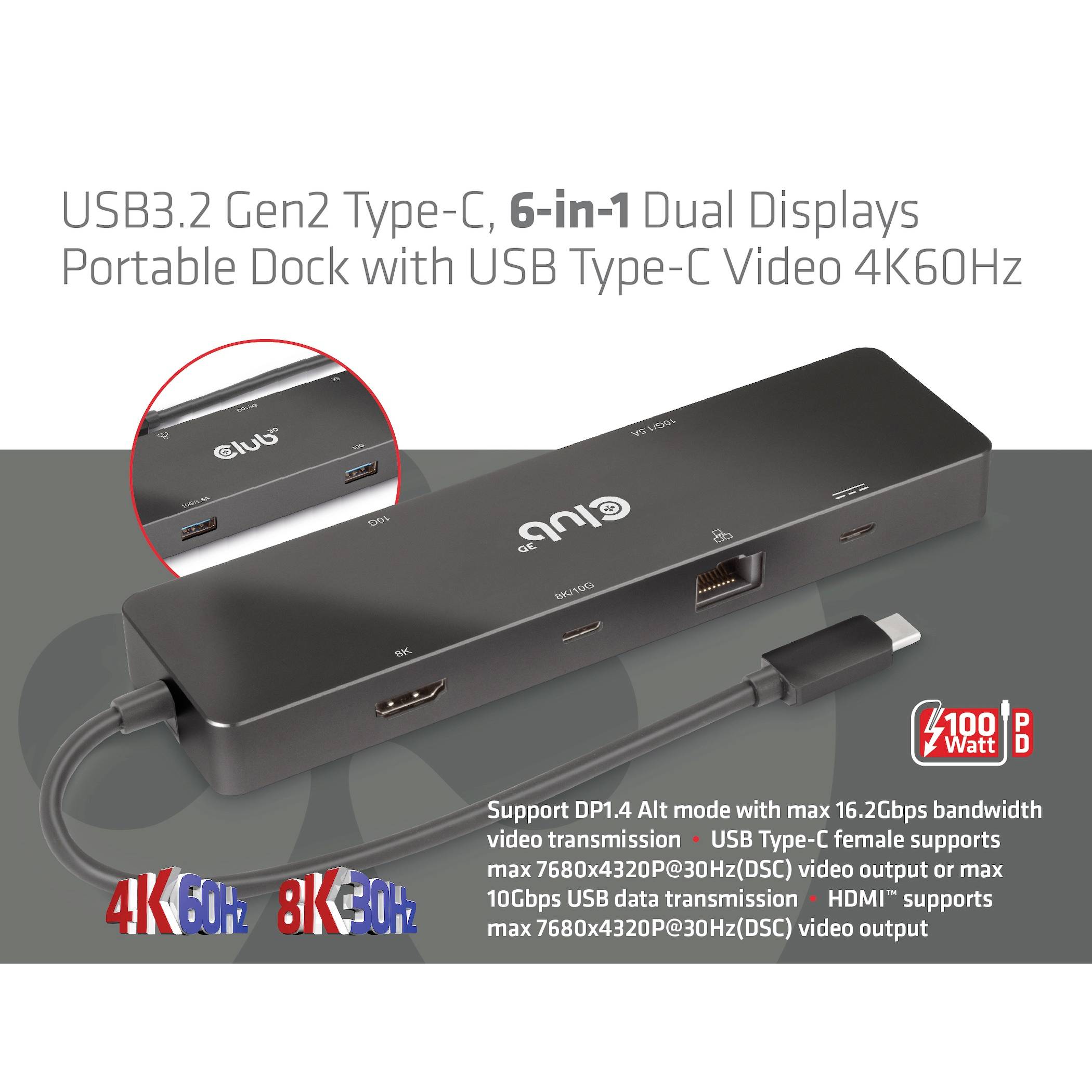

'USB3.2 Gen2 Type-C 6-in-1 Dual Displays Portable Dock with 4K60Hz Video' is shown, supporting 4K and 8K video output.

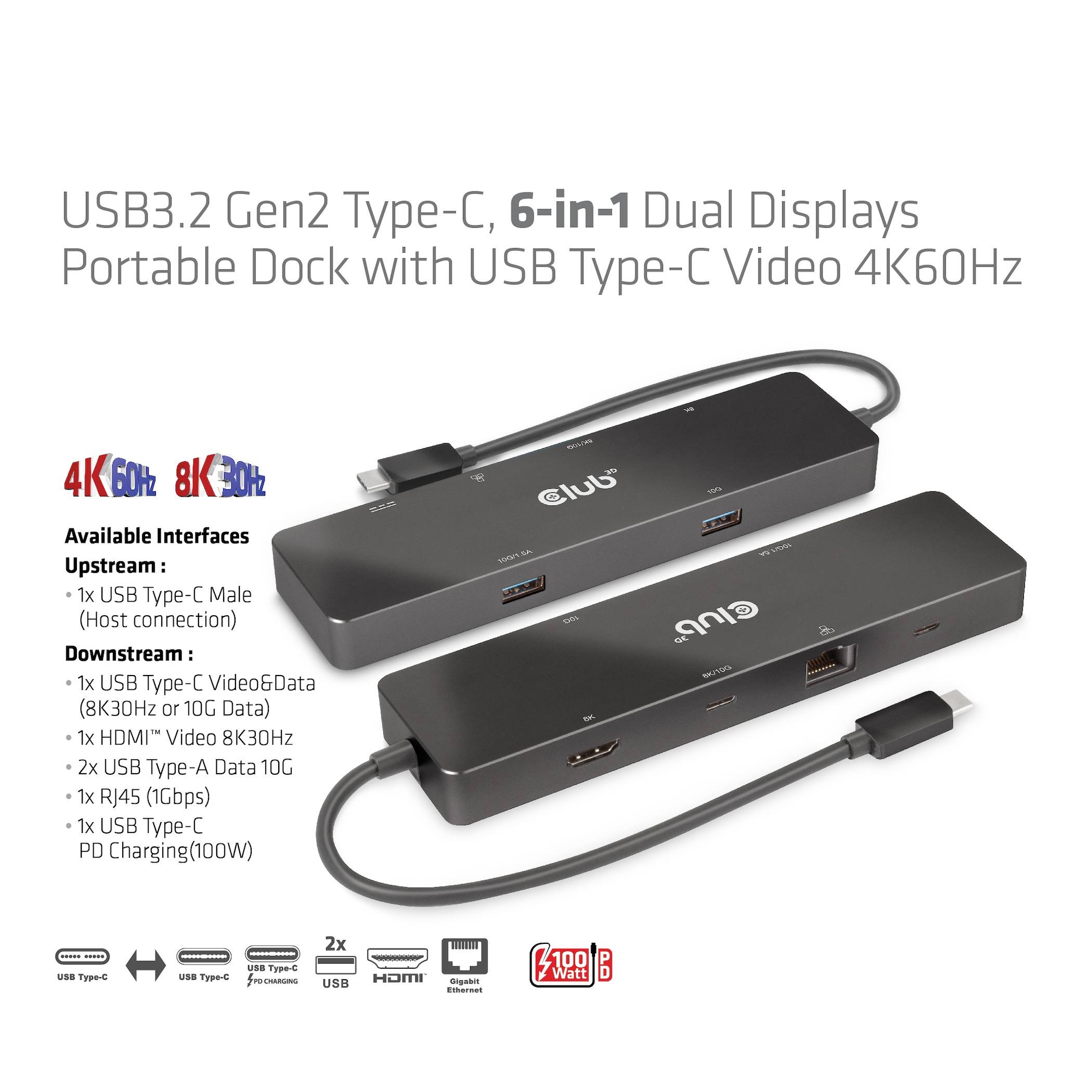

USB3.2 Type-C, 6-in-1 Dock with Dual Displays, 4K60Hz Video. Ports: 2 USB-C, 1 USB-A, 1 HDMI, 1 Network, 1 Charging Port.

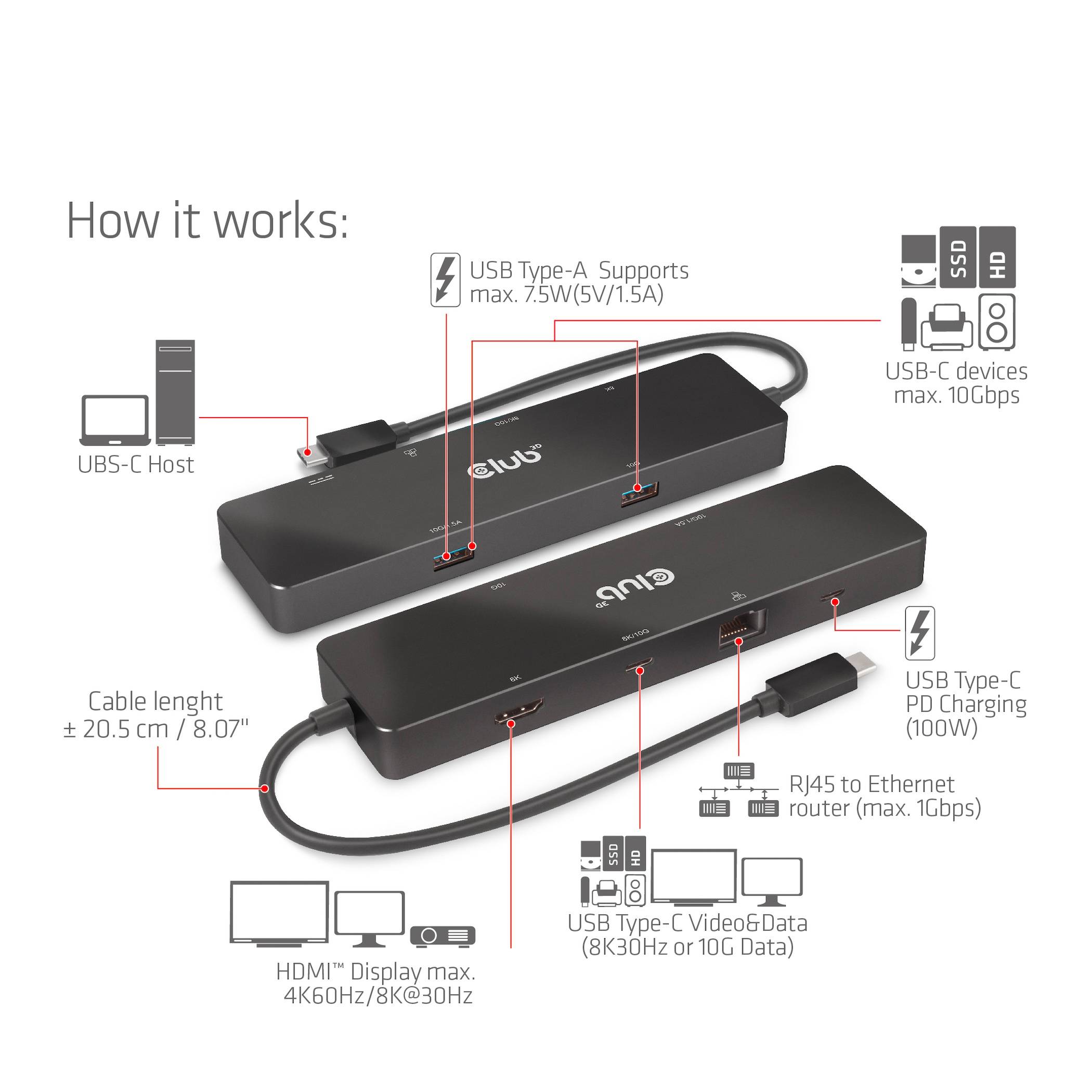

USB-C Docking Station: Two Hubs with Connection for USB-C Host, HDMI, RJ45 for Ethernet, Multiple USB Type-A Ports and Card Reader. Supports Video/Data Transfer.

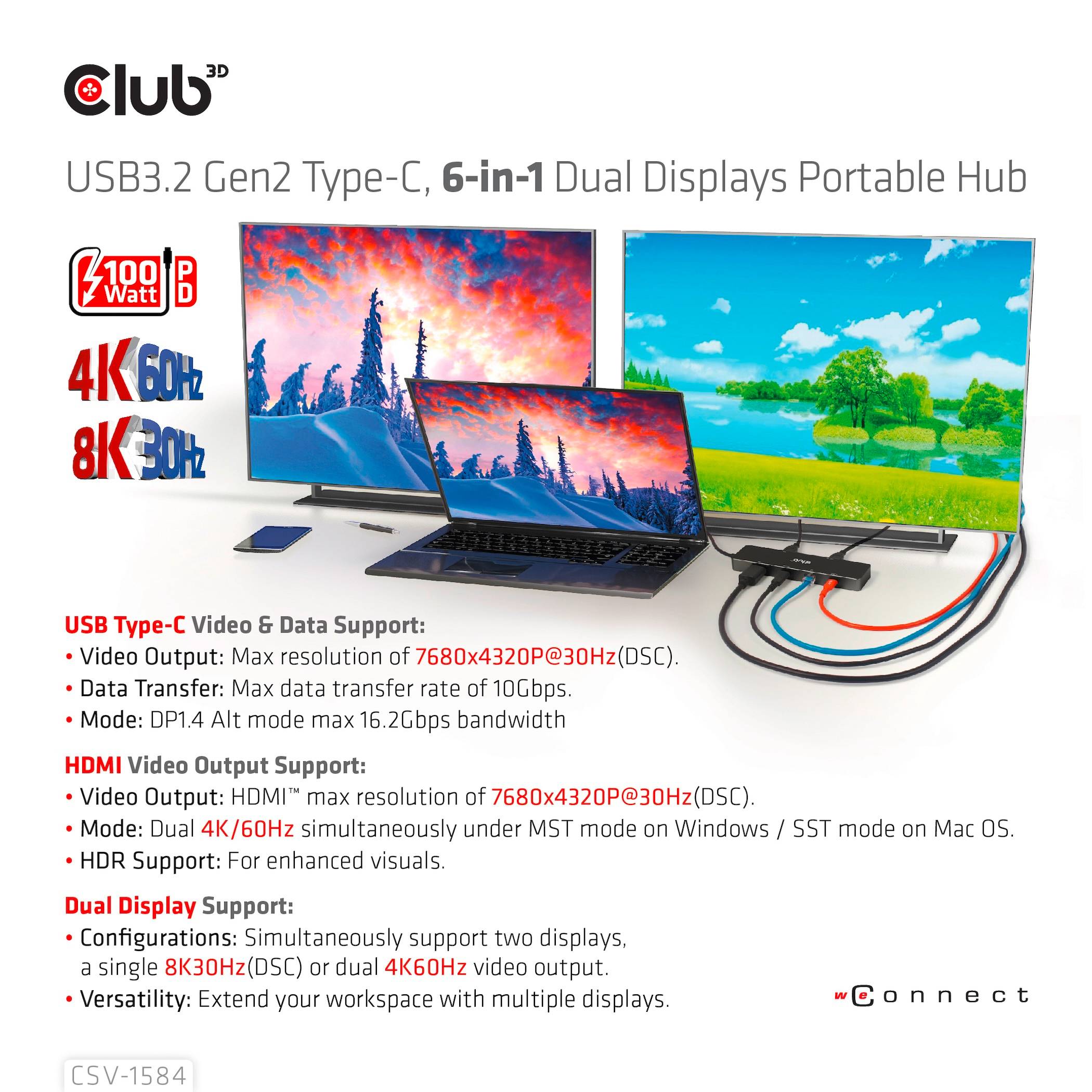

USB-C Hub with Dual Display, Supporting 4K and 8K Resolutions, Showing Laptop Connected to Two Monitors with Colour Cables.

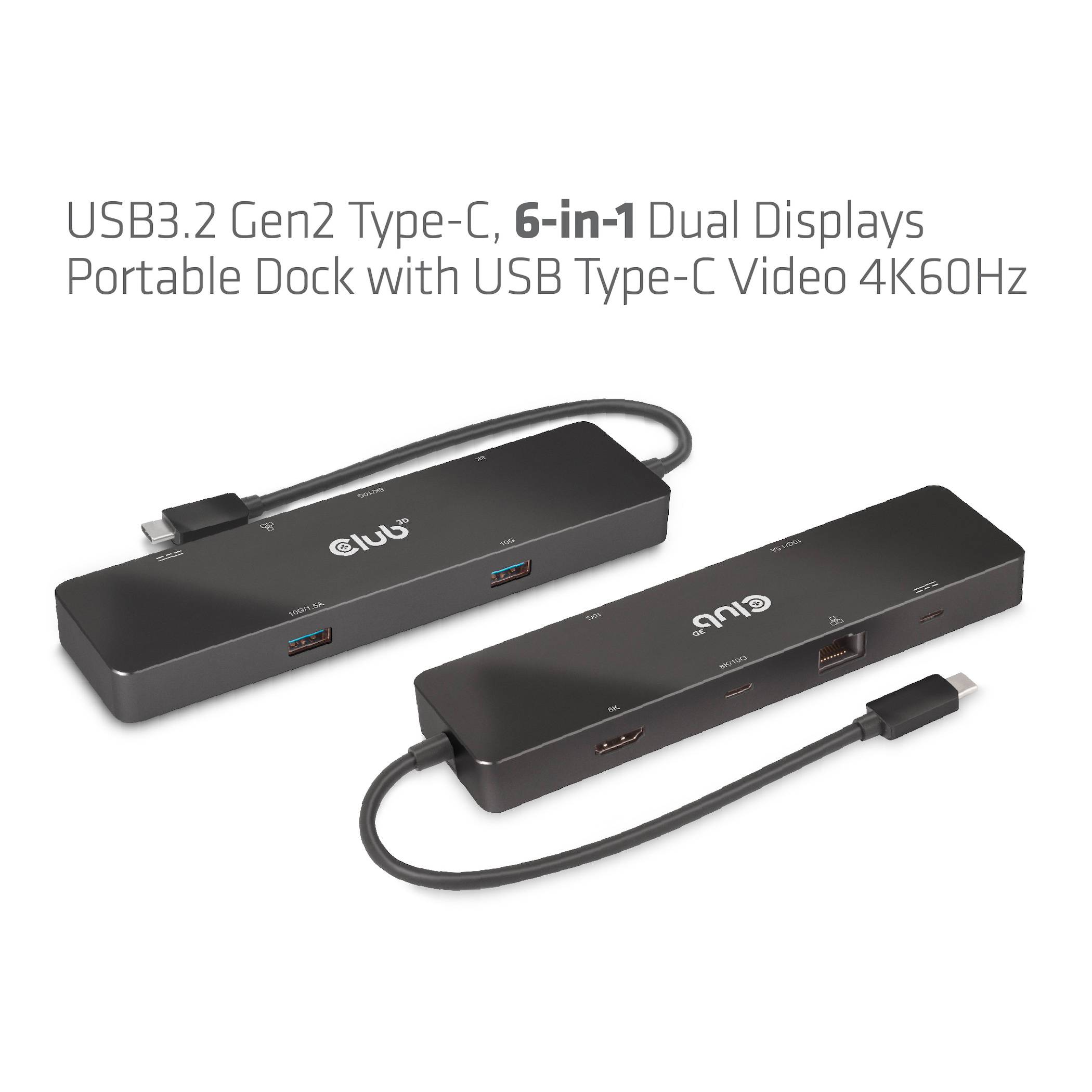

'Two black USB docking stations with various ports for dual displays and 4K60Hz video transmission.'

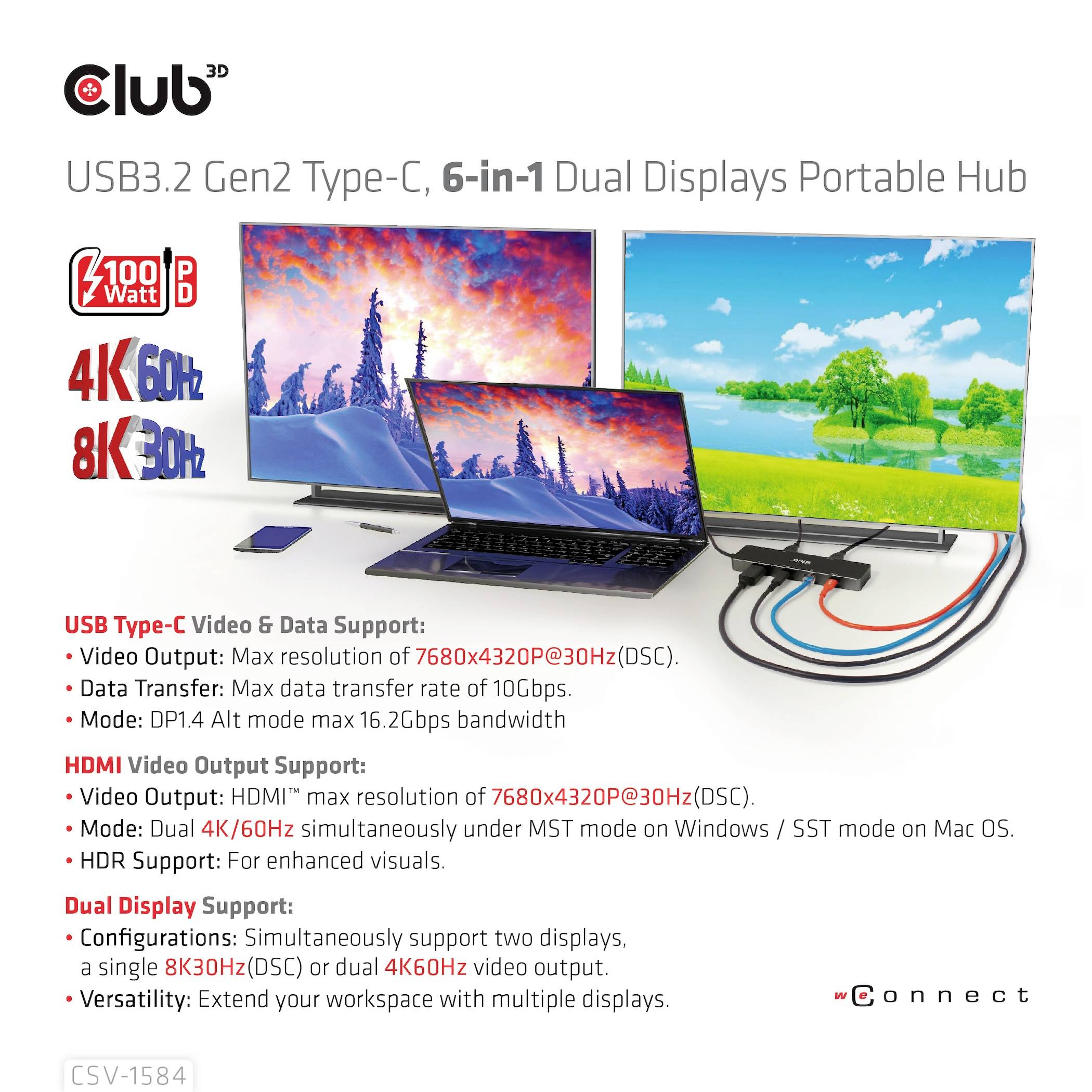

USB-C Hub with 6 Ports, Supporting Dual Display. Resolutions up to 8K@30Hz, 4K@60Hz. Data Transfer up to 1.2 Gbps.

1/20

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

club3D CSV-1584 USB-C® docking station

Connection A (or inputs): USB-C®
Connecton B (or outputs): USB-C®, HDMI®, USB 3.2 2nd Gen (USB 3.1), RJ45
No. of supported monitors: 2
Maximum resolution: 3840 x 2160 p
Key features: USB-C® powered

Technical specifications

Product type: USB-C® docking station

Type A: USB-C®

Type B: USB-C®
HDMI®
USB 3.2 2nd Gen (USB 3.1)
RJ45

Suitable for: Notebook

Supported monitors: 2

Resolution (max.): 3840 x 2160 p

Factory colour: Black

Features: USB-C® powered

Width: 165 mm

Height: 43.5 mm

Depth: 16 mm

Weight: 144 g

Dim: (W x H x D) 165 x 43.5 x 16 mm

Compatible with (brand): Club 3D

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3190687 club3D USB-C® docking station USB-C Dock Compatible with (brand): Club 3D USB-C® powered

Description

6-in-1 USB3.2 Gen2 Type-C Dual Displays Portable dock with USB type-C video 4K60HZ
The Club 3D CSV-1584 is a 6-in-1 USB 3.2 Gen2 Type-C Dock with HDMI™ 8K30Hz/4K60Hz, 2xUSB Type A(10G), Ethernet RJ45(1Gbps) and 2xUSB Type-C, 1x Video4K60HZ or Data(10G) and 1x PD3.0 charge 100 Watts, an ideal solution for expansion of USB Type-C ports or Thunderbolt hosts (PC/laptop/mobile, etc.). especially for those hosts with a single USB Type-C port. This docking station uses a DP1.4 Alt mode supporting IC, which allows the output of up to 8K30Hz (DSC) or dual different video (4K60Hz*2), and the USB Type-C Video Port also supports the transfer of USB3.2 Gen2 data at up to 10Gbps. 2 USB type-A and USB type-C video ports enable the simultaneous connection of 3 USB devices. With the Gigabit Ethernet connection, you can surf in the Internet and the USB type-C PD port supports up to 100 W PD charging. It can work with all DP Alt Mode supported USB Type-C hosts.

This text is machine translated.
