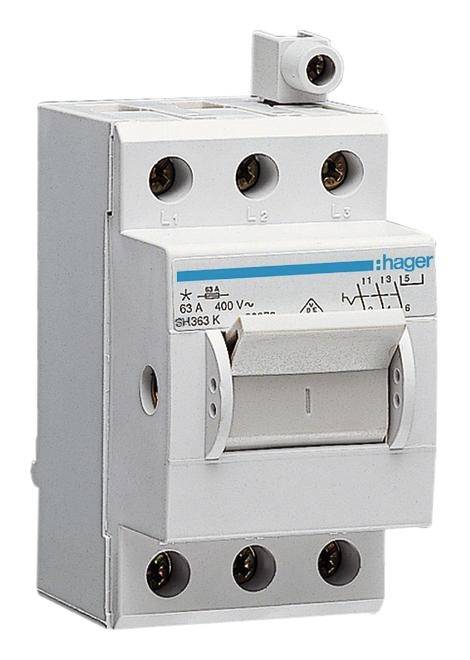

Compact switch 3-pin 63 A 3 makers 400 V Hager SH363K
Product type
Compact switch
Nominal voltage
400 V
Number of pins
3
Nominal current - rounded value
63 A
Contact type
3 makers
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Compact switch
- Contact type
3 makers
- Nominal voltage
400 V
- Number of pins
3
- Dim
(W x H x D) 43.75 x 77 x 65 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Width
43.75 mm
- Height
77 mm
- Depth
65 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198848 Compact switch 3-pin 63 A 3 makers 400 V Hager SH363K
User & Safety Instructions
User & Safety Instructions 3198848 Compact switch 3-pin 63 A 3 makers 400 V Hager SH363K
Description
Compact Switch 63A 3 closer 400V AC with additional terminal 2.5PLE. On/off switch 63 A in compact housing according to DIN EN 60669-1 (VDE 0632-1), DIN EN 60669-2-4 (VDE 0632-2-4), DIN EN IEC 60947-3 (VDE 0660-107) with VDE symbols
