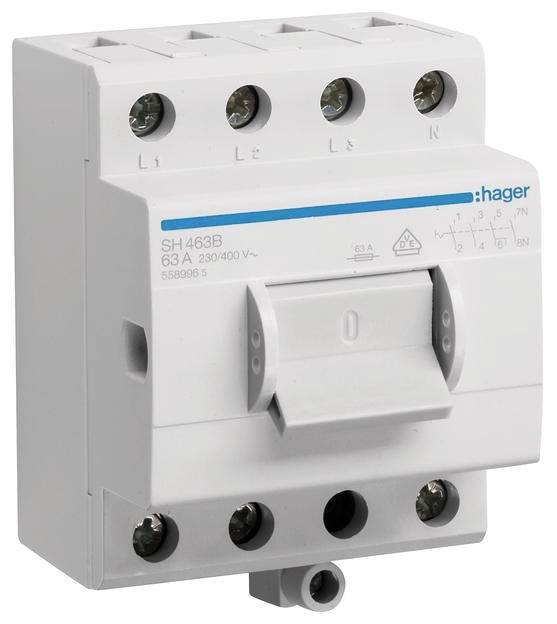

Compact switch 4-pin 63 A 4 makers 400 V Hager SH463B
EAN:
Part number:
Item no:
Product type
Compact switch
Nominal voltage
400 V
Number of pins
4
Nominal current - rounded value
63 A
Contact type
4 makers
Datasheet (PDF)
Technical specifications
- Product type
Compact switch
- Contact type
4 makers
- Nominal voltage
400 V
- Number of pins
4
- Dim
(W x H x D) 61.25 x 77 x 65 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of partitions
3.5
- Width
61.25 mm
- Height
77 mm
- Depth
65 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198730 Compact switch 4-pin 63 A 4 makers 400 V Hager SH463B
User & Safety Instructions
User & Safety Instructions 3198730 Compact switch 4-pin 63 A 4 makers 400 V Hager SH463B
Description
Compact Switch 63A 4 closer 400V AC with additional terminal 3.5PLE. On/off switch 63 A in compact housing according to DIN EN 60669-1 (VDE 0632-1), DIN EN 60669-2-4 (VDE 0632-2-4), DIN EN IEC 60947-3 (VDE 0660-107) with VDE symbols
