Name: Conceptronic USB-C® docking station DONN13G 4-in-1 MST Docking Station USB 3
Brand: Conceptronic
SKU: 3762595

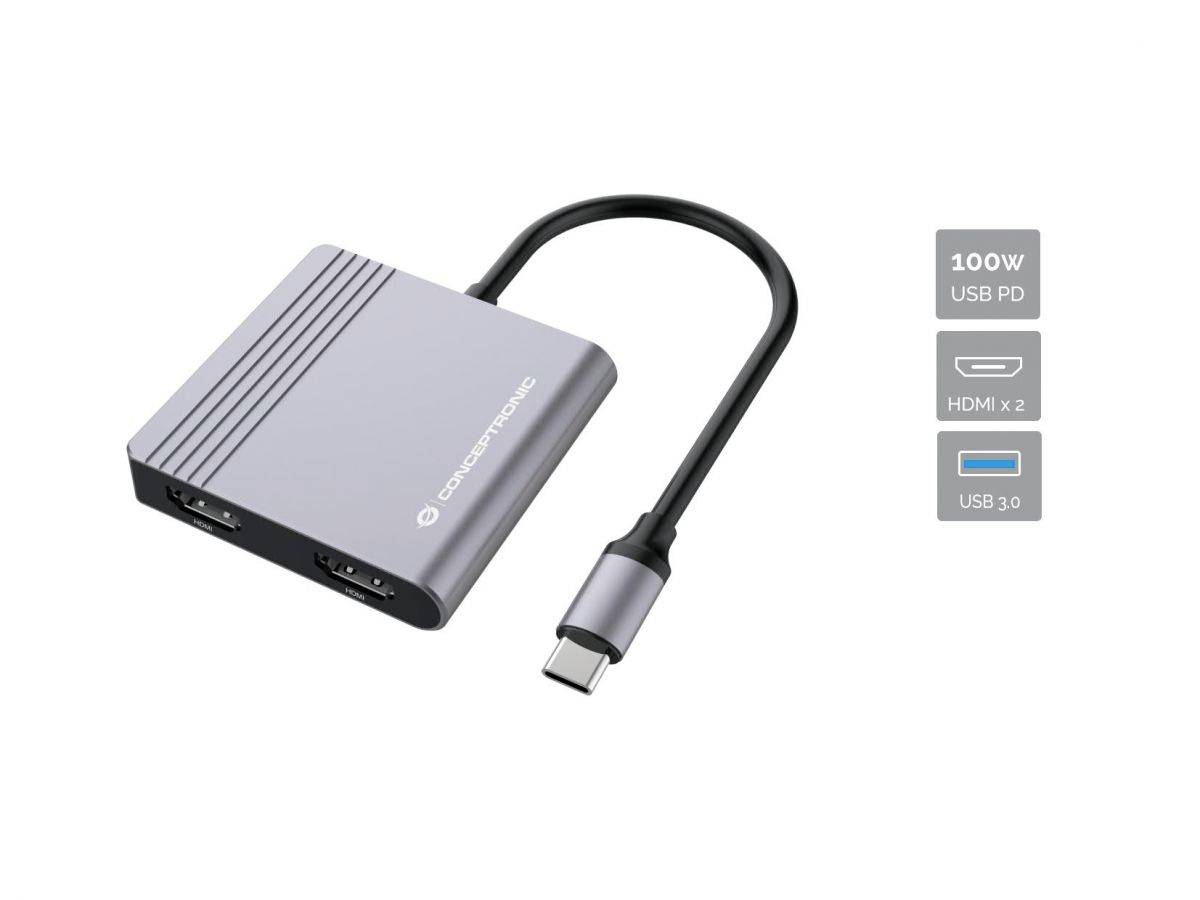

USB-C hub adapter with two HDMI ports, one USB 3.0 port, and 100W USB PD charging.

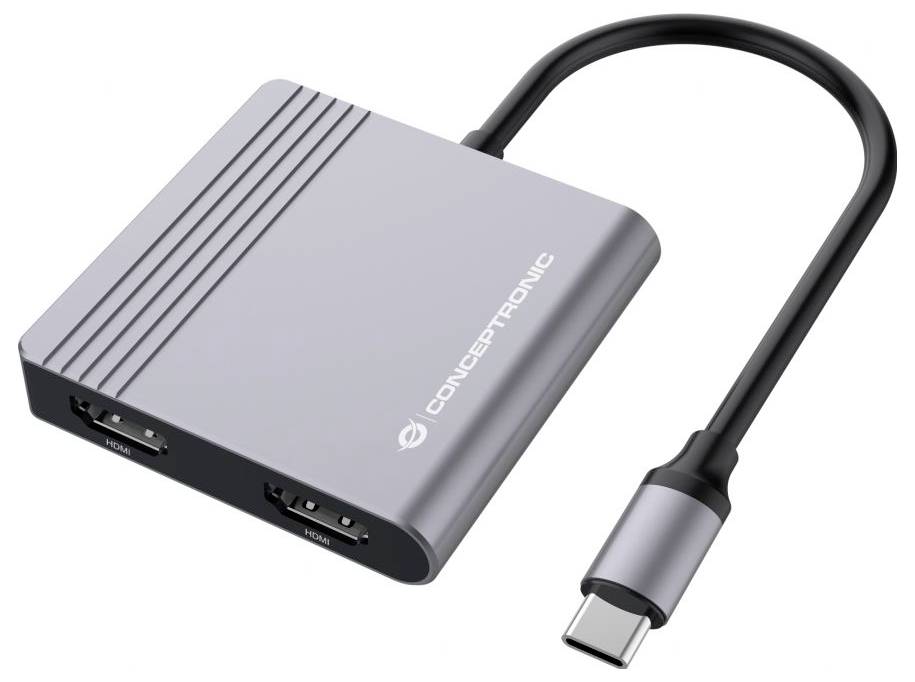

ConceptDronic USB-C adapter hub with two ports and attached cable, shown on a white background.

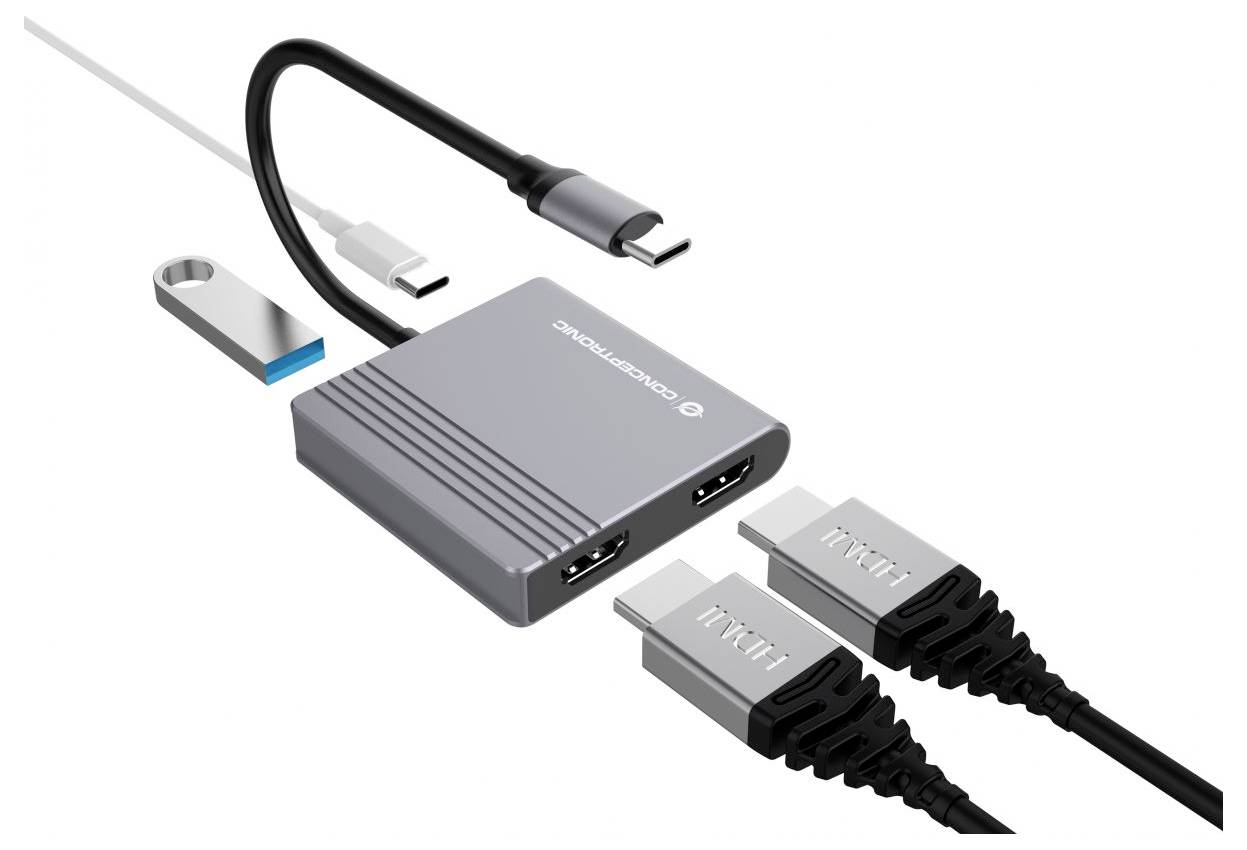

USB-C hub with attached cables and connectors, showing a compact adapter with multiple ports and included USB-A and USB-C leads.

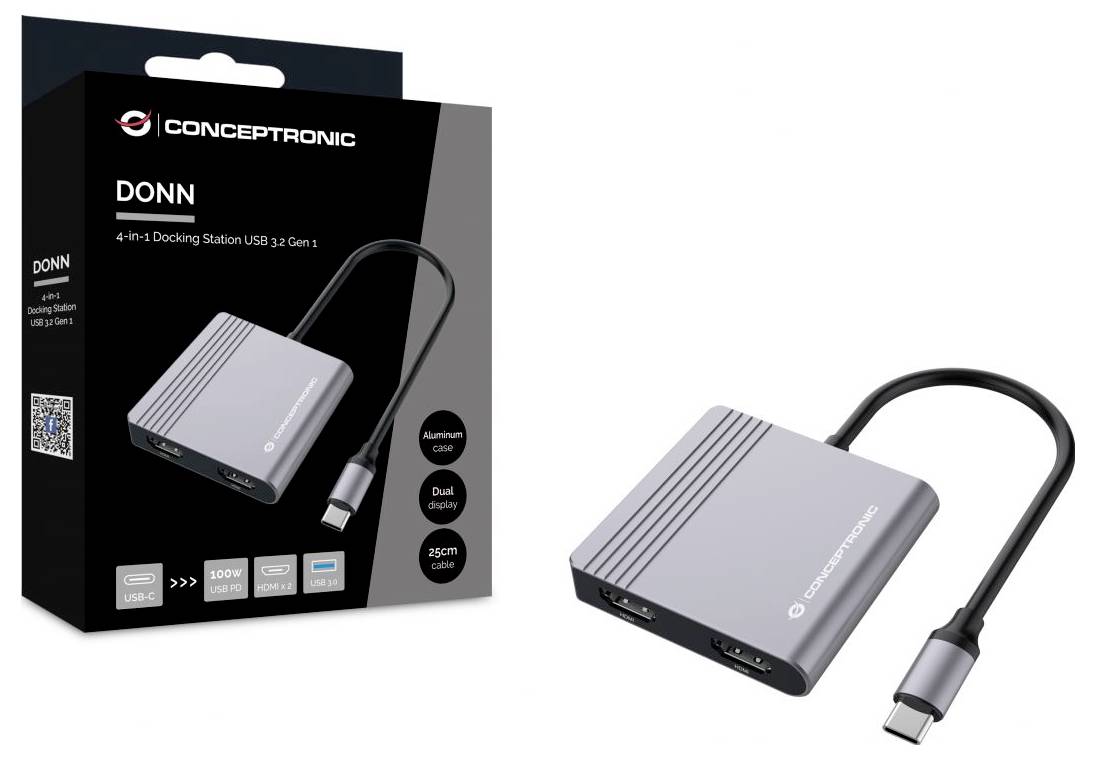

Conceptronic DONN 4-in-1 docking station USB 3.2 Gen 1, shown with its box and the silver aluminum hub with attached USB-C cable.

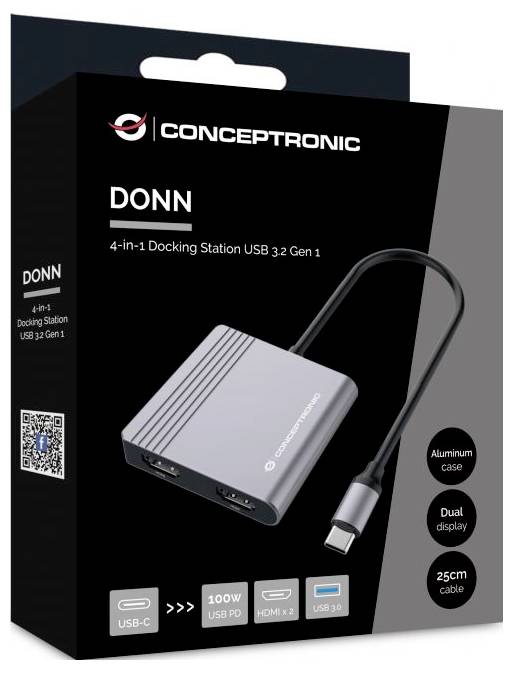

Concepttronic DONN 4-in-1 docking station with USB-C cable, 100W USB PD, HDMI x2, and USB 3.0 in aluminum case<br>

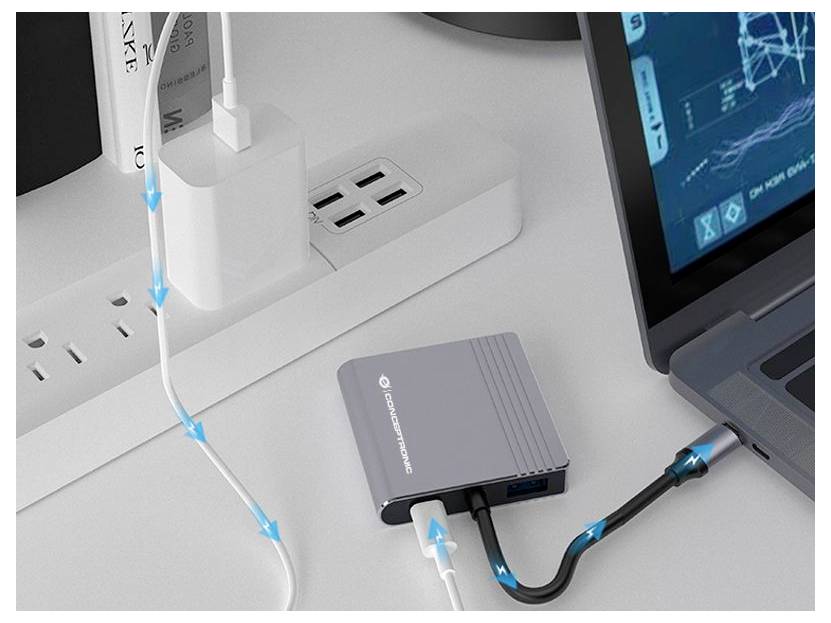

Laptop connected to a USB-C hub/dock, with arrows showing power and data flow from the wall outlet to the hub and into the computer.<br>

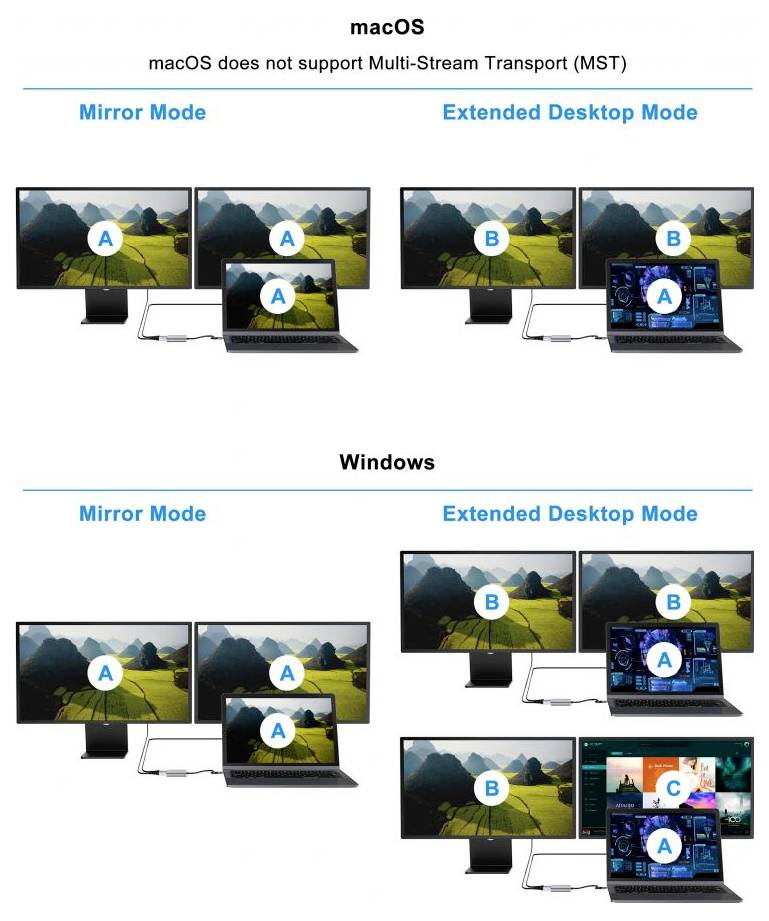

Diagram comparing multi-monitor setups on macOS and Windows: macOS supports mirror and extended desktop modes, while Windows also supports a third multi-stream configuration with displays A, B, and C.

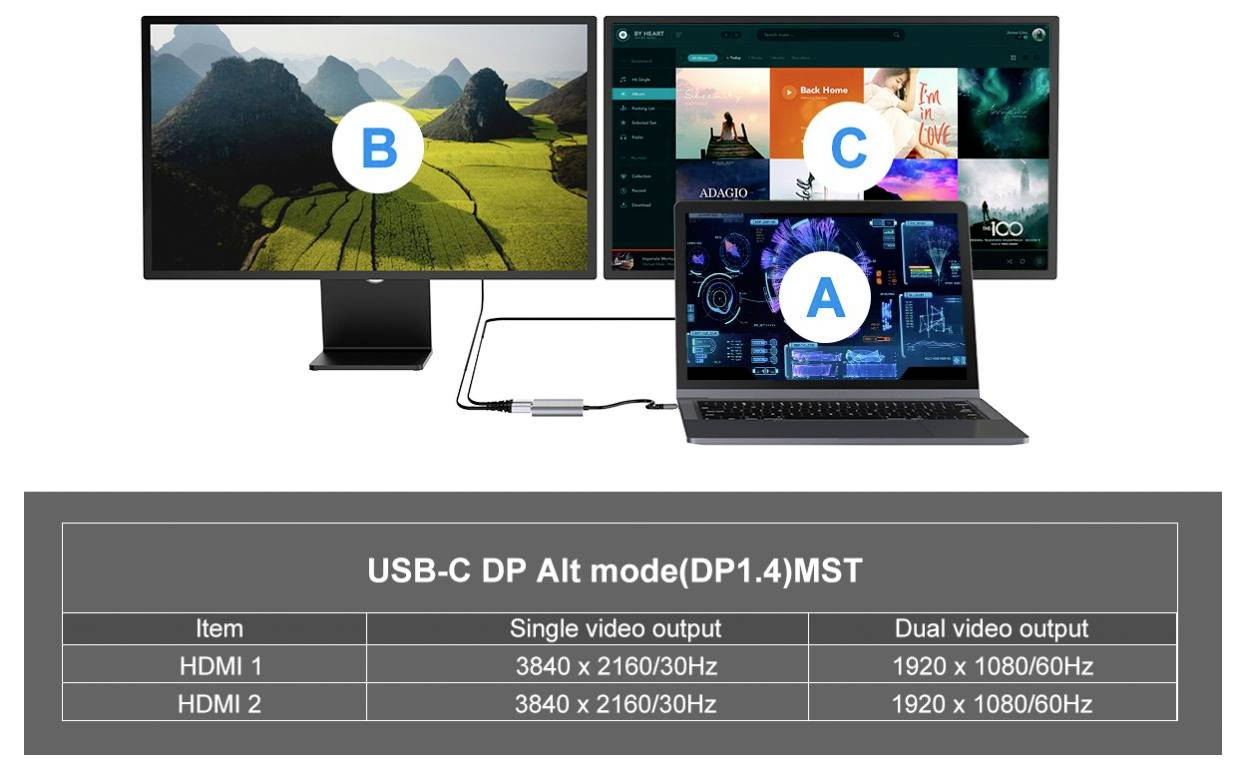

Diagram of USB-C DP Alt mode (DP1.4) MST showing one laptop connected to two displays for dual video output, with a table listing HDMI 1 and HDMI 2 resolutions.

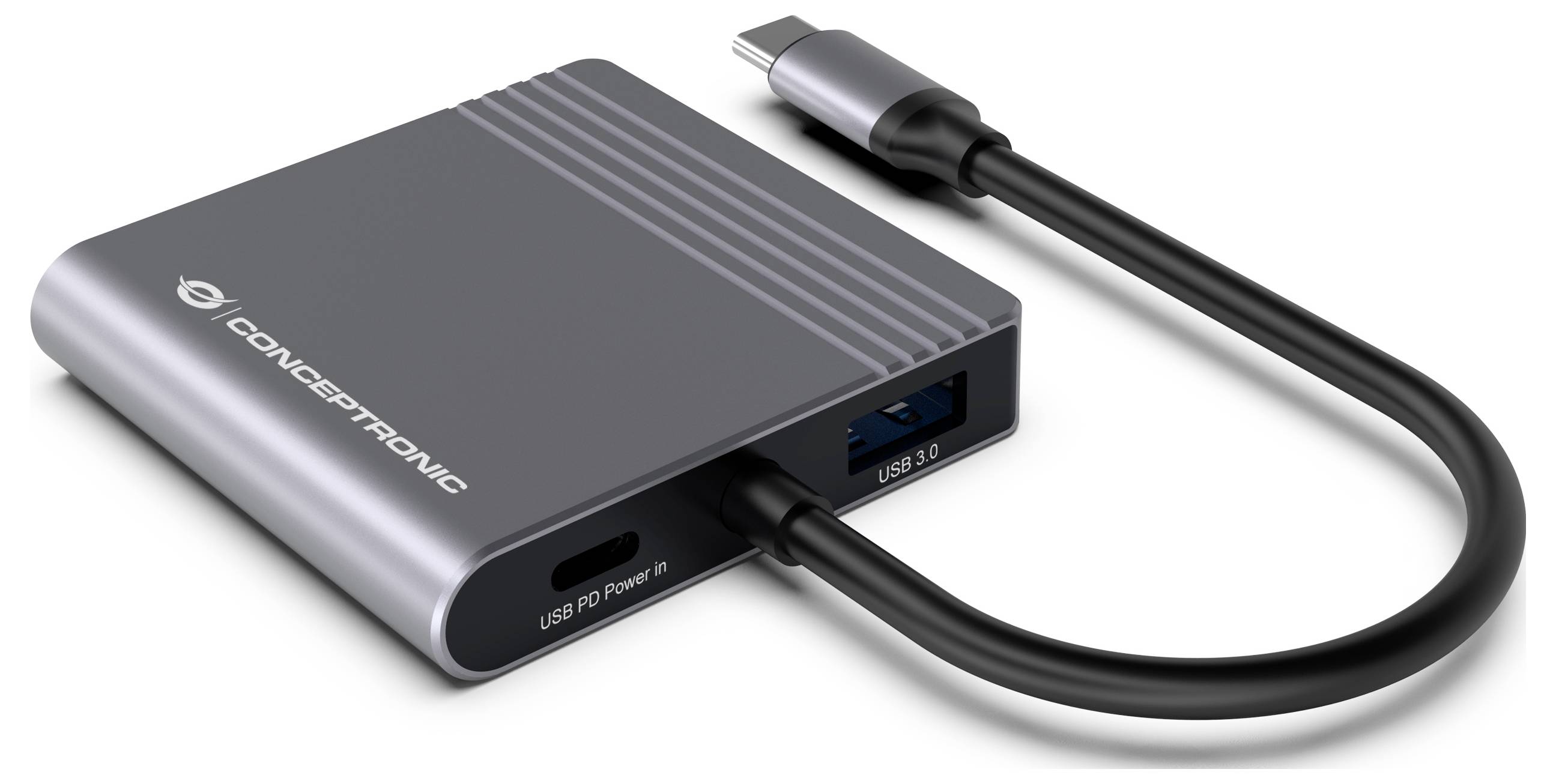

Compact Conceptronic USB-C hub with a built-in cable, showing ports labeled 'USB PD Power' and 'USB 3.0'.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Conceptronic DONN13G USB-C® docking station

Connection A (or inputs):
Connecton B (or outputs):
No. of supported monitors: 2
Maximum resolution:
Key features:

Technical specifications

Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
HDMI version 2.0
Data transfer rate 5 Gbps
HD type 4K Ultra HD
Other operating systems support: ChromeOS

Product type: USB-C® docking station

Supported monitors: 2

Cable length: 0.25 m

Factory colour: Grey

Width: 60 mm

Height: 11.5 mm

Depth: 61.5 mm

Weight: 60 g

Dim: (W x H x D) 60 x 11.5 x 61.5 mm

Frame rate: 60 Hz

No. of HDMI ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 1 x

Charging method (Power Delivery): with USB Power Delivery

Material (details): Aluminium

Transfer type: Corded

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3762595 Conceptronic USB-C® docking station DONN13G 4-in-1 MST Docking Station USB 3

Description

The 4-in-1 docking station allows you to expand the USB type-C capacity of your device with HDMI/USB-C PD/USB-3.0 port. The adapter offers an easy way to connect HDTVs or other devices, such as monitors or projectors, with USB-type C devices that support HDMI output, such as smartphones, portable games consoles, MacBooks, Chromebook pixels and other current laptops with USB-type C or Thunderbolt 3 ports. The multiport video adapter allows you to mirror or expand the content on two additional monitors at the same time (2 x HDMI). Your ideal and fast solution for setting up a dual-screen workstation.
Multi Stream Transport or MST is an option to connect one or more monitors via a single DisplayPort. This technology makes possible, for example. Through a docking station, connect two monitors to a laptop. This works when multiple video signals are combined in a single stream and then "unpacked" on the display. MST works on any Windows® device that supports DP Alt Mode (DisplayPort Alternate Mode) via USB-C.
Perfect for home entertainment, office presentations or classroom teaching.

This text is machine translated.
