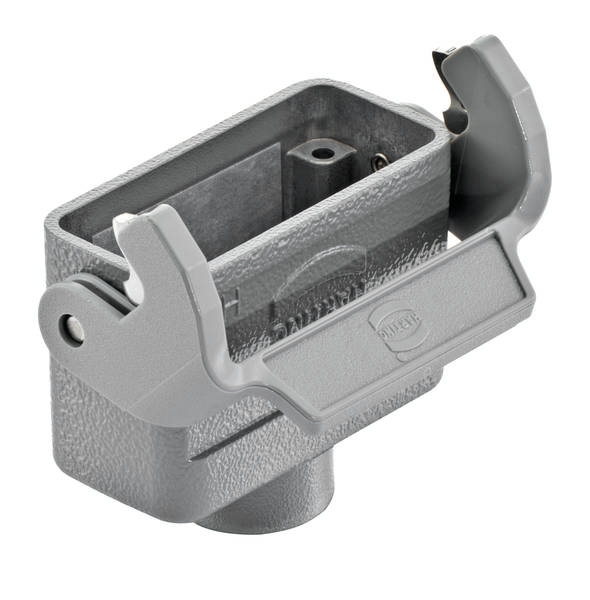

Connector enclosure 19 20 010 1730 19200101730 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector enclosure
Series
Han® 10A
Thread size
M20
Case material
Aluminium, die cast
Type
19 20 010 1730
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 95 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Standard casing for industrial applications
- Material locking: Polycarbonate (PC);stainless steel
- Protection class according to IEC 60529: IP65
- Design size 10 A
- Approvals DNV GL
- Casing type: Clutch housing
- Design: Straight cable input
- Cable input 1x M20
- Housing series: HAN A®
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;4X;12
- Colour locking: RAL 7037 (dust gray)
- Material flammability class to UL 94 (locking bar): V-0
- Han-Easy Lock®: Yes
- Type
19 20 010 1730
- Product type
Connector enclosure
- Series
Han® 10A
- Manufacturer part #
19200101730
- Features
Longitudinal brace
- Thread size
M20
- Type
Straight cable input
- Case material
Aluminium, die cast
- Brackets
1
- Series
Han A®
- Content
1 pc(s)
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Grey
Single locking lever
1
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Coupling housing
IP65
Above
Base unit
Metric
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3002073 Connector enclosure 19 20 010 1730 19200101730 HARTING 1 pc(s)
Datasheet 3002073 Connector enclosure 19 20 010 1730 19200101730 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3002073 Connector enclosure 19 20 010 1730 19200101730 HARTING 1 pc(s)
Description
Coupling casing, size: 10 A, low design, longitudinal rail, polycarbonate (PC), Stainless steel, straight cable input, 1x M20
