Connector enclosure 19 43 124 0738 19431240738 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector enclosure
Series
Han® B
Thread size
M40
Case material
Polyamide
Type
19 43 124 0738
Datasheet (PDF)
Technical specifications
- Locking type: Transverse brace
- Temperature limit: -40 ... +125 °C
- Material flammability class acc. To UL 94: V-0
- Standards: IEC 61984; EN 45545-2 Fire protection in rail vehicles
- Net weight: 260.92 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Material locking: Polyamide (PA);glass fiber reinforced
- Protection class according to IEC 60529 IP66
- Housing description: With integrated cable gland
- Design size 24 B
- Casing type: Clutch housing
- Design: Straight cable input
- Cable input 1x M40
- Clamping range: 16 ... 28 mm
- Housing series: Han-Eco® B.
- Material housing: Polyamide (PA);glass fiber reinforced
- Colour of housing: RAL 9005 (jet black)
- Material sealing: NBR
- Colour of seal RAL 9005 (jet black)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Lock color: RAL 9005 (jet black)
- Material flammability class to UL 94 (locking bar): V-0
- Number of relocks: ≥ 500
- Type
19 43 124 0738
- Product type
Connector enclosure
- Series
Han® B
- Manufacturer part #
19431240738
- Features
+ cable gland
- Thread size
M40
- Type
Straight cable input
- Case material
Polyamide
- Mating cycles
≥ 500
- Series
Han-Eco® B
- Content
1 pc(s)
- Terminal Ø (max.)
16 mm
- Clamp Ø
28 mm
IP66
- Max. temperature
+125 °C
- Min. temperature
-40 °C
TRUE
FALSE
Black
Double locking levers
1
FALSE
FALSE
Plastic
Other
-40-125 °C
V0
FALSE
TRUE
Coupling housing
IP66
Above
Base unit
Metric
Documents & Downloads
Datasheet
Datasheet 3002197 Connector enclosure 19 43 124 0738 19431240738 HARTING 1 pc(s)
Datasheet 3002197 Connector enclosure 19 43 124 0738 19431240738 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3002197 Connector enclosure 19 43 124 0738 19431240738 HARTING 1 pc(s)
Description

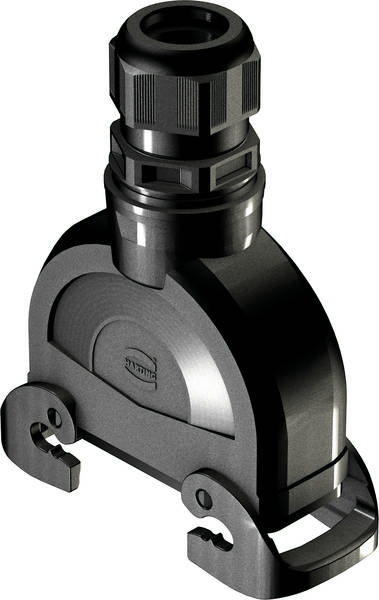

Coupling casing, with integrated cable gland, size: 24 B, double handle, polyamide (PA), Glass-fiber reinforced, straight cable input, 1x M40
