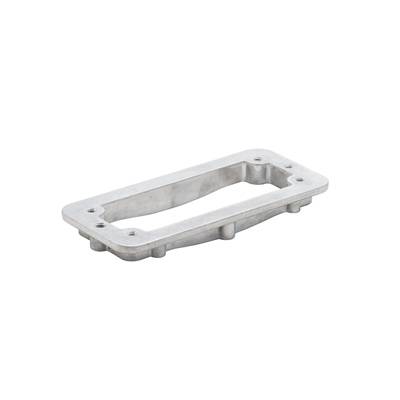

Connector housing HDC IP68 16B FRAME M6 Weidmüller Content: 1 pc(s) Connector housing
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector housing
Type
HDC IP68 16B FRAME M6
Manufacturer part #
1110910000
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 16B FRAME M6
Technical specifications
- Size: 6
- Mounting dimensions Width: 103 mm
- Mounting dimensions Height: 32 mm
- Width: 58 mm
- EMC Housing: Yes
- Height: 14 mm
- Depth: 129 mm
- Packaging type
Piece
- Type
HDC IP68 16B FRAME M6
- Product type
Connector housing
- Manufacturer part #
1110910000
- Content
1 pc(s)
- Material
Aluminium (die-cast)
IP68
IP69K
- Max. temperature
+125 °C
- Height
14 mm
- Length
129 mm
- Width
58 mm
- Case material
Aluminium, die cast
- Min. temperature
-50 °C
- Weight
77 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200568 Connector housing HDC IP68 16B FRAME M6 Weidmüller Content: 1 pc(s) Connector housing
User & Safety Instructions
User & Safety Instructions 200568 Connector housing HDC IP68 16B FRAME M6 Weidmüller Content: 1 pc(s) Connector housing
Description
Connector housing. HDC-casing, size: 6, protection class IP68. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
