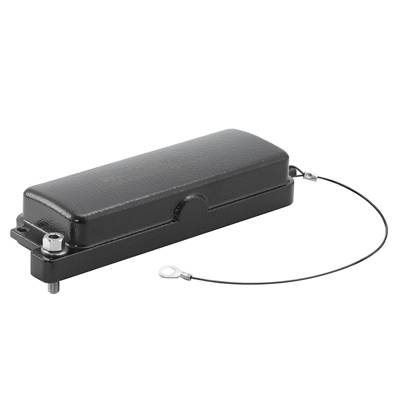

Connector housing HDC IP68 24B COVER Weidmüller Content: 1 pc(s) Connector housing
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector housing
Type
HDC IP68 24B COVER
Manufacturer part #
1083090000
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 24B COVER
Technical specifications
- Tightening torque: 6.5 Nm
- Size: 8
- Width: 58 mm
- EMC Housing: Yes
- Height: 31 mm
- Surface: Powder coating
- Depth: 191 mm
- Packaging type
Piece
- Type
HDC IP68 24B COVER
- Product type
Connector housing
- Manufacturer part #
1083090000
- Content
1 pc(s)
- Material
Aluminium (die-cast)
IP68
IP69K
- Max. temperature
+125 °C
- Height
31 mm
- Length
191 mm
- Width
58 mm
- Case material
Aluminium, die cast
- Min. temperature
-50 °C
- Weight
208 g
58
TRUE
31 mm
191 mm
Black
Screw
FALSE
TRUE
Aluminium
Powder coating
-50-125 °C
Other
Other
IP66
Aluminium
Other
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199775 Connector housing HDC IP68 24B COVER Weidmüller Content: 1 pc(s) Connector housing
User & Safety Instructions
User & Safety Instructions 199775 Connector housing HDC IP68 24B COVER Weidmüller Content: 1 pc(s) Connector housing
Description
Connector housing. HDC-casing, size: 8, protection class IP 68, cover for enclosure bottom parts, screw cap, Standard. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
This text is machine translated.
This text is machine translated.
