Construct-Line CEE power distributor 169572
EAN:
Part number:
Item no:
Highlights & Details

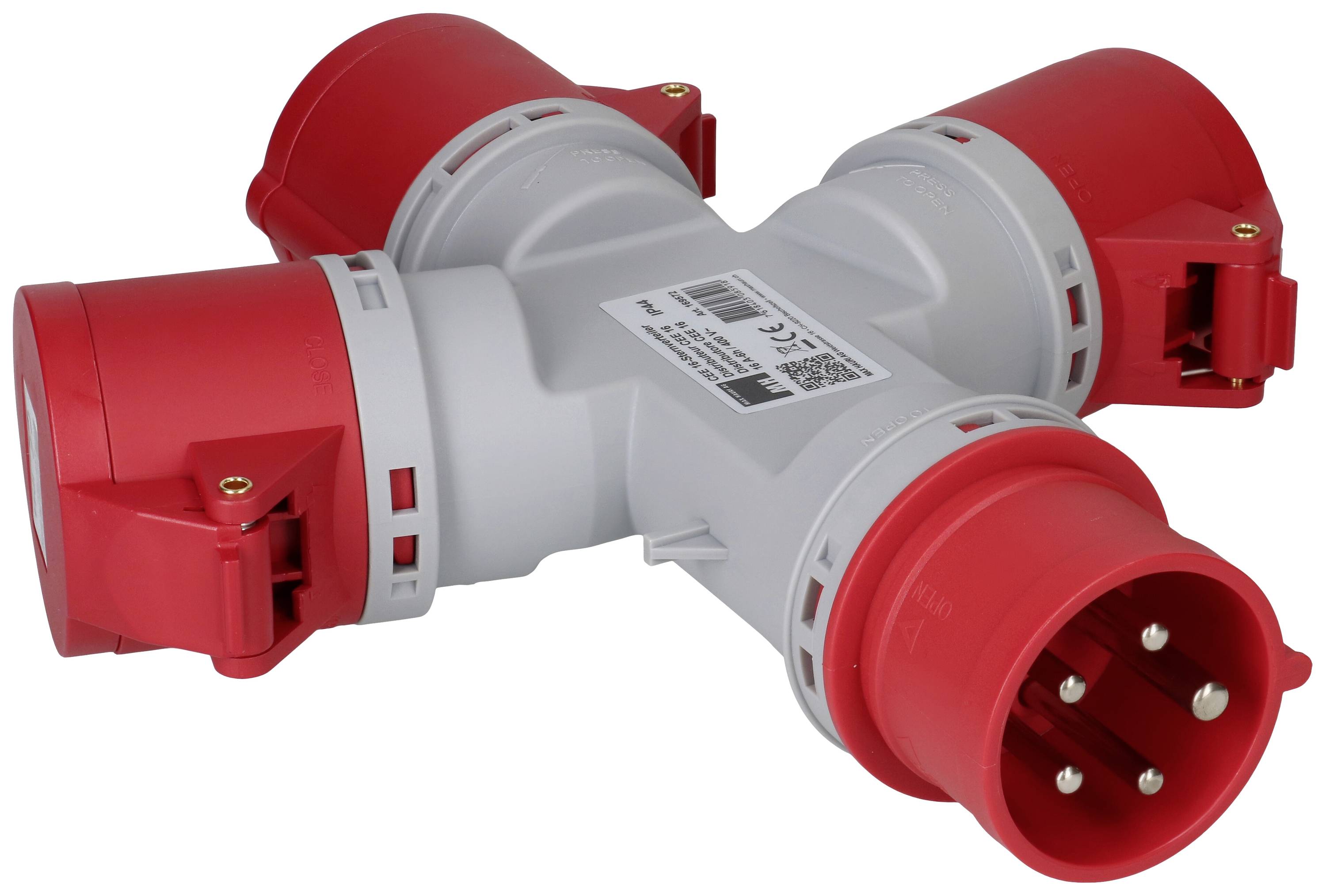

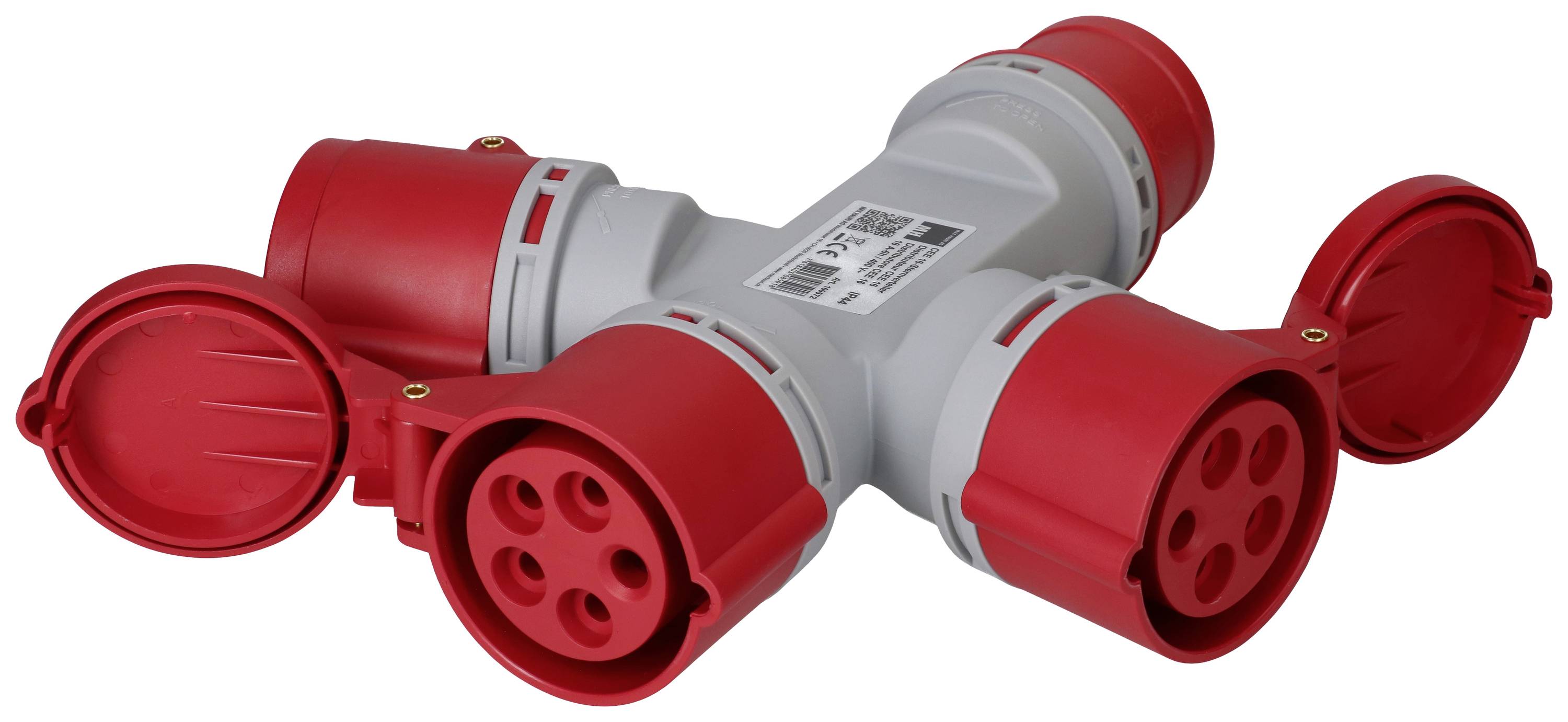

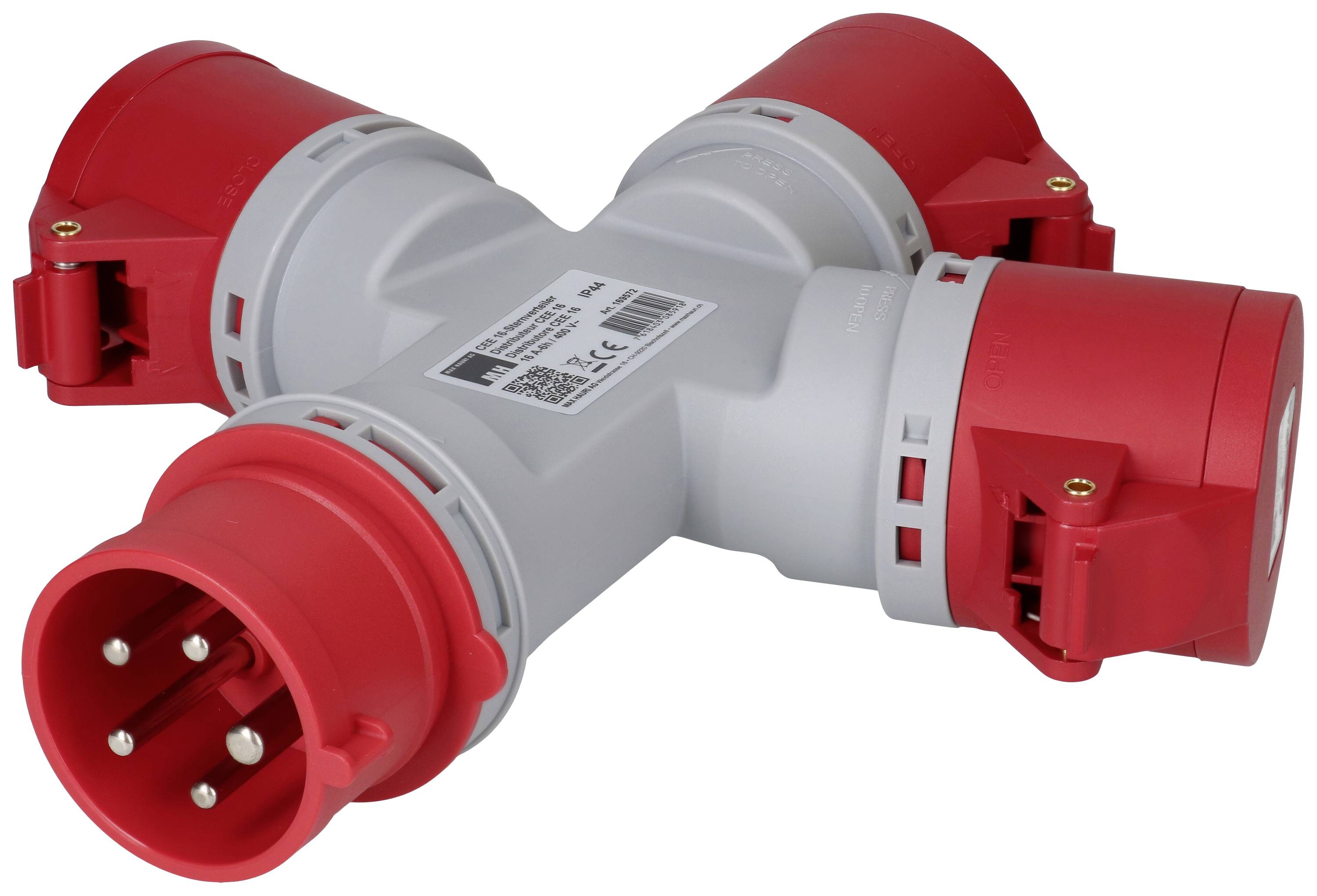

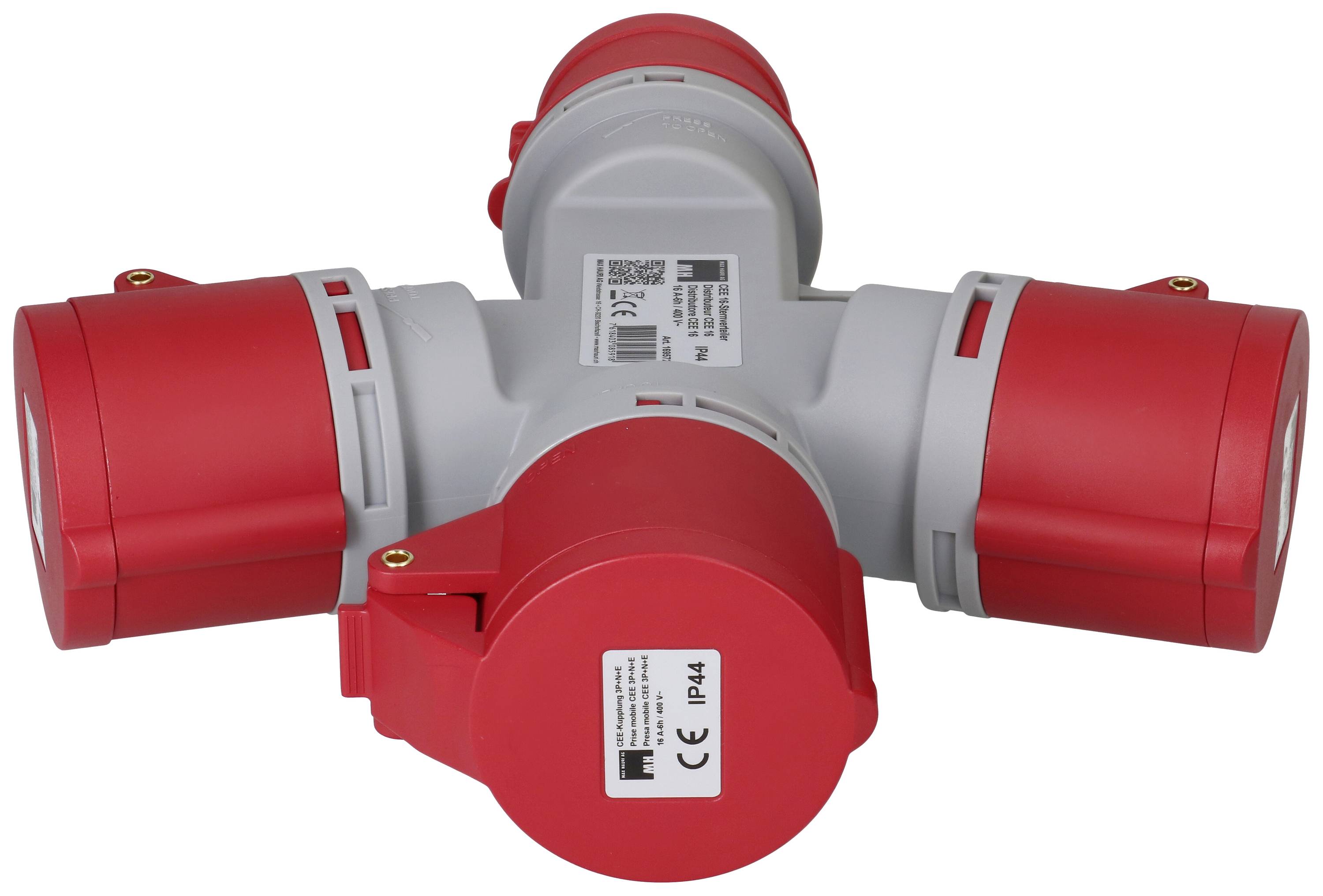

Star distributor 1x CEE16 plug, 3x CEE16 coupling, 400V, IP44
- Star distributor, red
- 1 x CEE16 plug
- 3 x CEE16 coupling
- Voltage 3 x 400 V
- Current: 16 A
- Number of pins: 5
- IP44
Technical specifications
- 3L+N+PE (5-pole)
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type A
CEE plug
- Type B
CEE connector
- Nominal output voltage
400 V
IP44
- Factory colour
Red
Grey
- Weight
0.685 kg
- Dim
(L x W x H) 248 x 240 x 62 mm
- Length
248 mm
- Width
240 mm
- Height
62 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
Description
This star distributor is the ideal solution to expand a power supply CEE 16-5 to up to three devices at the construction site, in the garden or while camping. Thus the cable laying can be minimized and the power supply is designed more efficient. The protection class IP44 comprises the protection against the penetration of smallest, solid foreign bodies (IP4X) as well as against all-sided water spray (IPX4).
