Highlights & Details

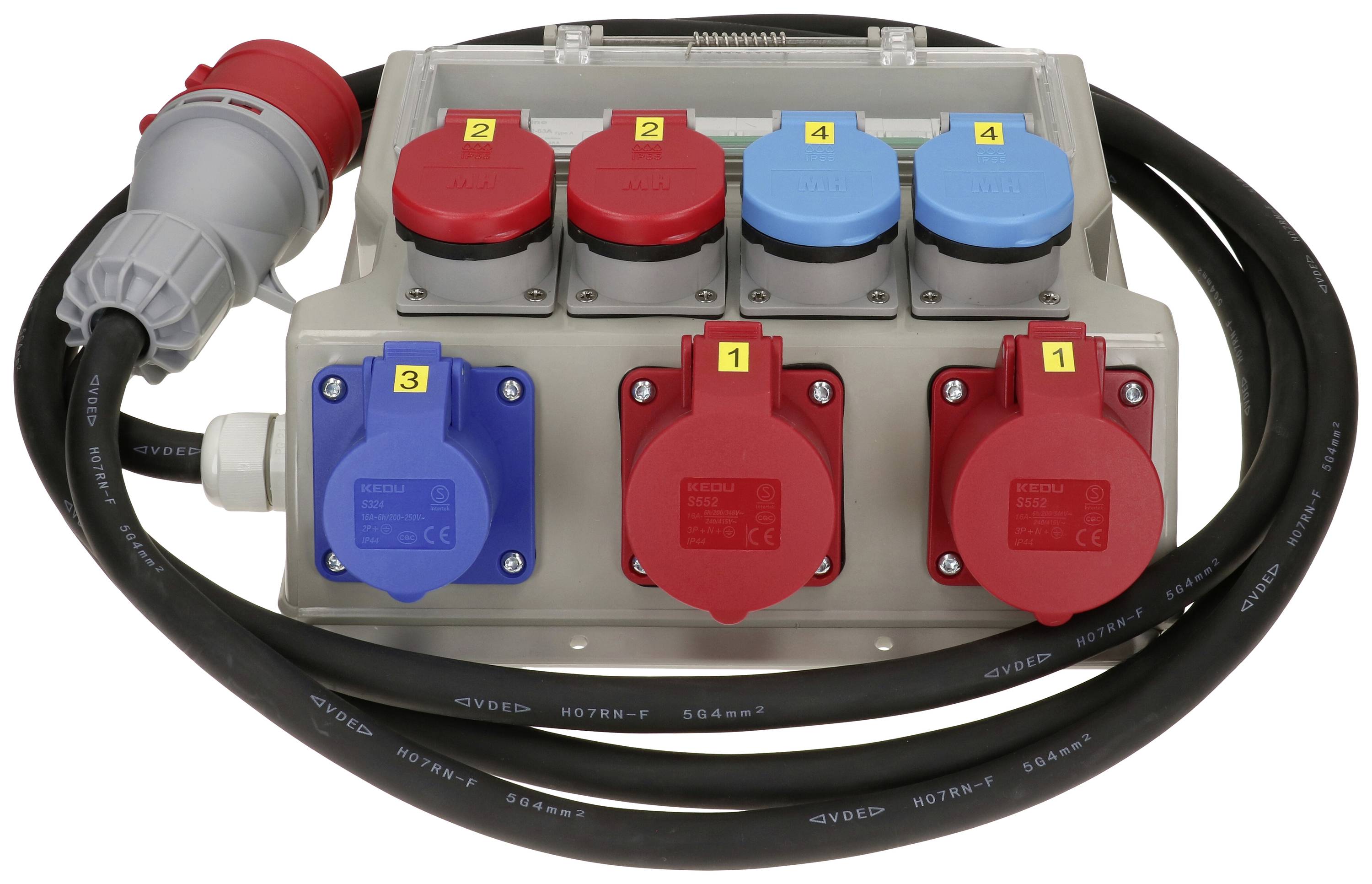

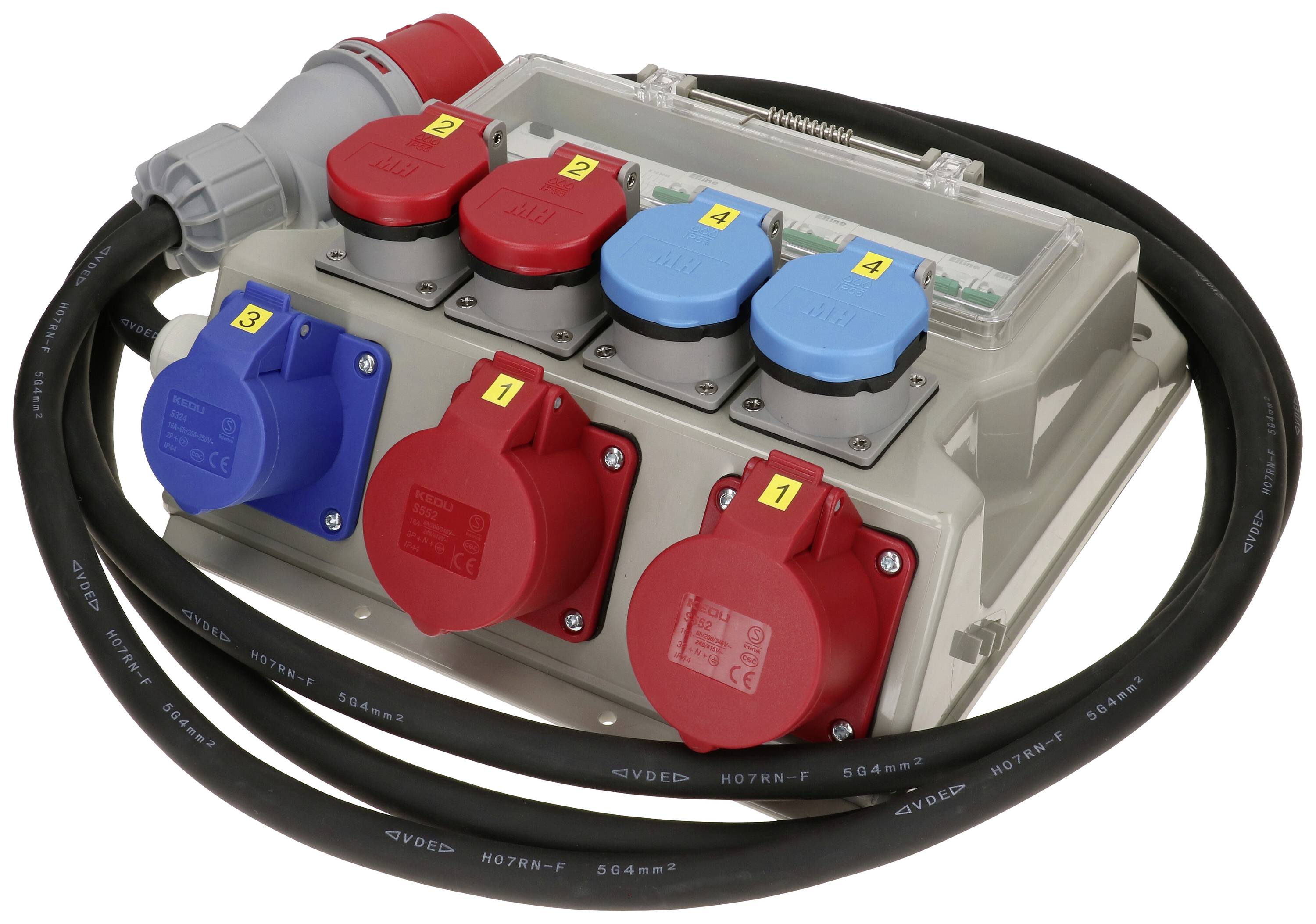

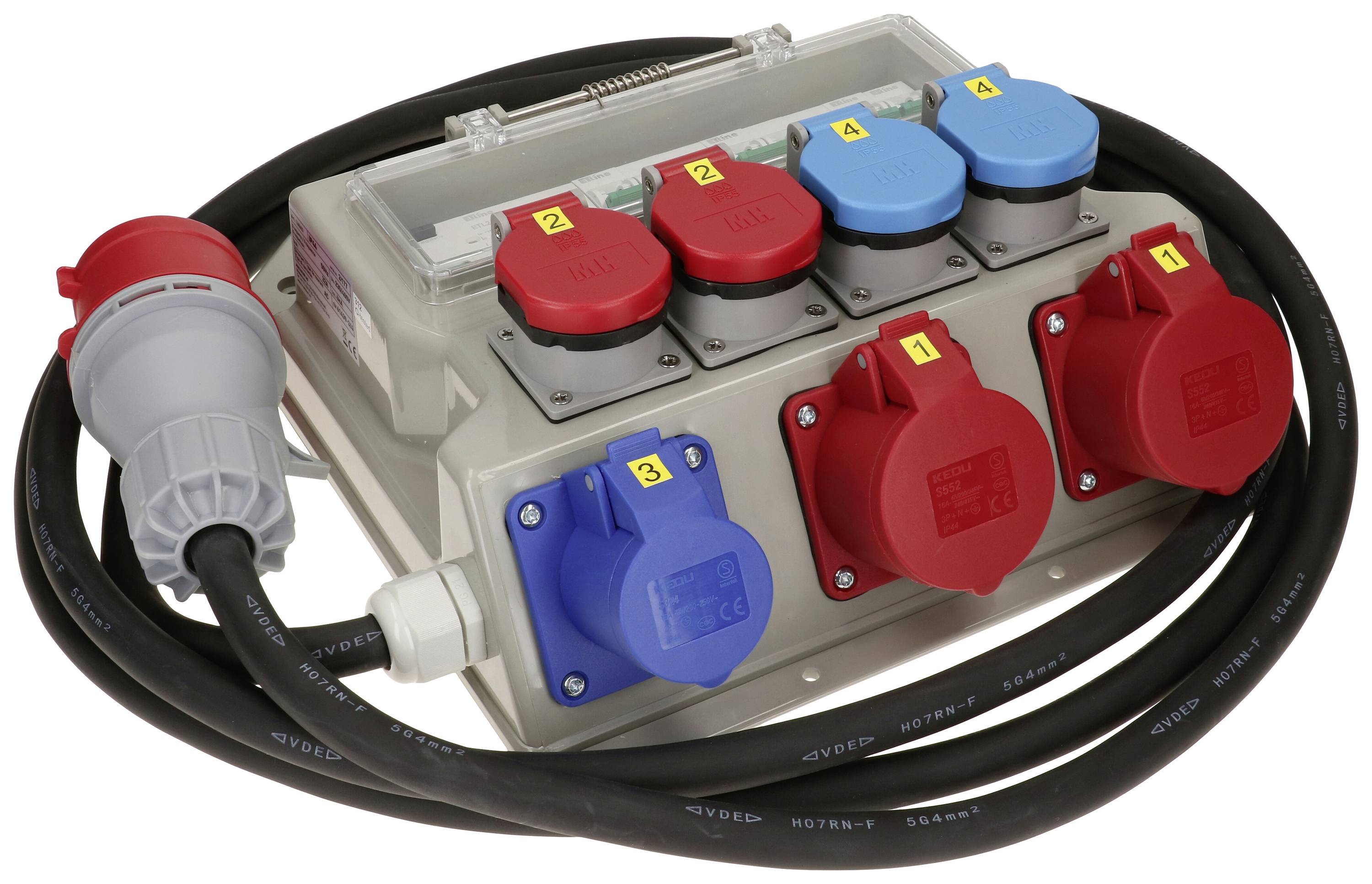

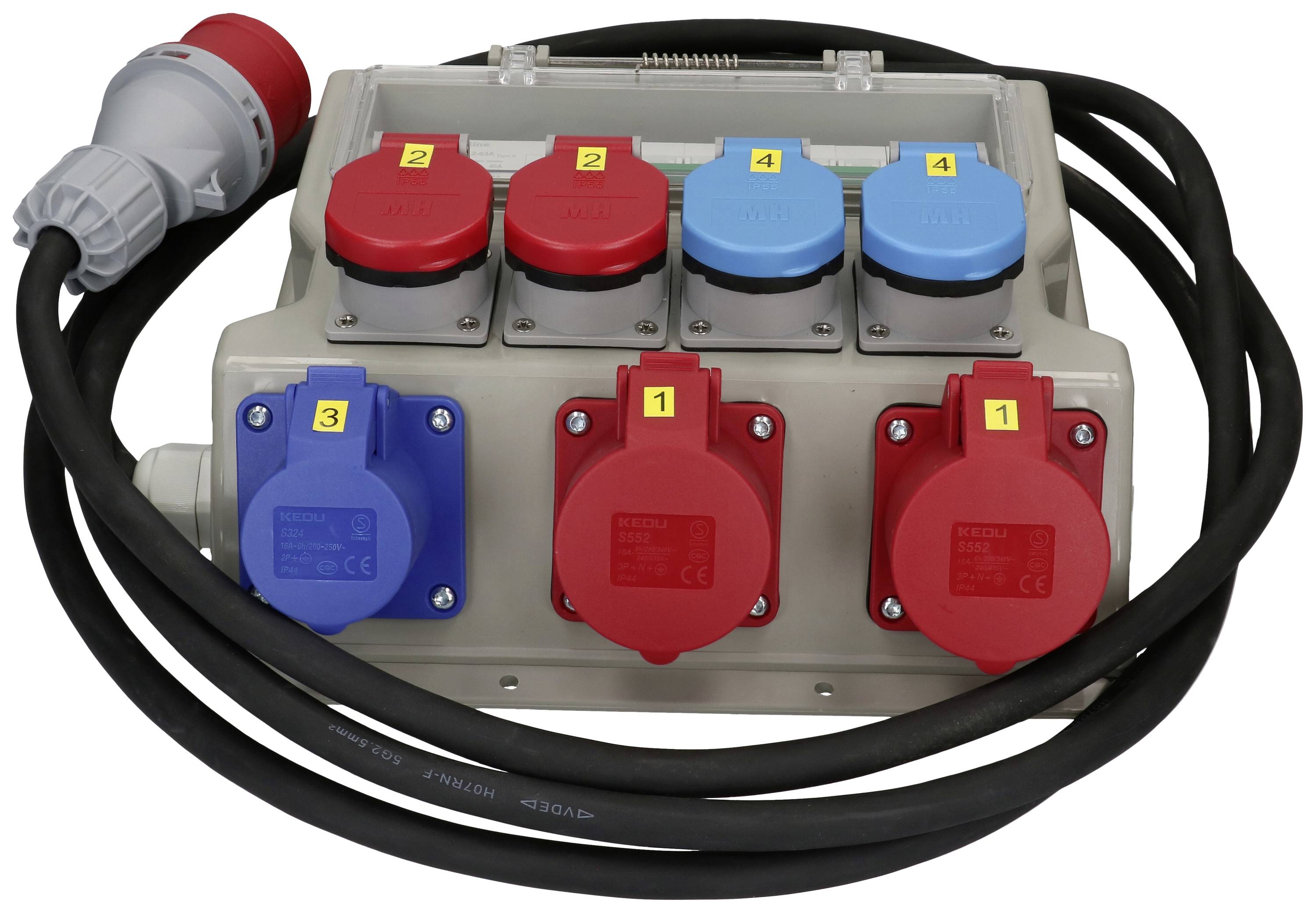

Construction current distributor CEE32 / Type 25 Type 23 FI/LS IP44 gray

Construction current distributor gray IP44 with cable
2 x CEE16-5 red, 1 x CEE16-3 blue, 2 x type 25, 2 x type 23
Flap lid

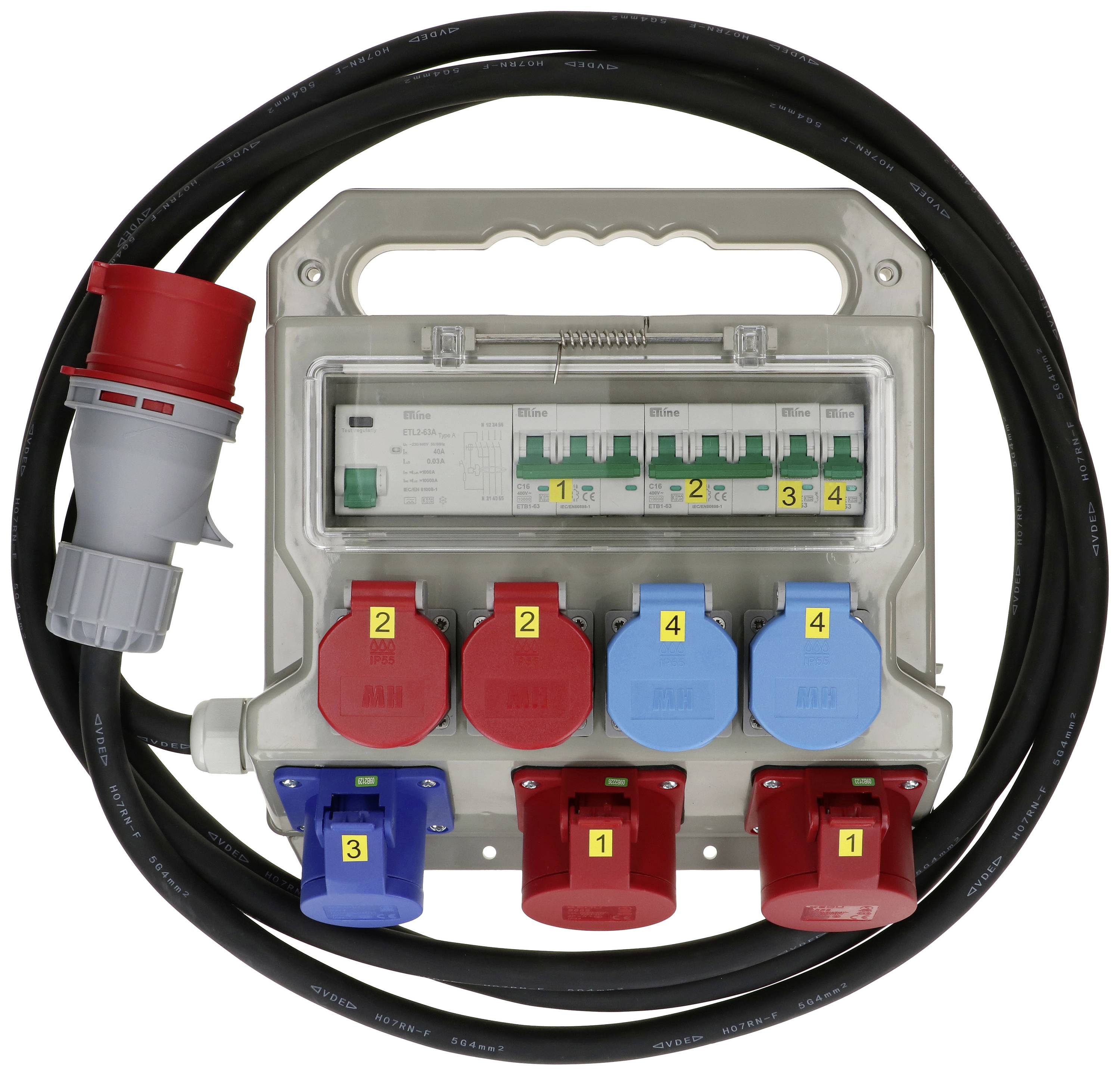

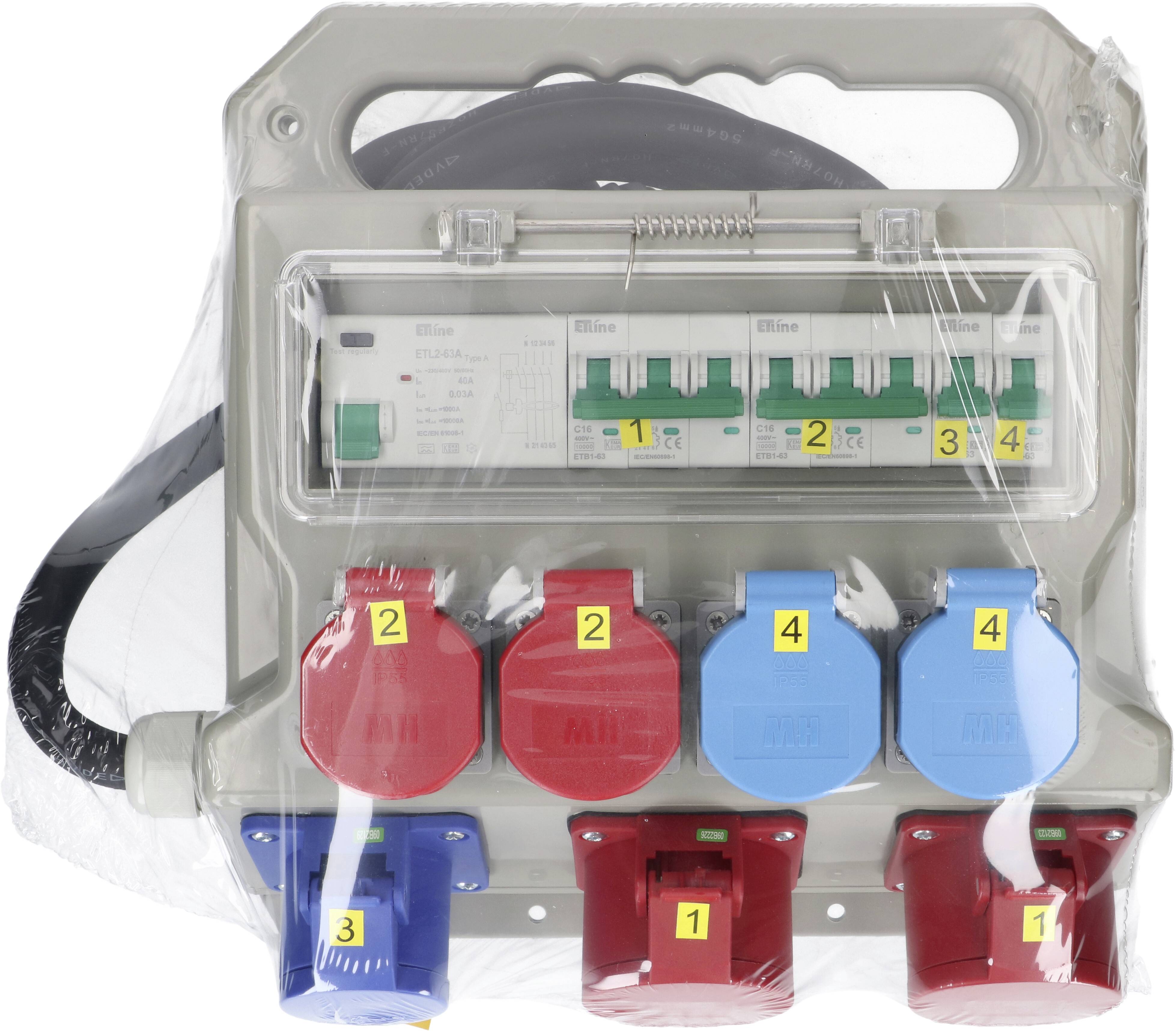

1 x FI40A mm
30 mA 3L, 2 x LS 3L 16 A, 2 x LS 1L 16 A

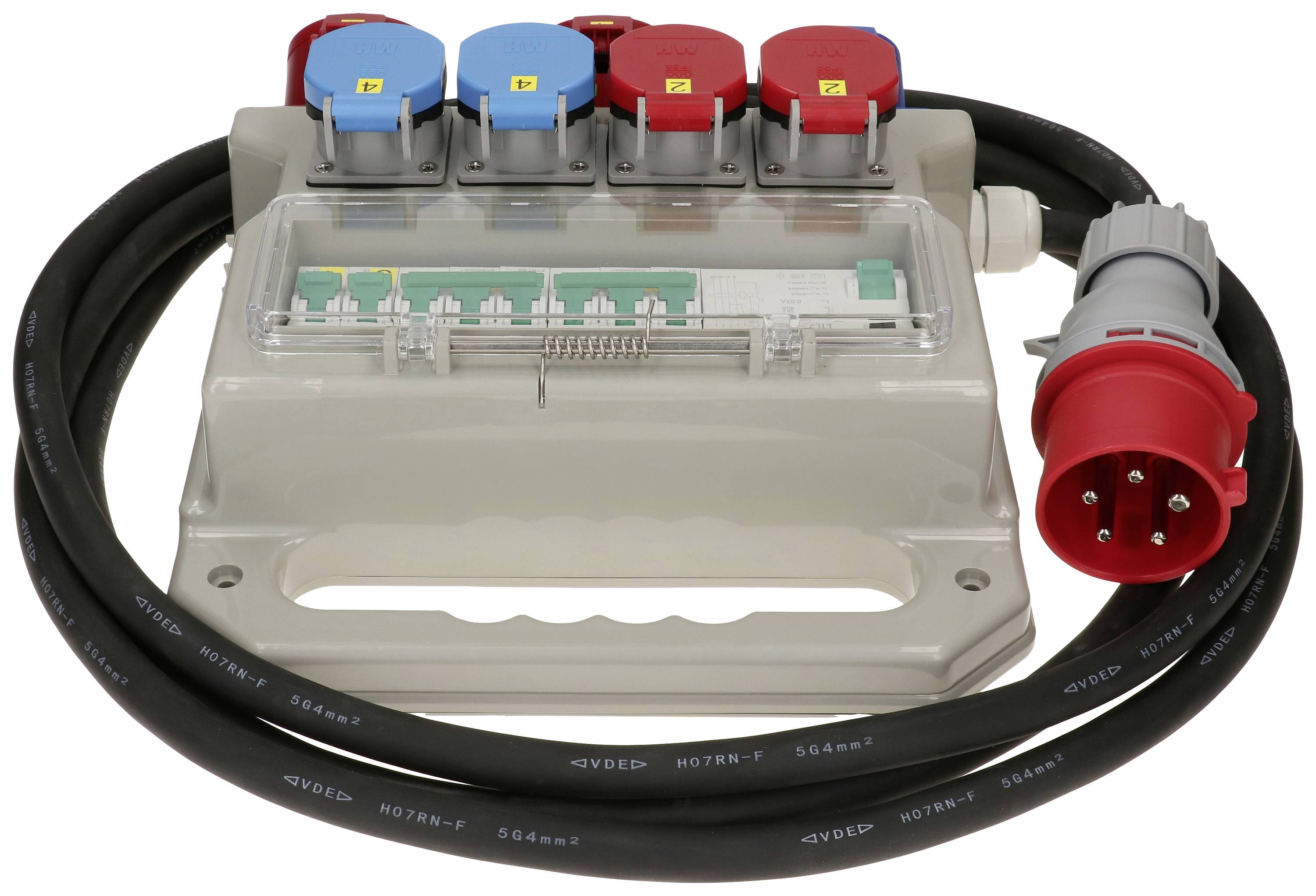

Lead: Plug CEE32-5 red H07RN-F5G4.0, 4.5 m black

Technical specifications

Plug type CEE32 -5
Socket type: CEE16 -5, CEE16 -3, Type 25 (T25), Type 23 (T23)
Number of slots: 7
Voltage 400 V
Current 32 A

Product type: Industrial power distributor

No. of CEE connectors: 1

Inputs: CEE32 -5

Outputs: 2 x CEE16-5 red, 1 x CEE16-3 blue, 2 x type 25 IP55, 2 x type 23

: IP44
IK10

Cable length: 4.5 m

Cable standard: H07RN-F 5G 4 mm²

Protection: 1 x FI40A

Factory colour: Grey
Red
Blue

Weight: 5.66 kg

Dim: (L x W x H) 305 x 295 x 130 mm

Length: 305 mm

Width: 295 mm

Height: 130 mm

Content: 1 pc(s)

Description

This construction current distributor provides sockets for 230V and 400V and convinces through its robust design. It offers two CEE16-5, one CEE16-3, two T 23 and two T 25 sockets, providing power to up to seven devices at the same time. The power distributor is equipped with an earth leakage circuit breaker to protect against electric shocks. In addition, all circuits have a separate circuit breaker to prevent all connected devices from being affected by an interruption when an electrical circuit is overloaded. The feed line is made via a CEE 32-5-connection with a H07RN-F cable of a length of 4.5 meters. The universal power distributor is suitable for mobile use thanks to its practical carrying handles, while it can also be screwed to a wall securely. Typical application areas are the industry, trade and construction. The protection class IP44 guarantees for the complete power distributor both the protection against the intrusion of solid foreign objects from 1 mm diameter (IP4X) and the protection against all-sided water spray (IPX4). This protection is valid with closed flaps as with plugged in plugs. Even after years of outdoor exposure, the supply cable does not become brittle as it is resistant to UV-rays, oil as well as water.

• Safe current distribution in harsh environments
• Approved for construction sites
• Supply line with electrical power of 32 amps
• Seven connectors: Two CEE16-5-, one CEE16-3-, two T 23-, two T 25-sockets
• Short-term hanging or long-term mounting on the wall is possible
• Built-in ground fault circuit breaker as well as separate protection of all circuits
• Effective protection against the penetration of solid foreign bodies (from a diameter of 1 mm) as well as water spray on all sides (IP44)
