Contact insert 1597867 RC-12P2N120000 Phoenix Contact Content: 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Contact inset
Connector type
Pin
Connection
Soldering
Rated voltage
150 V
Datasheet (PDF)
Technical specifications
- Mating cycles mechanical: 50
- Contact surface: Nickel-plated, gold plating
- Contact diameter of power contacts: 1 mm
- Wire cross-section power contacts max.: 1 mm²
- Rated current power contacts: 8 A.
- Insulation material: PBT
- Contact chamber numbering direction of rotation: Counter rotation
- Coding: N
- Packaging type
Piece
- Product type
Contact inset
- Connector type
Pin
- Connection
Soldering
- Rated voltage
150 V
- Test current
8 A
- Case material
PBT

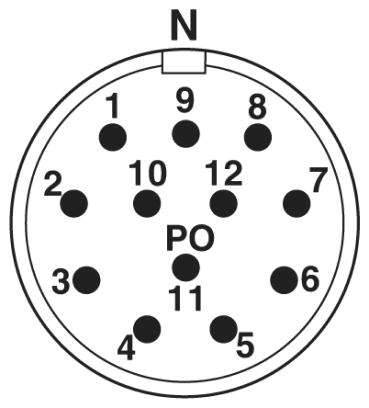

- Total no. of pins
12
- Manufacturer part #
1597867
- Content
10 pc(s)
- Contact material
CuZn
- Core diameter
1 mm
- Number of pins
12
- (Ø)
1 mm
- RoHS-compliant
Yes
- Type
RC-12P2N120000
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136929 Contact insert 1597867 RC-12P2N120000 Phoenix Contact Content: 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2136929 Contact insert 1597867 RC-12P2N120000 Phoenix Contact Content: 10 pc(s)
Description
Contact insert, number of pins: 12, contact type: Pin, solder connection
