Contact insert 1601799 RC-17S1N120000 Phoenix Contact Content: 10 pc(s)
EAN:
Part number:
Item no:
Product type
Contact inset
Mounting type
Solder lug
Connector type
Socket
Connection
Soldering
Rated voltage
150 V
Datasheet (PDF)
Technical specifications
- Mating cycles mechanical: 50
- Contact surface: Nickel-plated, gold plating
- Contact diameter of power contacts: 1 mm
- Wire cross-section power contacts max.: 1 mm²
- Rated current power contacts: 8 A.
- Insulation material: PBT
- Contact chamber numbering direction of rotation: Standard
- Coding: N
- Product type
Contact inset
- Mounting type
Solder lug
- Connector type
Socket
- Connection
Soldering
- Rated voltage
150 V
- Test current
8 A
- Case material
PBT
- Total no. of pins
17
- Manufacturer part #
1601799
- Content
10 pc(s)
- Contact material
CuZn
- Core diameter
1 mm
- Number of pins
17
- (Ø)
1 mm
- RoHS-compliant
Yes
- Type
RC-17S1N120000
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137131 Contact insert 1601799 RC-17S1N120000 Phoenix Contact Content: 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2137131 Contact insert 1601799 RC-17S1N120000 Phoenix Contact Content: 10 pc(s)
Description

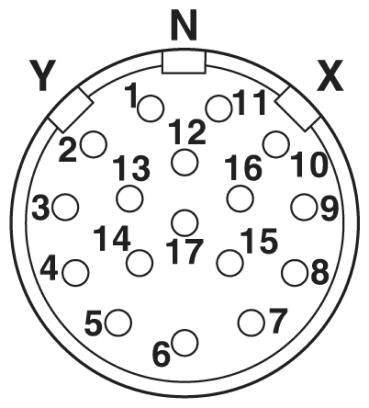

Contact insert, number of pins: 17, contact type: Socket, solder connection
