Contact insert 1602749 RC-19S1N120000 Phoenix Contact Content: 10 pc(s)
EAN:
Part number:
Item no:
Product type
Contact inset
Mounting type
Solder lug
Connector type
Socket
Connection
Soldering
Rated voltage
150 V
Datasheet (PDF)
Technical specifications
- Mating cycles mechanical: 50
- Contact surface: Nickel-plated, gold plating
- Contact diameter of power contacts: 1.5 mm
- Wire cross-section power contacts max.: 1 mm²
- Rated current power contacts: 10 A.
- Insulation material: PA66
- Nominal current per signal contact 8 A.

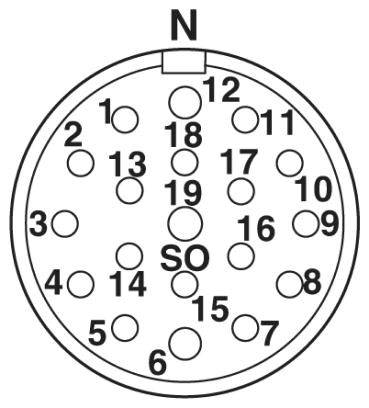

- Contact chamber numbering direction of rotation: Standard
- Coding: N
- Product type
Contact inset
- Mounting type
Solder lug
- Connector type
Socket
- Connection
Soldering
- Rated voltage
150 V
- Test current
10 A
- Total no. of pins
19
- Manufacturer part #
1602749
- Content
10 pc(s)
- Contact material
CuZn
- Core diameter
1.5 mm
- Number of pins
19
- (Ø)
1.5 mm
- RoHS-compliant
Yes
- Type
RC-19S1N120000
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137252 Contact insert 1602749 RC-19S1N120000 Phoenix Contact Content: 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2137252 Contact insert 1602749 RC-19S1N120000 Phoenix Contact Content: 10 pc(s)
Description
Contact insert, number of pins: 16+3, contact type: Socket, solder connection
